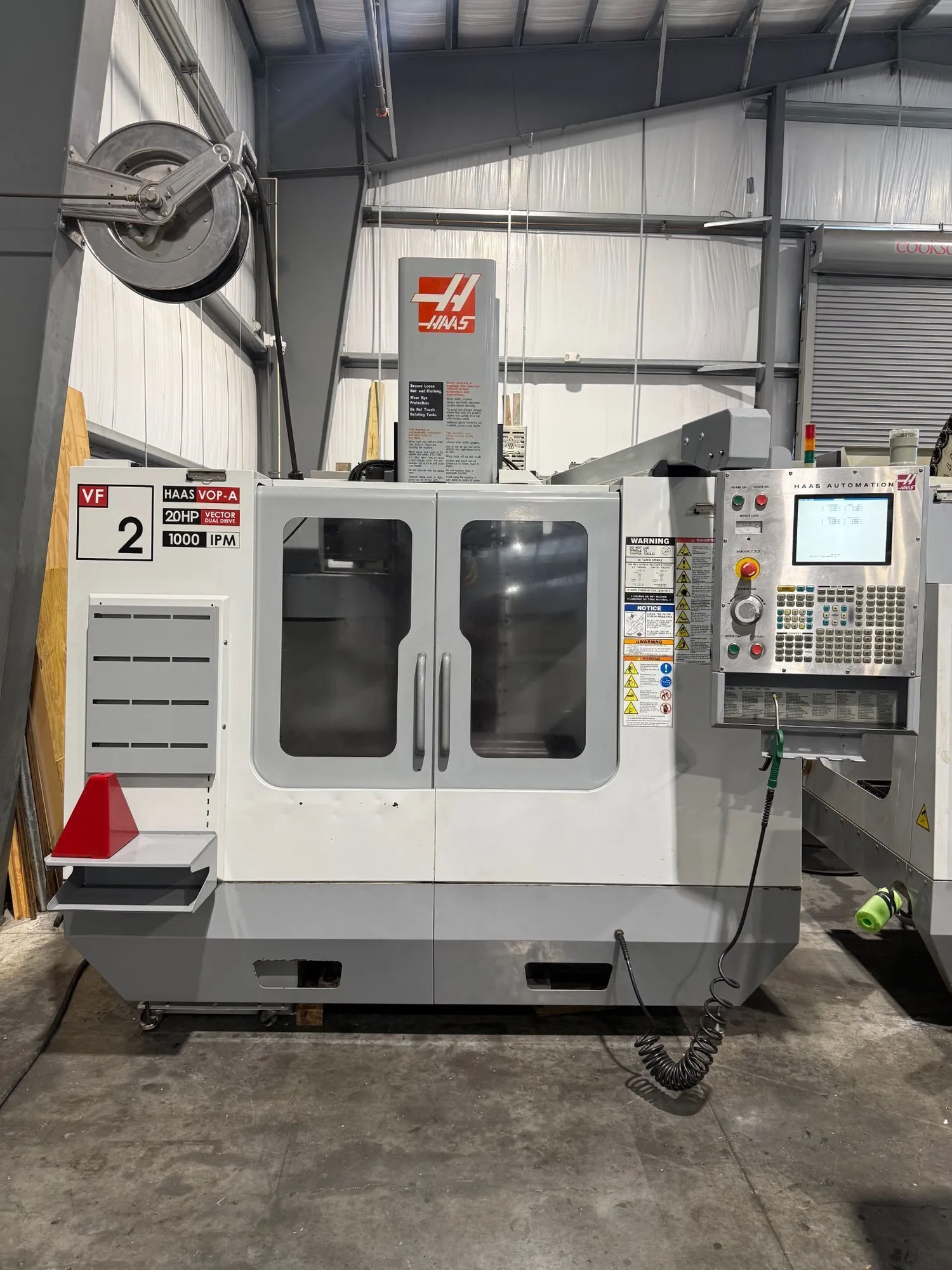

USED 2005 HAAS VF-2D

HAAS VF-2D CNC Vertical Machining Center 20 H.P. 2005’ USA #8513
Reference #8513
Model # VF-2D
Serial # 43171
Year of manufacture- 7/ 2005’
Table working surface- 14” x 36”
Table travel, X-axis (longitudinal)- 30”
Table travel, Y-axis (cross)- 16’’
Vertical column travel (Z-axis)- 20’’
Minimum/Maximum distance, spindle nose to table- 4’’/24’’
Spindle taper- CAT-40
Spindle speeds- 0 – 7500 R.P.M.
Maximum weight on table- 3,000 Lbs.
Rapid feed rate on X, Y, & Z axes- 1000 I.P.M.
Maximum cutting feed rate- 300 I.P.M.
Number of tools in changer- 20
Maximum tool diameter- 3.5”
Maximum tool weight- 12 Lbs.
