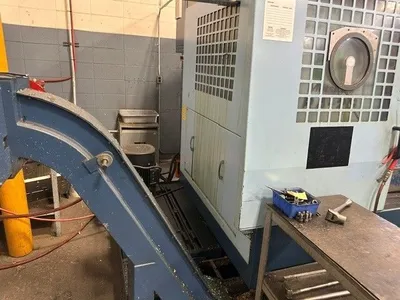

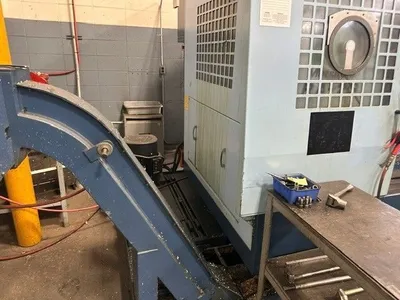

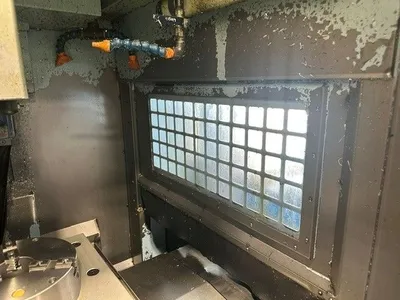

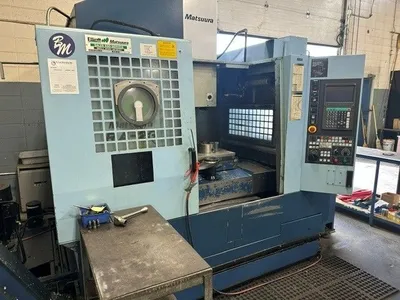

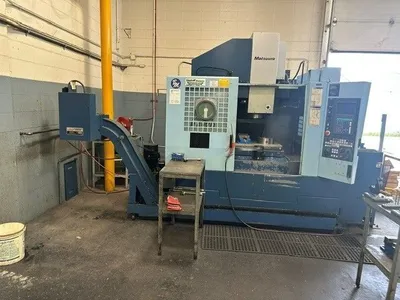

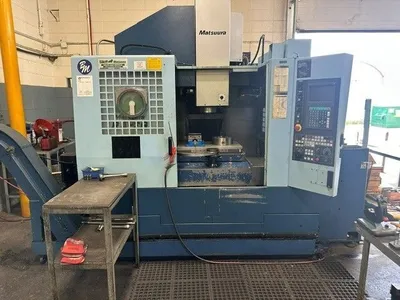

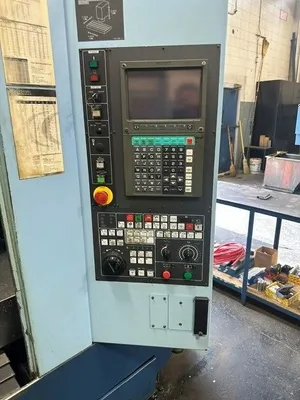

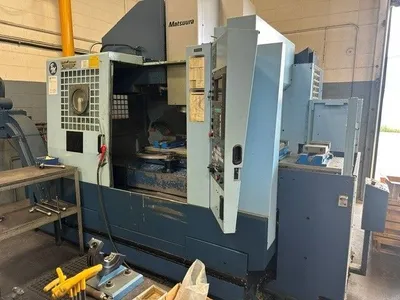

USED 2001 MATSUURA RA-2G

Specifications (subject top buyer verification):
X-Axis Travel: 26.0” (660 mm)
Y-Axis Travel: 18.11” (460 mm)
Z-Axis Travel: 19.09” (485 mm)
Spindle Nose to Tabletop: 5.9” into 25.0 in maximum
Maximum Part/Workpiece Weight: 550 to 660 lbs. (250–300 kg) per pallet

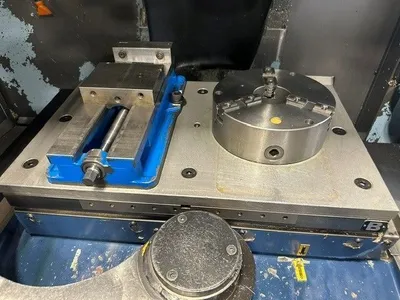

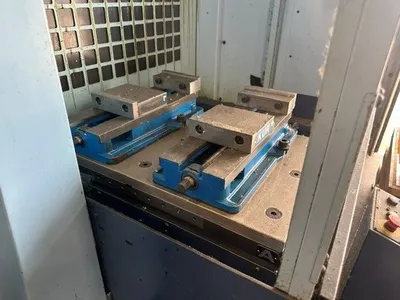

Pallet System (Twin Pallets)
Number of Pallets: 2 (Side-address shuttle style)
Pallet Dimensions: 28.3” x 17.3” (720 mm × 440 mm)
Pallet Change Time: Fully automated, rapid cam-driven system
Spindle Speed: Up to 12,000 RPM
Spindle Taper: BT 40
Automatic Tool Changer (ATC)
Tool Capacity: 30 Stations
Tool Selection Style: Side-mount twin-arm type
Tool-to-Tool Change Time: Approximately 1.8 seconds
Electrical Requirement: 200–220V / 3-Phase / 50–60Hz
Machine Weight: 9,920 to 13,500 lbs. (4,500–6,120 kg) depending on full enclosures/conveyor additions
Dimensions:
Machine Overall: 174” x 106” x 110”
Machine:112” x 106” x 110”
Conveyor: 140” x 80” x 70”
