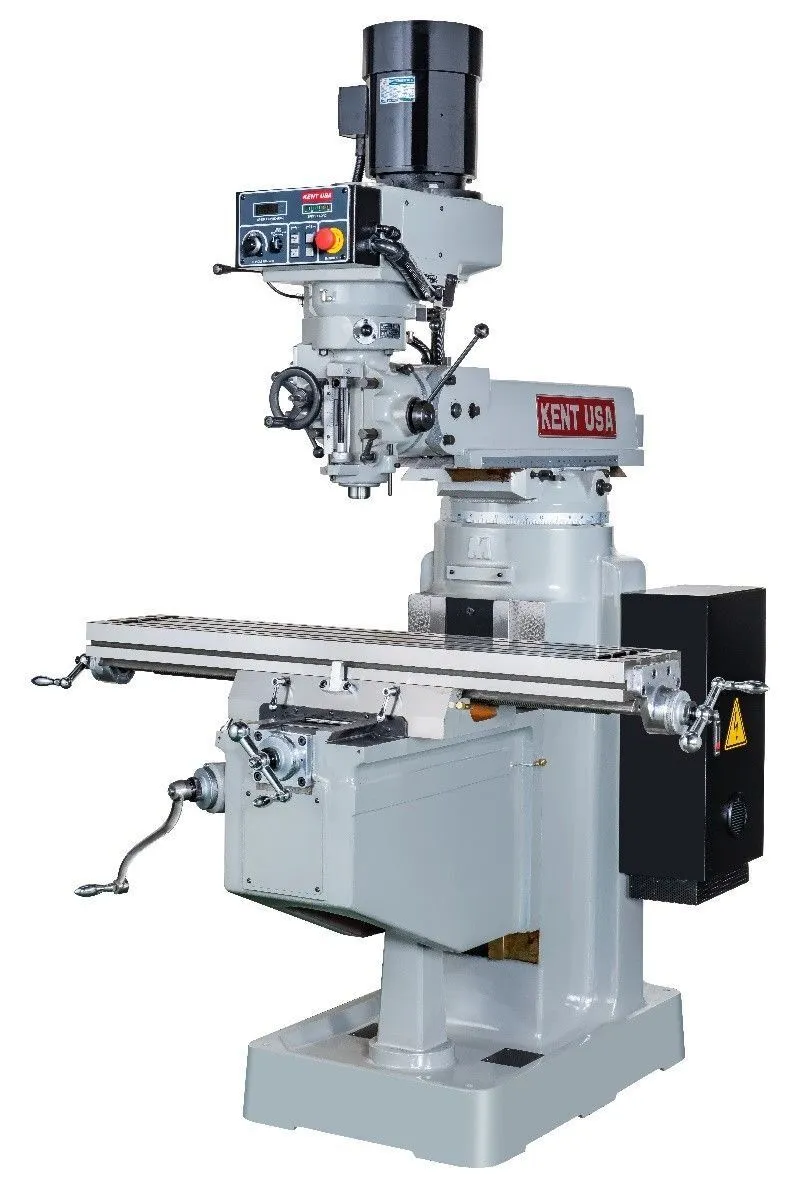

NEW 2026 KENT KTM-3VKF
Overview
• 3 HP spindle motor, 50 – 4500 rpm variable speed milling head with AC-Freq drive
• Digital spindle RPM display and real-time LED spindle load indicator bar
• Automatic spindle direction matching when switching between High/Low gear range
• 10” x 50” table, hardened and ground for long-lasting performance
• T-slots ground parallel to table ways for easy and precise set ups
• Precision ground lead screws with backlash compensating double nut
• Meehanite casting with built-in coolant reservoir in machine base
• Interlocked UL breaker switch on electrical cabinet
• Automatic centralized one-shot lubrication system with metered check-valves
Specs
MACHINE CAPACITY
Table Size: 10" x 50" (Optional: 10" x 54")
Table Travel (X-Axis): 35"
Saddle Travel (Y-Axis): 15.25"
Knee Travel (Z-Axis): 15"
Quill Travel: 5"
Ram Travel: 22"
Table Load Capacity: 850 lbs, distributed
T-Slots (Qty. x Width): 3 x 5/8"
MILLING HEAD
Spindle Motor: 3 HP, inverter-duty
Spindle Taper: R-8 (Optional: NMTB-30)
Spindle Speed Range: 50 – 550 - 4,500 RPM, 2 ranges (Hi/Lo)
Quill Diameter: 3.375"
Quill Power Feed: 0.0015 / 0.003 / 0.006 IPR
Drilling Capacity, Manual: Ø 0.75"
Drilling Capacity, Power Feed: Ø 0.37"
Boring Capacity: Ø 6.0"
Milling Capacity: 2.0 in³/min
Head Rotation: ±90°
Head Tilt: ±45°
UTILITY
Power Requirement: 220V / 3PH / 10A
Single-Phase Power: 220V / 1PH / 15A
Optional Power: 440V / 3PH / 5A
Coolant Reservoir: 3 gal
Lubrication Tank: 0.5 gal
Note: The AC frequency drive accepts 220V single-phase power without requiring a phase converter, making it suitable for facilities with only single-phase power. Higher amperage is required when operating on single-phase power.
WEIGHT & DIMENSIONS
Machine Weight: 3,100 lbs
Shipping Weight: 3,200 lbs
Packing Dimensions: 76" x 76" x 88" (skid)
