USED 2001 KINGSTON HD-2260
Overview

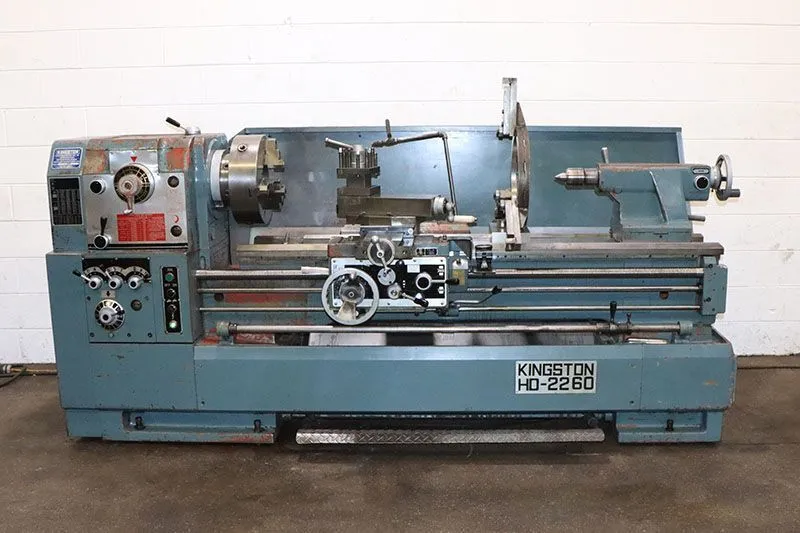

2001 Kingston HD-2260 Gap Bed Engine Lathe, offering 22"/31" swing and 60" centers. Equipped with 15" 3-jaw chuck, steady rest, coolant system, and more. 10 HP motor delivers up to 1200 RPM. Ideal for precision machining. Located in NJ warehouse.
Specs
SWING OVER BED........................ 22"
SWING OVER CROSS SLIDE................ 13"
SWING IN REMOVABLE GAP................ 30-7/8"
SPINDLE NOSE CAMLOCK.................. D1-8"
HOLE THROUGH SPINDLE.................. 4-1/16"
DISTANCE BETWEEN CENTERS.............. 60"
SPINDLE SPEED RANGE (12).............. 13 - 1200 RPM
LONGITUDINAL FEED RANGE ............. .0012" - .039" IPR
CROSS FEEDS HALF OF LONGITUDINAL SETTING
ENGLISH THREADING RANGE .............. 1 - 72 TPI
METRIC THREADING RANGE ............... .2 - 14 M
TAILSTOCK SPINDLE DIAMETER............ 2-15/16"
TAILSTOCK SPINDLE TRAVEL.............. 7"
TAILSTOCK SPINDLE TAPER............... #5MT
APPROXIMATE FLOOR SPACE............... 55"W x 114" L
APPROXIMATE WEIGHT.................... 5,500 LBS.
Equipped With
- INCH & METRIC THREADING CAPABILITY
- 15" 3-JAW CHUCK
- STEADY REST
- FOURWAY TURRET TOOLPOST
- THREAD DIAL INDICATOR
- TRAV-A-DIAL FOR LONGITUDINAL CARRIAGE TRAVEL
- LIVE CENTER FOR TAILSTOCK
- TWO SPEED TAILSTOCK
- COOLANT SYSTEM WITH REMOVEABLE CHIP PAN
- SPLASH GUARD
- FOOT BRAKE
- HARDENED & GROUND BEDWAYS
- 10 HORSE POWER MAIN DRIVE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
