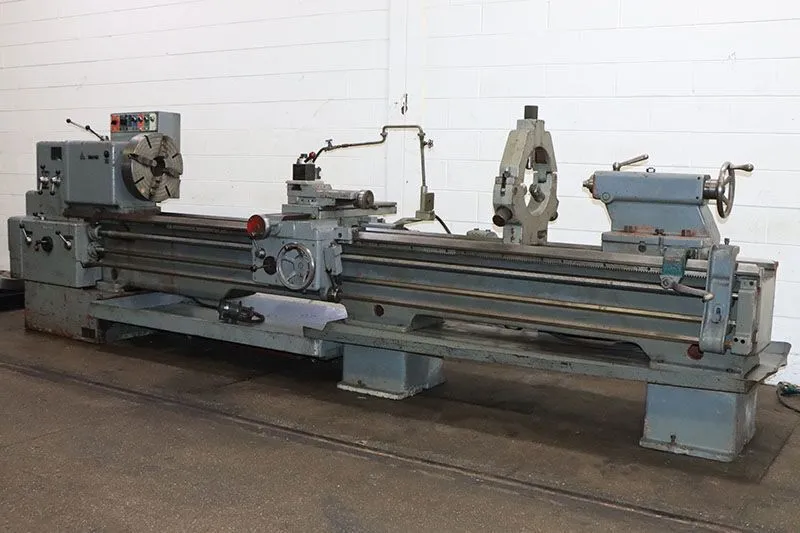

USED 1973 TOS SN63B
Overview
1973 TOS SN63B Lathe available with a removable gap bed. Featuring 25"/34.5" x 120" dimensions, dual chuck options, micrometer carriage stop, and 38 feed changes. Equipped with hardened and ground bedways, a robust 10 HP main motor, and convenient controls.
Specs
SWING OVER BED & CARRIAGE WINGS ........... 25"
SWING OVER CROSS SLIDE .................... 13.5"
SWING OVER GAP ............................ 34.5"
LENGTH OF GAP FROM SPINDLE NOSE ........... 15.25"
DISTANCE BETWEEN CENTERS .................. 120"
WIDTH OF BED .............................. 18"
SPINDLE SPEEDS (16) ....................... 10 - 1,000 R.P.M.
SPINDLE HOLE .............................. 2.75"
SPINDLE TAPER ............................. D1-8"
HEADSTOCK SPINDLE CENTER TAPER ............ NO. 5 MORSE
FEED CHANGES (38):
LONGITUDINAL ........................ .002 - 0.242 IPR
CROSS ............................... .001 - 0.121 IPR
THREADS-INCH .............................. 1 TO 80 T.P.I.
THREADS-METRIC PITCH ...................... 0.5 - 4.0 MM
TAILSTOCK SPINDLE DIAMETER ................ 3.5"
TAILSTOCK SPINDLE TRAVEL .................. 9.5"
TAILSTOCK SPINDLE CENTER TAPER ............ NO. 5 MORSE
APPROXIMATE DIMENSIONS .................... 200" x 60" x 62"
APPROXIMATE WEIGHT ........................ 10,500 LBS.
Equipped With
- REMOVABLE GAP BED
- HARDENED AND GROUND BEDWAYS
- QUICK CHANGE GEARBOX WITH INCH/METRIC THREADING CAPABILITY
- TAPER TURNING ATTACHMENT
- 3-JAW ROHM CHUCK
- 4-JAW ROHM CHUCK
- FACEPLATE
- FOLLOW REST
- 12" DIAMETER CAPACITY THREE POINT ROLLER-TYPE STEADY REST
- QUICK CHANGE TOOLPOST WITH TWO HOLDERS
- MICROMETER CARRIAGE STOP
- THREADING DIAL
- REMOVABLE CHIP PAN
- 1 HORSE POWER RAPID TRAVERSE MOTOR
- 10 HORSE POWER MAIN DRIVE MOTOR AND ELECTRICAL CONTROLS
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
CONDITION: **** EXCELLENT ****
