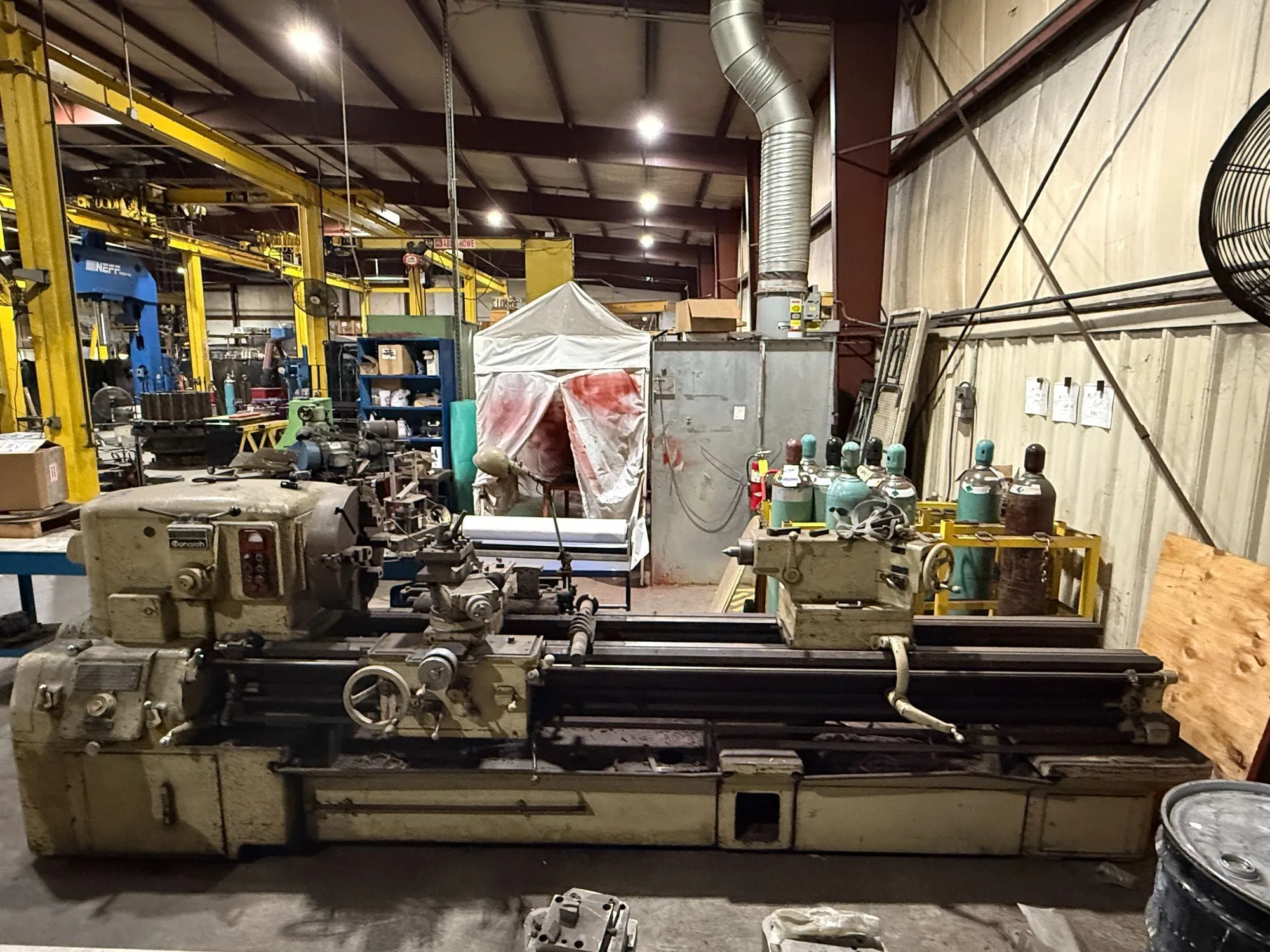

1967 MONARCH 612 19'' X 96'' ENGINE LATHE
MANUFACTURER: MONARCH
MODEL: 612
SERIAL NO.:48593
MFG DATE: 02/1967
POWER: 440V 3PH 60HZ
Swing: 28''
Centers span: 96''
Spindle through-hole: ~2.06''
Spindle nose & speeds: D1‑6 camlock, 12–1,500 RPM
Threading range: 2–120 TPI
Feed rates: 0.001–0.068 in/rev
19'' 3 JAW CHUCK
MACHINE WEIGHT: 13775 LBS
MACHINE DIMENSIONS: 188'' X 56'' X 60''
| Dimensions | 188 X 56 X 60 | 188 X 56 X 60 |
| Weight | 13775 | 13775 |
1967 MONARCH 612 19" X 96" ENGINE LATHE
MANUFACTURER: MONARCH
MODEL: 612
SERIAL NO.:48593
MFG DATE: 02/1967
POWER: 440V 3PH 60HZ
Swing: 28''
Centers span: 96''
Spindle through-hole: ~2.06''
Spindle nose & speeds: D1‑6 camlock, 12–1,500 RPM
Threading range: 2–120 TPI
Feed rates: 0.001–0.068 in/rev
19'' 3 JAW CHUCK
MACHINE WEIGHT: 13775 LBS
