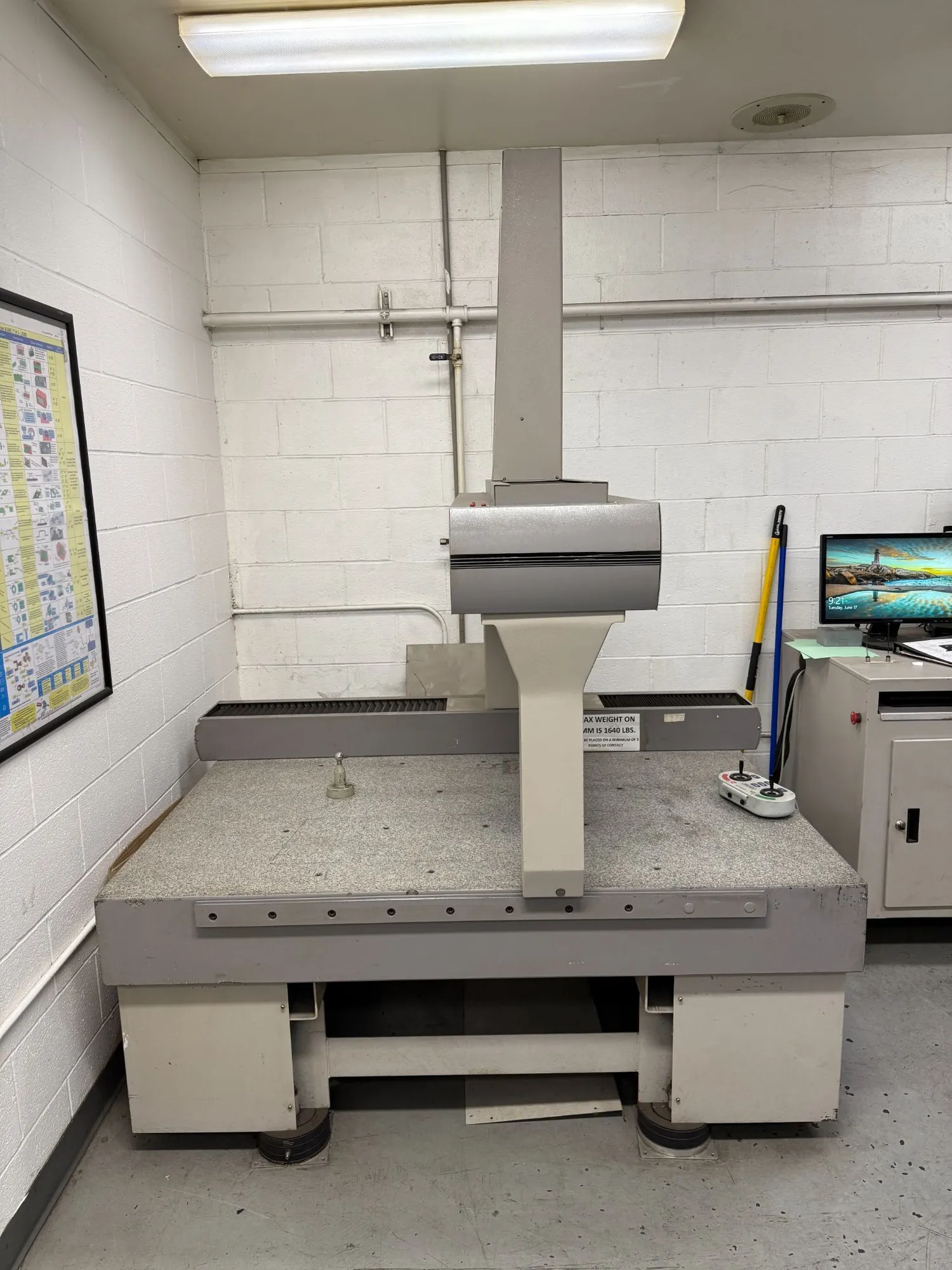

2004 HELMEL MICROSTAR 430-202 DCC CMM
Manufacturer: HELMEL
Model: MICROSTAR 430-202 DCC
Serial No.: 30-60
POWER: 120 - 230 VAC, 50-60Hz, 20A
TABLE SIZE: 66'' X 36''
Measuring Range:30″ × 40″ × 20″ (750 × 1000 × 500 mm)
Resolution: 0.00002″ (0.5 μm)
Repeatability: 0.00011–0.00014″ (2.8–3.6 μm)
Volumetric Acc.: 0.00044–0.00064″ (11.2–16.3 μm)
Linear Acc.: 0.00011″ + 0.000007″/in (2.8 μm + L/143)
Max Speed: 600 mm/s (24″/s)
Max Acceleration: 1500 mm/s² (60″/s²)
Controller: DCC with 3-axis joystick
Software: GEOMET 101+ DCC
Hardware: LCD, pull-out keyboard, current computer
Base/Table: Granite with clamping inserts
MACHINE DIMENSIONS: 68'' X 50'' X 95''
| X | 30" | 762 mm |
| Y | 40" | 1,016 mm |
| Z | 20" | 508 mm |
| Dimensions | 68'' X 50'' X 95'' | 68'' X 50'' X 95'' |
