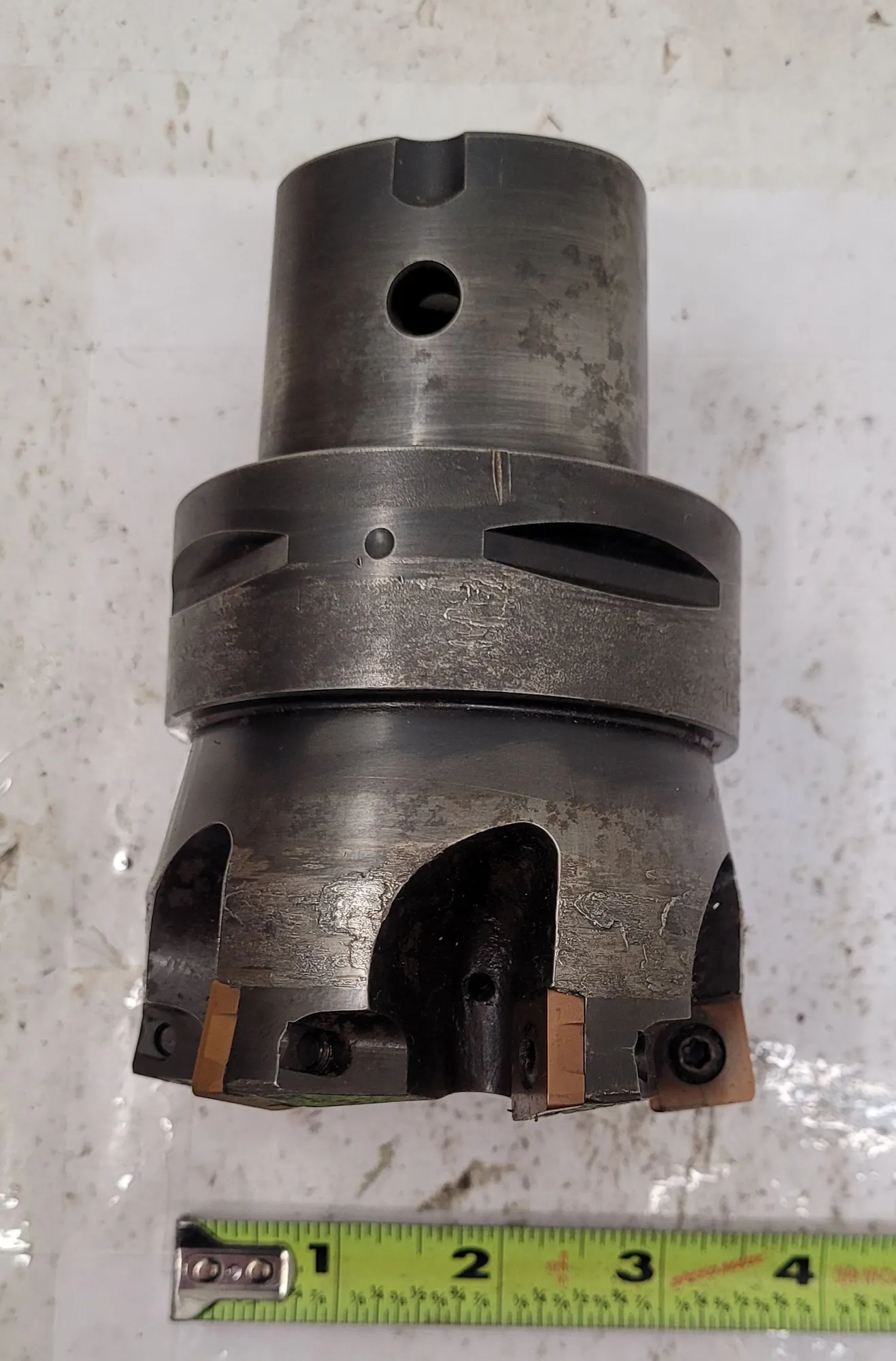

USED Sandvik Coromant R210-086C8-14H

Sandvik CoroMill 210 R210-086C8-14H face mill cutter available. Used condition. Max 14700 RPM, 2.4409" cutting diameter, 10° edge angle, 6 cutting items, clamp with screw, ideal for professional tooling needs.

SANDVIK CoroMill 210 Face Mill Cutter R210-086C8-14H

USED

MAX 14700 rpm
Part Number: R210-086C8-14H
Tool cutting edge angle (KAPR): 10 °
Cutting diameter (DC): 2.4409 inch
Maximum cutting diameter(DCX): 3.3858 inch
Cutting item count(CICT_2): 6
Clamping type code(MTP): clamp with screw through hole
Depth of cut maximum(APMX_EFW): 0.5118 inch
Depth of cut maximum(APMX_FFW): 0.0787 inch
Maximum ramping angle (RMPX): 2.2 °
Maximum plunge depth(AZ) : 0.0787 inch
Hand (HAND)info: Right
Functional length(LF): 3.1496 inch
Body diameter(BD): 3.2146 inch
Body length(LB): 3.1496 inch
