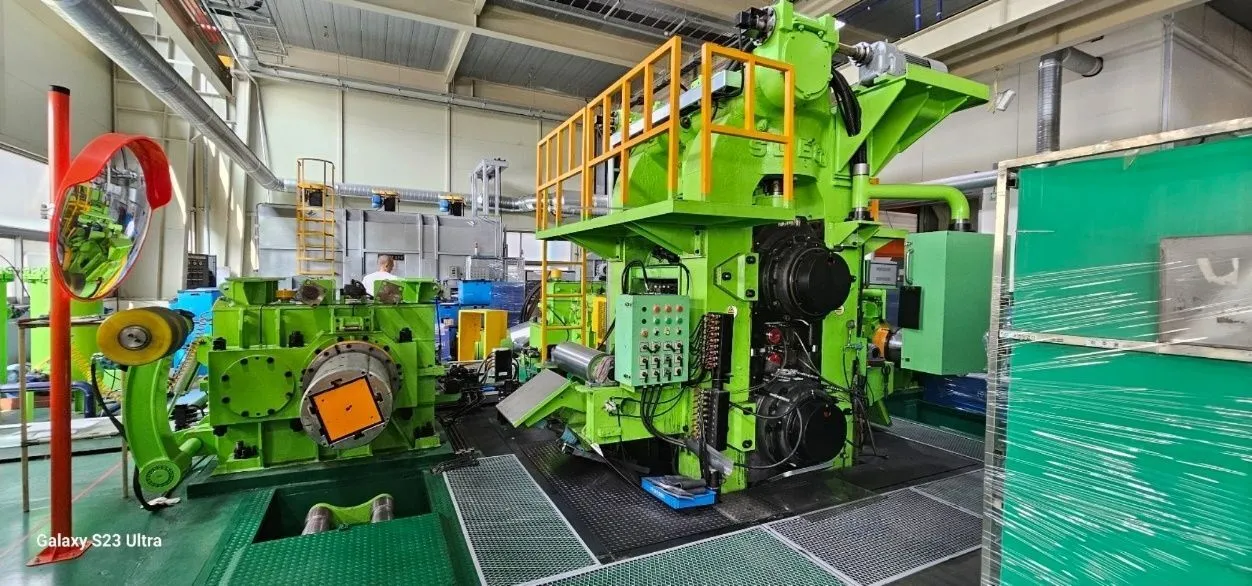

USED Sueco 4-Hi Cold Rolling Mill

Manufacture:
- Sueco (Korea)
- New in
- Full refurbishing in 2023

Material:
- Aluminum alloys - 1xxx, 3xxx, 5xxx, 6xxx

Strip Width:
- 400 - 650mm (15.75" - 25.6")
- This mill typically runs 650mm max finished coil (25.6")

Strip Thickness:
- 2.0mm - 0.05mm (.080" - .002")
- This mill typically runs 0.1mm (.004") material

Coil Size:
- ID - 508mm (20")
- OD - 1500mm (59")
- Weight - 5000kg (11,000lbs)

Mill Speed:
- 300 mpm (984 fpm)

Mill Drive:
- Driving work rolls
- 300 kW motor
- 3.5:1 gearbox ratio
- 0 - 600/1800 rpm

Uncoiler:
- 90 kW motor, 0 - 600/1800 rpm

Recoiler:
- 110 kW motor, 0 - 600/1800 rpm

Roll Size:
- Work Rolls - 200mm max diameter, 180mm min diameter x 740mm face
- Backup Rolls - 650mm max diameter, 630mm min diameter x 720mm face

PART OF AN ENTIRE FACILITY (rolling mill, tension leveler, cut-to-length line, slitting line, etc.) PRODUCING THIN STRIP. PLEASE ENQUIRE ABOUT THE OTHER MAJOR EQUIPMENT. BUYER CAN PURCHASE THE ENTIRE PLANT OR INDIVIDUAL LINES.
