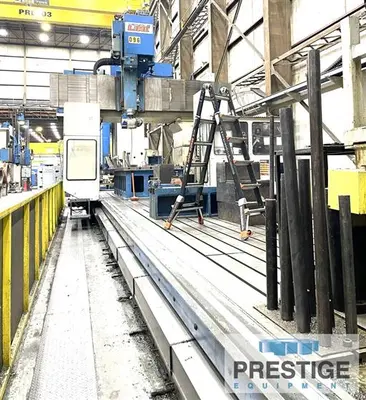

USED 1997 HENRI LINE GICAMILL 29 LS/3
Overview
Specifications
| X-Axis | 551" | 13,995 mm |
|---|---|---|
| Y-Axis | 135" | 3,429 mm |
| Z-Axis | 49" | 1,244.6 mm |
| RPM | 3,000 RPM | 3,000 RPM |
| Table-W | 98" | 2,489.2 mm |
| Table-L | 629" | 15,977 mm |
CAPACITY:
Gantry Travel, X-Axis: 551"
Head Travel, Y-Axis: 135"
Ram Stroke, Z-Axis: 49"
Height Under Rail w/ out Riser: 68.7"
Height Under Rail w/ Riser: 104.4"
C-Axis: 0-360 degrees
A-Axis: +/- 110 Degrees
Spindle Motor: 50 HP (37 KW)
Spindle Taper: CAT 50
Table Size, T-Slotted: 629" x 98"
Distance Between Columns: 120"
Spindle Speeds, Max (2-Range): 3000 RPM
Low Speed Range: 0-899 RPM
High Speed Range: 900-3000 RPM
Floor Space: 629" x 98"
Machine Height w/ Riser: 243"
Machine Height w/out Riser: 207"
Equipped With:

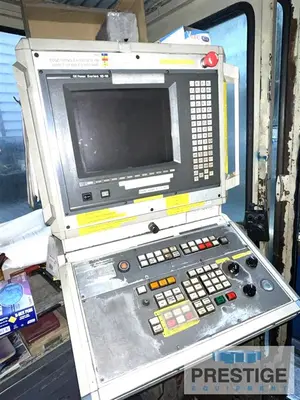

Fanuc 15M-B CNC Control

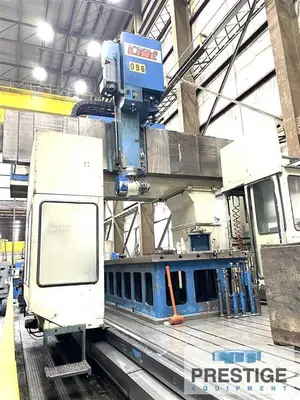

Traveling Gantry Design

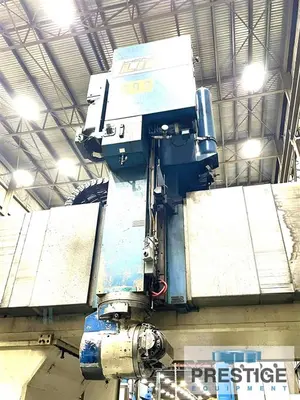

2-Axis RM40 Head
629" x 98" T-Slotted Table
Note:
Inspect In Plant Under Power!

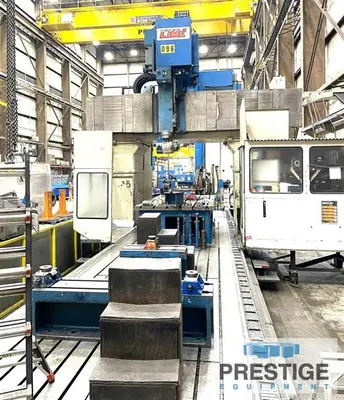

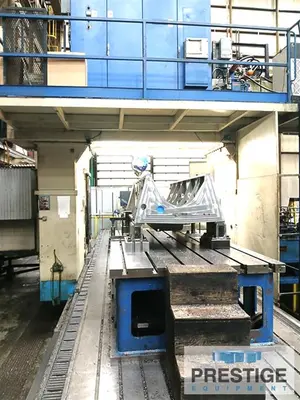

Fixture/Riser tables in photos are not included
Features:
Fanuc 15M-B CNC Control
Traveling Gantry Design
2-Axis RM40 Head
Fixed Rail
629" x 98" T-Slotted Table
