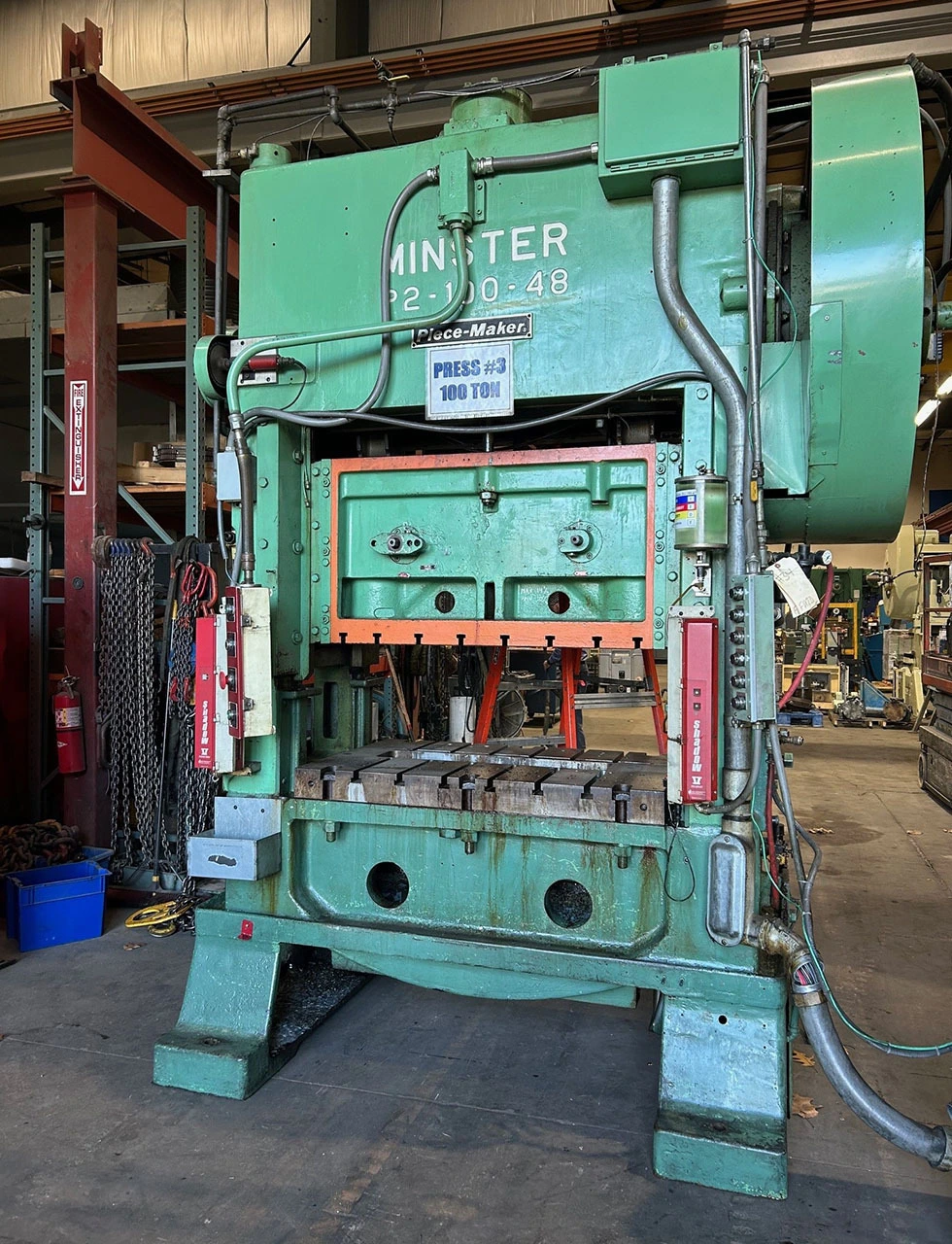

USED MINSTER P2-100-48

Tonnage = 100
Stroke = 4"
Speed (Variable) = 80-160 SPM
Slide Adjustment = 4"
Shut Height (S.D.A.U.) = 20"
Bed Area = 48" L-R x 31" F-B
Slide Area = 48" L-R x 18.5" F-B
Side Window Width = 16"
Motor = 15 HP
Electrics = 230/460V/60HZ/3PH
Weight (Approx.) = 33,000 lbs

Air Clutch and Brake
Wintriss WPC with Smart Pac Controls
Recirculating Lubrication System
Dual Air Counterbalances
Floor Mounted Operator Console
Eight Point Gibbing
Tie Rod Construction
5" T-Slotted Bolster Plate (with Center Cutout)
(4) Isolation Mounts
