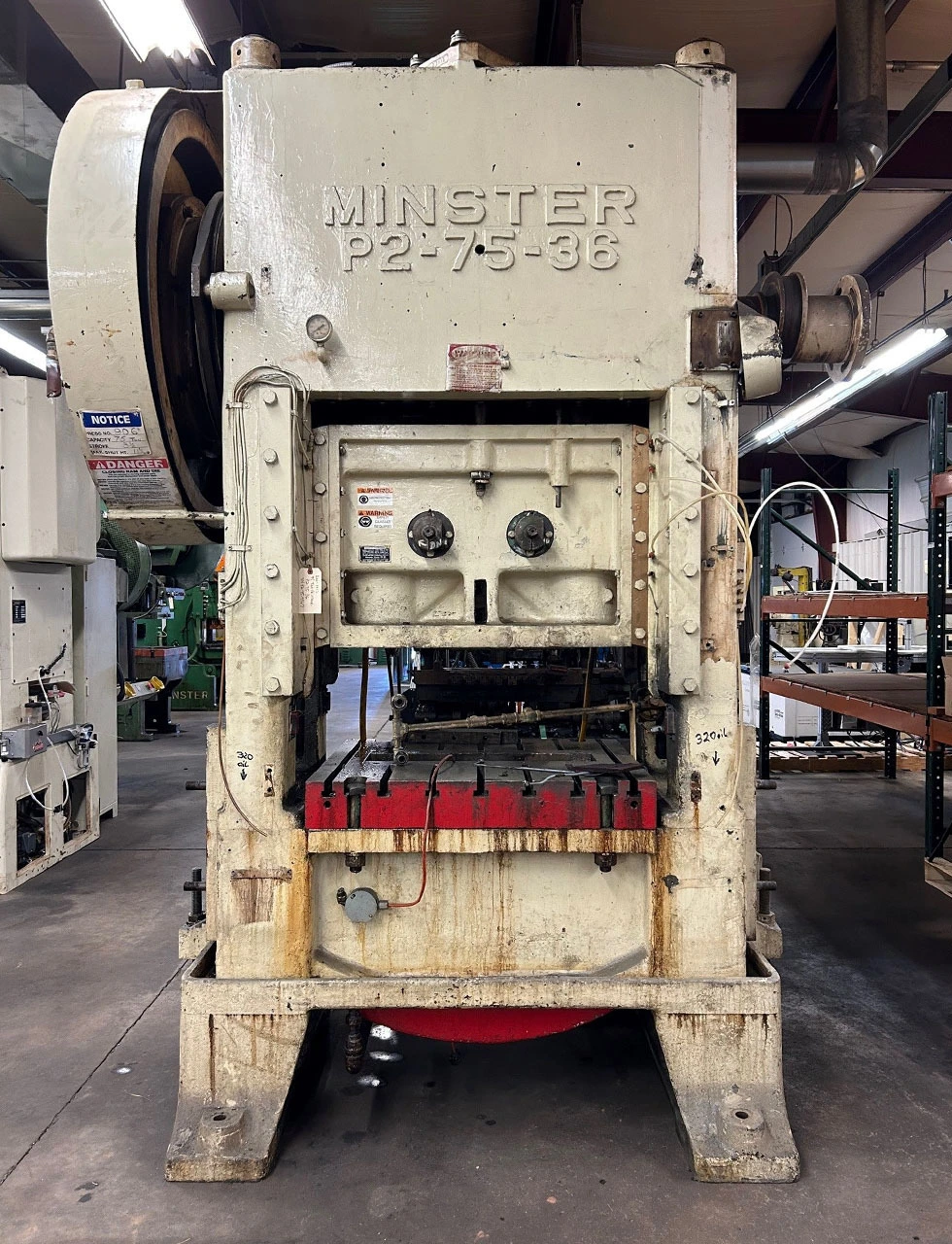

USED MINSTER P2-75-36

Tonnage = 75
Stroke = 1.5"
Speed (Variable) = 0-150 SPM
Slide Adjustment = 4"
Shut Height (S.D.A.U.) = 11.5"
Bed Area = 36" L-R x 31" F-B
Slide Area = 36" L-R x 18.5" F-B
Side Window Width = 12"
Motor = 15 HP
Electrics = 230/460V/60HZ/3PH
Weight (Approx.) = 18,000 lbs

Air Clutch and Brake
Dual Air Counterbalances
Automatic Recirculating Lubrication System
5" T-Slotted Bolster
Eight Point Gibbing
Tie Rod Construction
Eddy Current Motor
