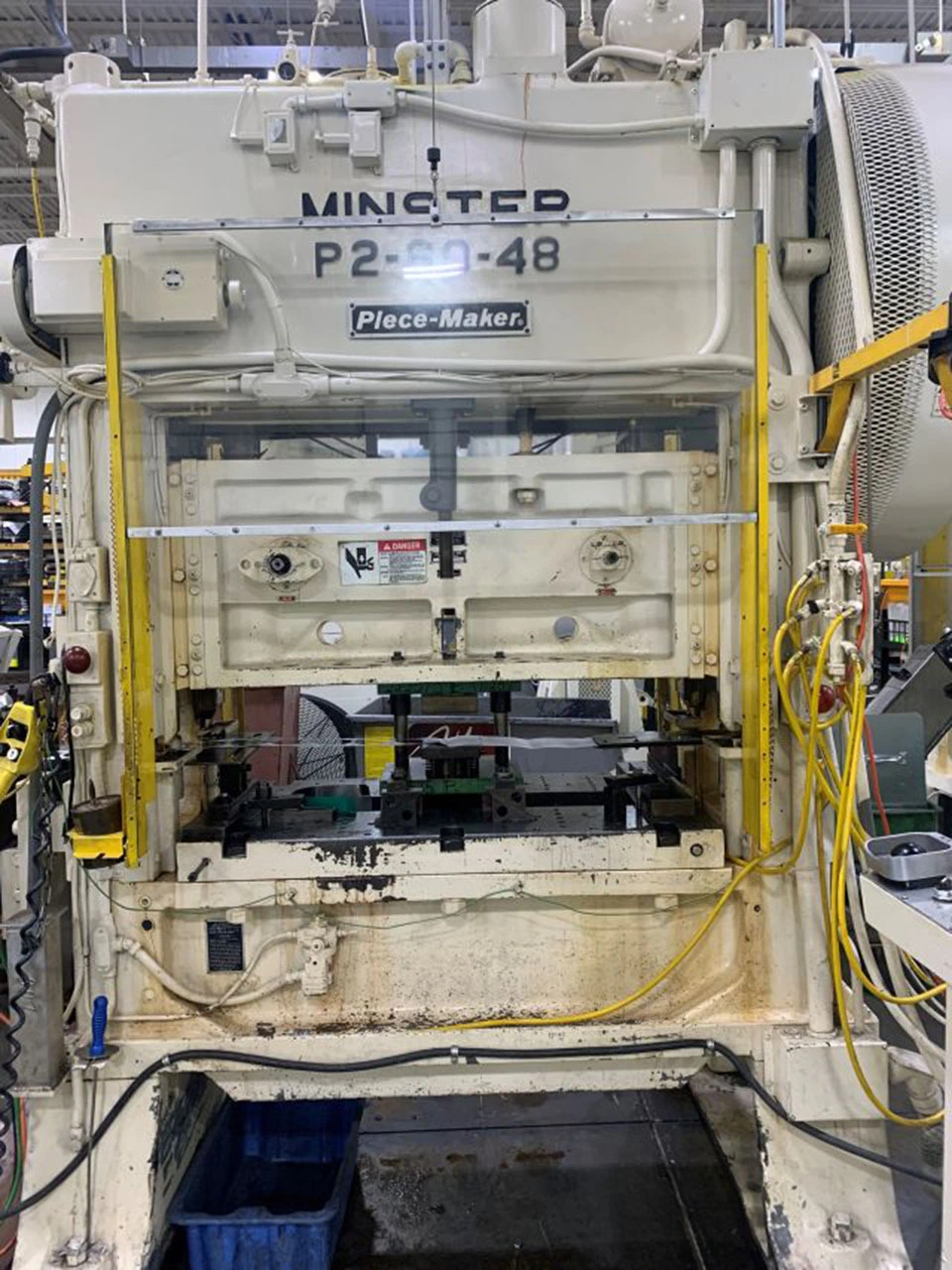

USED MINSTER P2-60-48-25

Tonnage = 60
Stroke = 4"
Speed (Variable) = 0-200 SPM
Slide Adjustment 3"
Shut Height (S.D.A.U.) = 15.5"
Bed Area = 48" R-L x 25" F-B
Slide Area = 48" R-L x 15" F-B
Side Window = 12″"
Motor = 15 HP
Electrics = 240V/60HZ/3PH
Weight (Approx.) = 18,000 lbs

OEM Press Control with Time-Based Brake Monitor
Air Clutch and Brake
Dual Air Counterbalances
Recirculating Lubrication System
3.5" Bolster (Center Cutout 35" L-R x 4.25" F-B)
Eight Point Gibbing
Tie Rod Construction
Eddy Current Motor
Floor Operator Console
(4) Isolation Mounts
