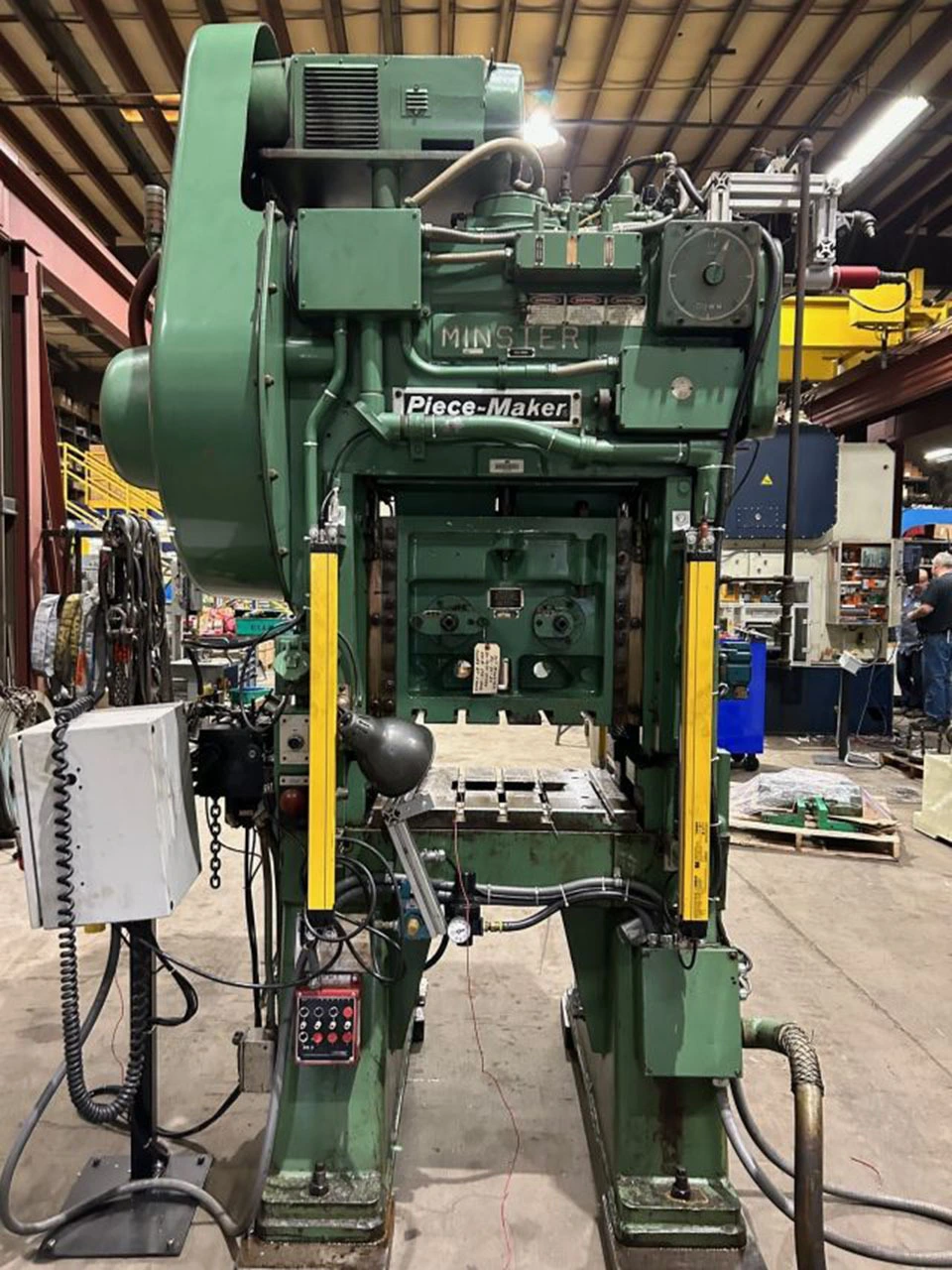

USED MINSTER P2-30-24

Tonnage = 30
Stroke = 1″
Speed (Variable) 0-500 SPM
Slide Adjustment = 2″
Shut Height (S.D.A.U.) = 5″
Bed Area = 24″ L-R x 19″ F-B
Slide Area = 24″ L-R x 19″ F-B
Side Window Width = 5″
Motor = 10 HP
Electrics = 230/460V/60HZ/3PH
Weight (Approx) = 8,000 lbs

Air Clutch and Brake
Dual Air Counterbalances
OEM OSHA Compliant Minster Press Controls
30” STI Light Curtains Front & Back
Automatic Recirculating Lubrication System
Eight Point Gibbing
T-Slotted Ram
Tie Rod Construction
Eddy Current Motor
Floor Operator Control Console
2″ T-Slotted Bolster (Center Cutout 10″ L-R x 4.5″ F-B)
(4) Isolation Mounts
