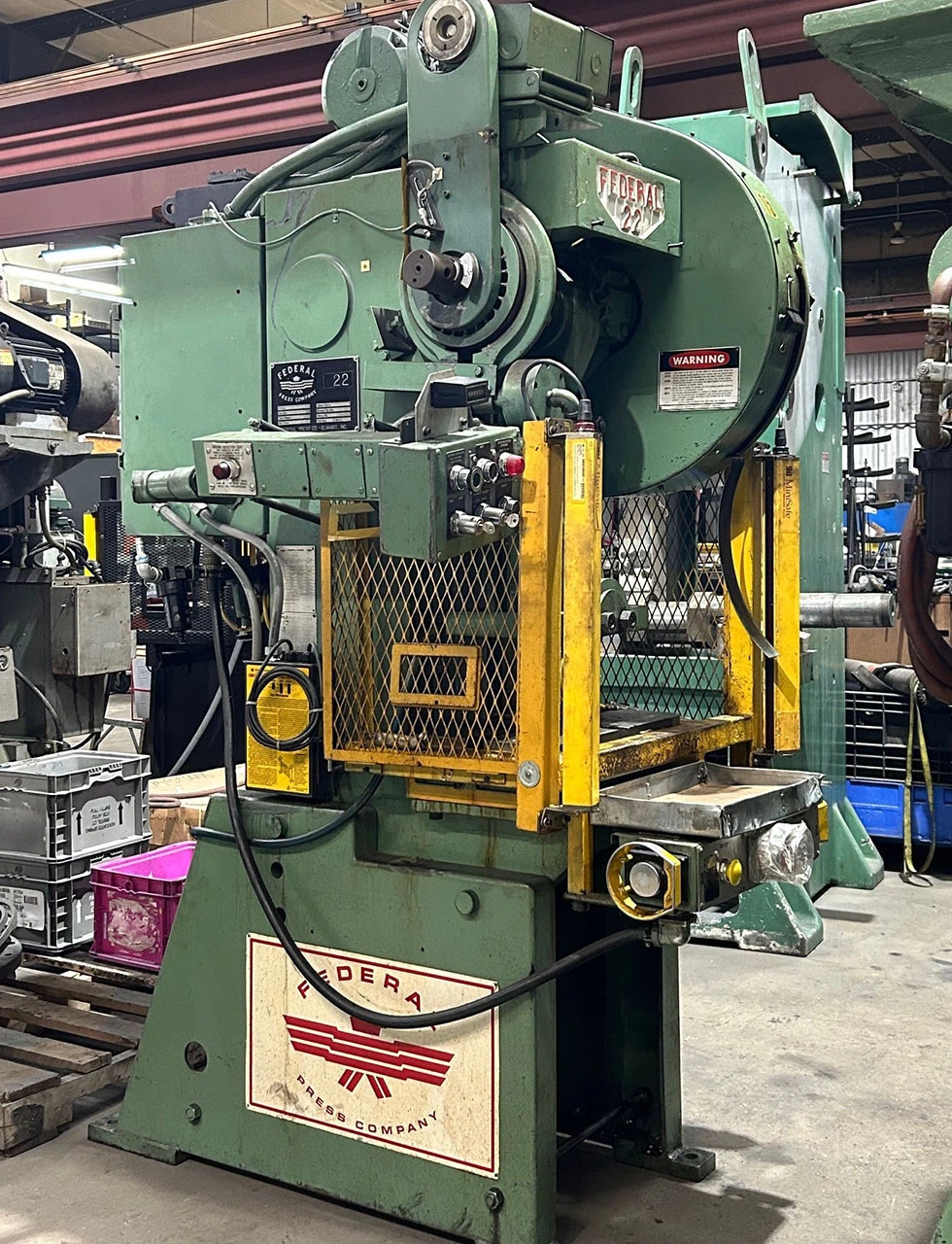

22 TON FEDERAL GAP FRAME PRESS

Tonnage = 22
Stroke = 2.5″
Speed (Fixed) = 150 SPM
Slide Adjustment = 2″
Shut HT (S.D.A.U.) = 10.5″
Bed Area = 20″ L-R x 12″ F-B
Motor = 3 HP
Electrics = 220/440V/60HZ/3PH
Weight (Approx.) = 4,500 lbs.

Air Clutch and Brake
Cieco OSHA Compliant Press Control with Time-Based Brake Monitor
Dual Safety Clutch Valve
7″ Throat
Lubrication System
Light Curtains with Side Guards
1.5″ Bolster (Center Cutout 8″ L-R x 4.5″ F-B)
