Used

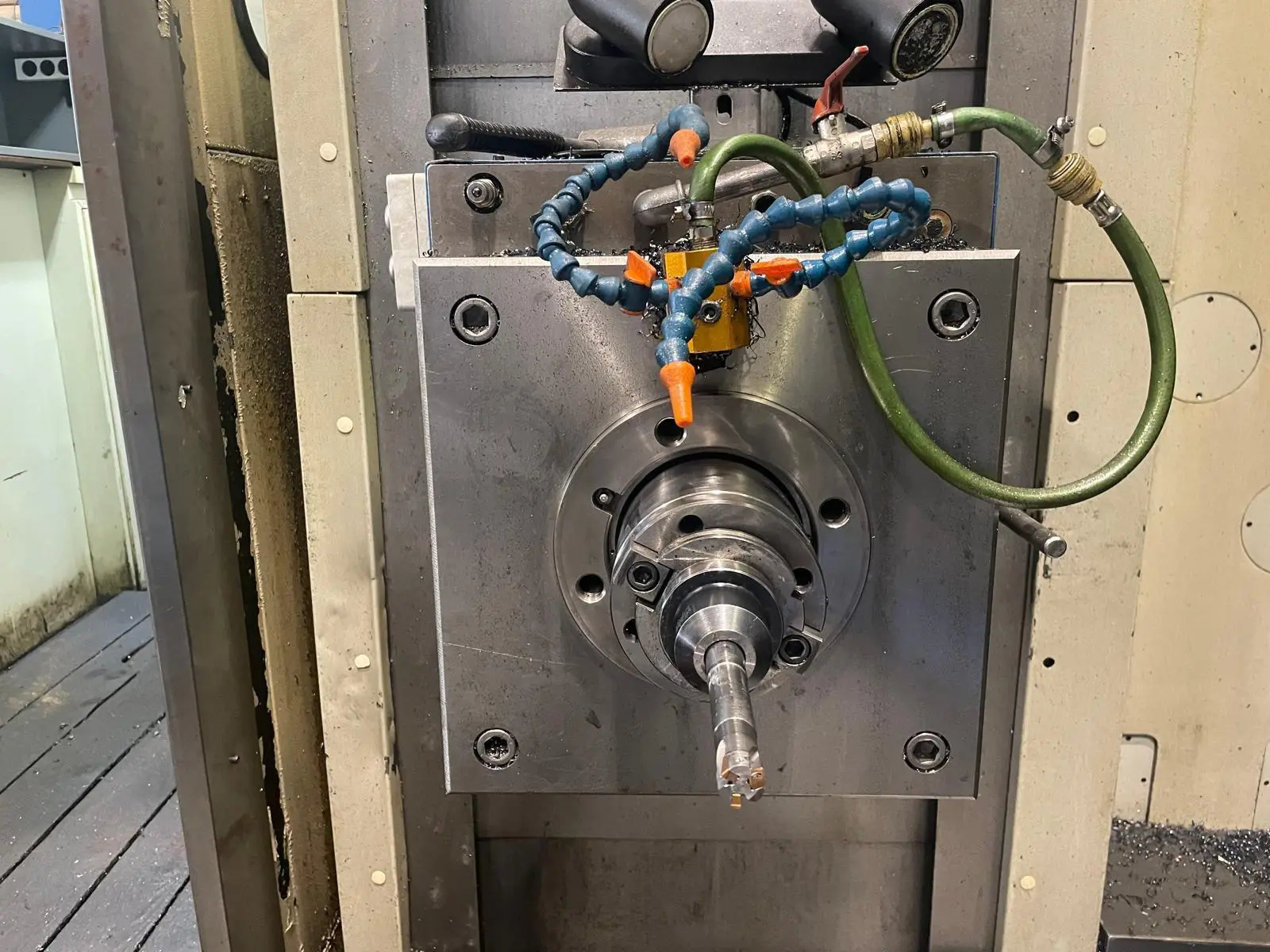

USED 2012 FERMAT WFT 13

Illinois, United States
589Listings|57Followers
Overview
Horizontal Table Type Boring Mills

2012 FERMAT MODEL WFT 13 HORIZONTAL BORING MILL: Travels X=196.8", Y=137.8", Z=78.7"
FERMAT began in 1990 and was founded by Jiří Ferenc and Mr. Matys, whose last names were used to form the company name. From the outset, FERMAT has benefited from the solid professional ethics of family and friends to guide its excellence.

Through strong growth and strategic acquisitions in the Czech Republic and the United States, FERMAT has become the leading manufacturer of the most powerful and accurate horizontal boring and milling machines and cylindrical grinding machines, providing machine tools for all major markets worldwide.

Today, FERMAT has more than 470 employees on three continents, producing more than 100 machines a year. FERMAT's main production and assembly facilities are in Brno, the second largest city of Czechia and Lipnik nad Becvou, to the north-east. As FERMAT continues to expand its machine tool range, this capital expansion will continue.

Specs
Spindle Size
5.1"
129.54 mm
X-Horiz Tvl of Table
196.8"
4,998.7 mm
Y-Vert Tvl of Head
137.8"
3,500.1 mm
Power
49.6 hp
37 kW
RPM
3,000 RPM
3,000 RPM
Table-W
94.5"
2,400.3 mm
Table-L
78.7"
1,999 mm
Spindle Tvl.
28.7"
728.98 mm
Control
CNC (Heidenhain TNC 530)
CNC (Heidenhain TNC 530)
Dimensions
440.9" x 489.7" x 250.0"
440.9" x 489.7" x 250.0"
Weight
127,820 lbs
127,820 lbs

X: 5000 196.8"
Y: 3500 137.8"
Z: 2000 78.7"
W: 730 28.7"
Max. spindle speed 3000 rev.min
Rotary table 2400x2000 94.5" X 78.7"
Max. payload: 20 000 kg 44,000 LBS.

Equipped With

Through spindle coolant
Exchange of spindle bearings in 2021
Through spindle coolant
Machine dismantling and LKW loading: 15 800 Euro
Machine installation, geometry setting: 26 200 Euro + travel costs
