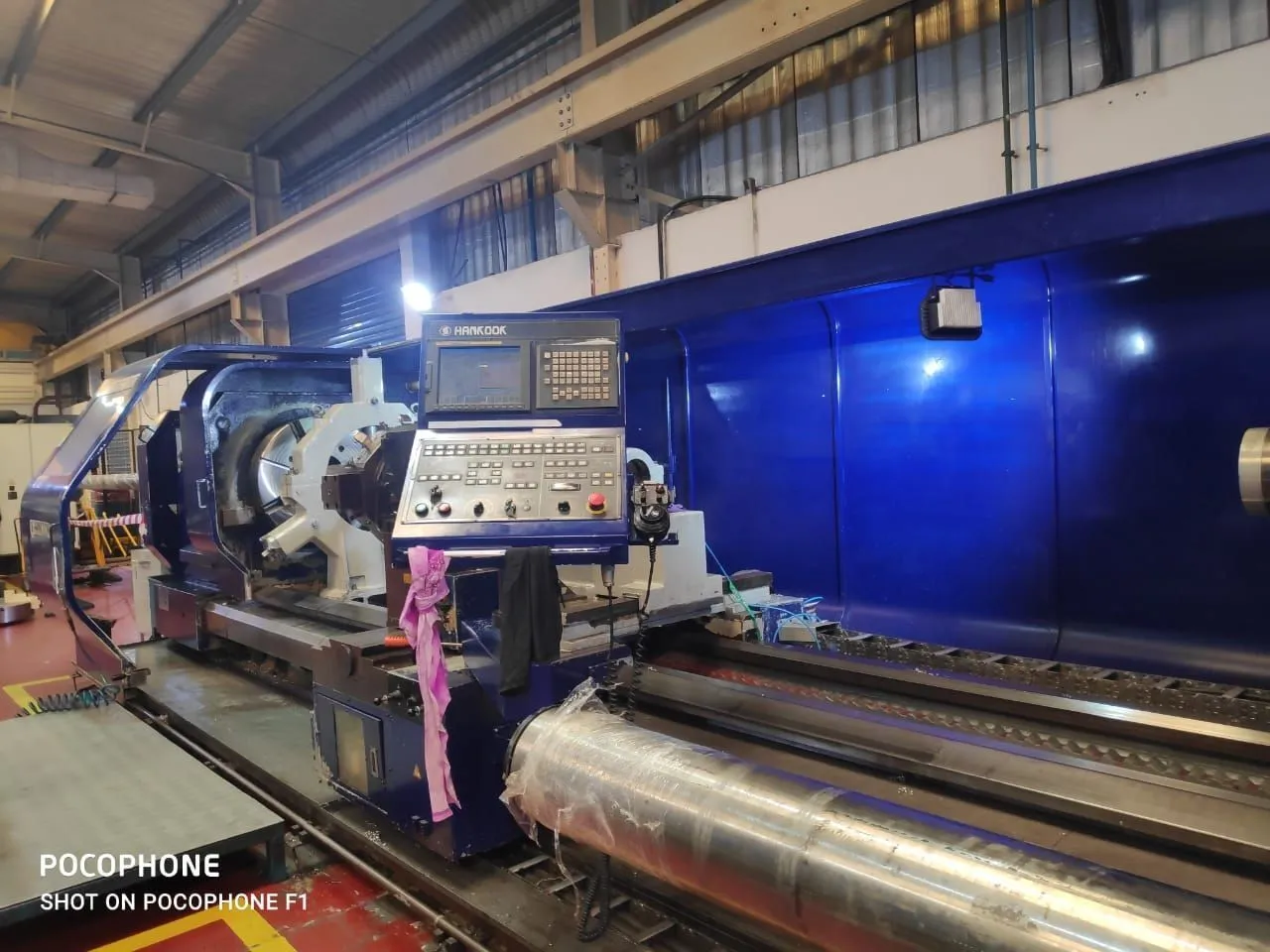

NEW 2009 HANKOOK PROTEC-13N/5000

2009 HANKOOK Oil Country Lathe Model Protec 13ND
FEATURES
Extra wide one-piece cast iron bed
Induction-hardened & precision-ground guide ways
High precision ball screws for both axes
Servo motors for both axes
Square tool post featuring Curvic coupling
X/Z axes electronic hand-wheels(MPG)
Full length rear chip guard and single front door
Full automatic lubrication to all critical areas
Guidance hand-wheel(simultaneous 2 axes control)

Hankook America Corp. is your CNC Horizontal Lathe Supplier. From 12” chuck teach lathes up to 118” turning with 100 feet between centers and 150-ton part capacity.

The Protec N Series of “semi-CNCs” or “teach” lathes are available up to 315” between centers and spindle bores from 4” up to 21.6” through holes with front and rear chuck options.

The Dynaturn Series offers wide bases with 3 bed-ways and up to 102 inch swing and 394 inches between centers.

The Dynaturn R and R-Series are lathes specially designed for steel roll turning and can be ordered with up to 118 inch turning capacity, 100 feet between centers, 150-ton roll weight, and available with various options including Grinding, Milling, and a unique Roll Loading System developed by Hankook which prevents spindle and tailstock damage when loading large rolls. These lathes are used by many of the largest Steel producers in the world.

Year of Manufacture 2009
Control Fanuc 21iTB
Centre distance (mm) 5000; 196.85
Max swing over bed (mm) 1300; 51.18
Max swing over cross slide (mm) 940; 37.0"
Spindle bore (mm) 320; 12.6"
R.P.M. 1 - 630
kW 30/37 50HP
Volts 380V
Cycles 50
Steady rest ø (mm) ■
Coolant attachment ■
8 position turret Toolpost

Steady rest ø (mm) ■
Coolant attachment ■
8 position turret Toolpost
