USED VOITH 18,585 gallons

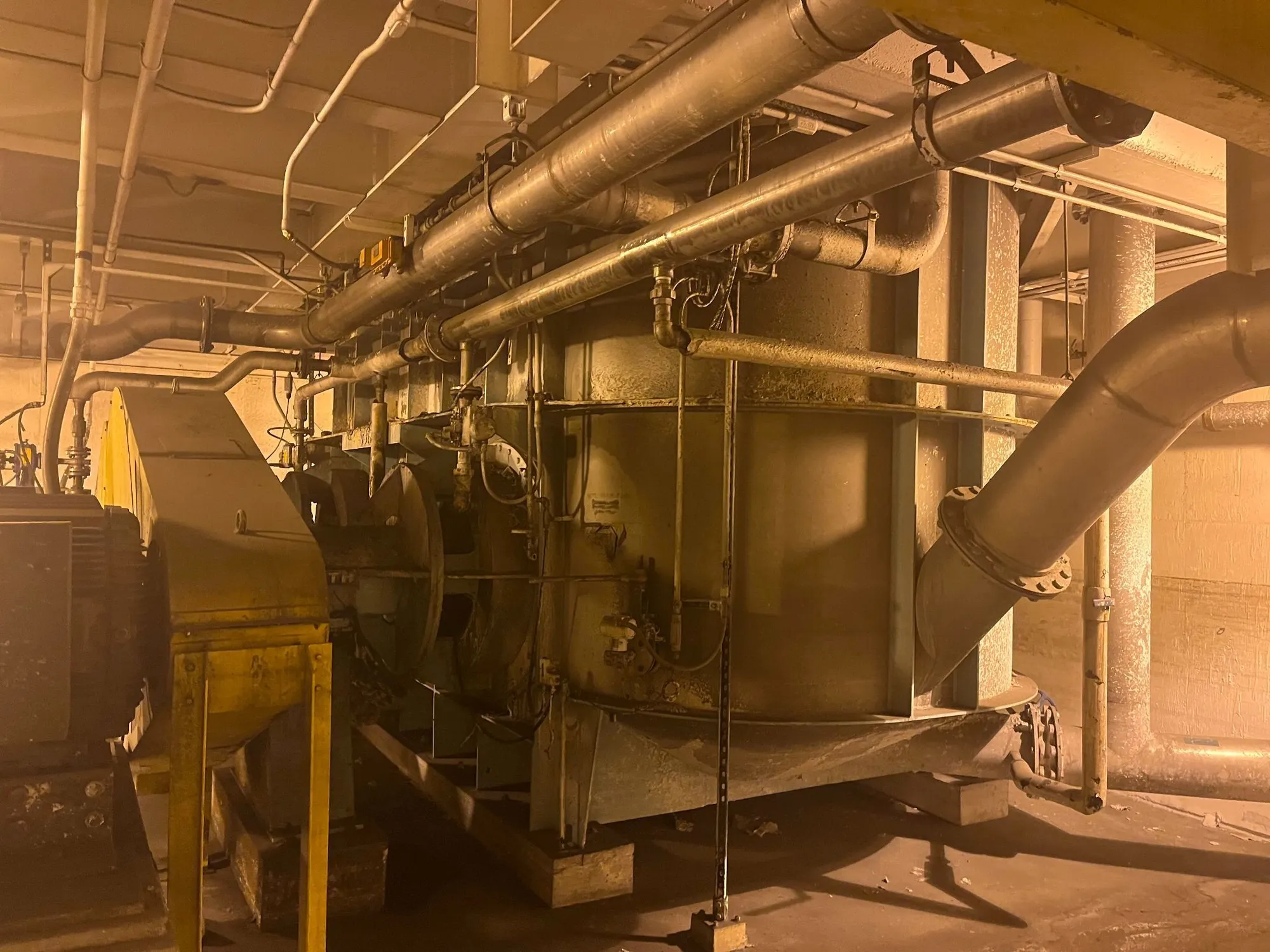

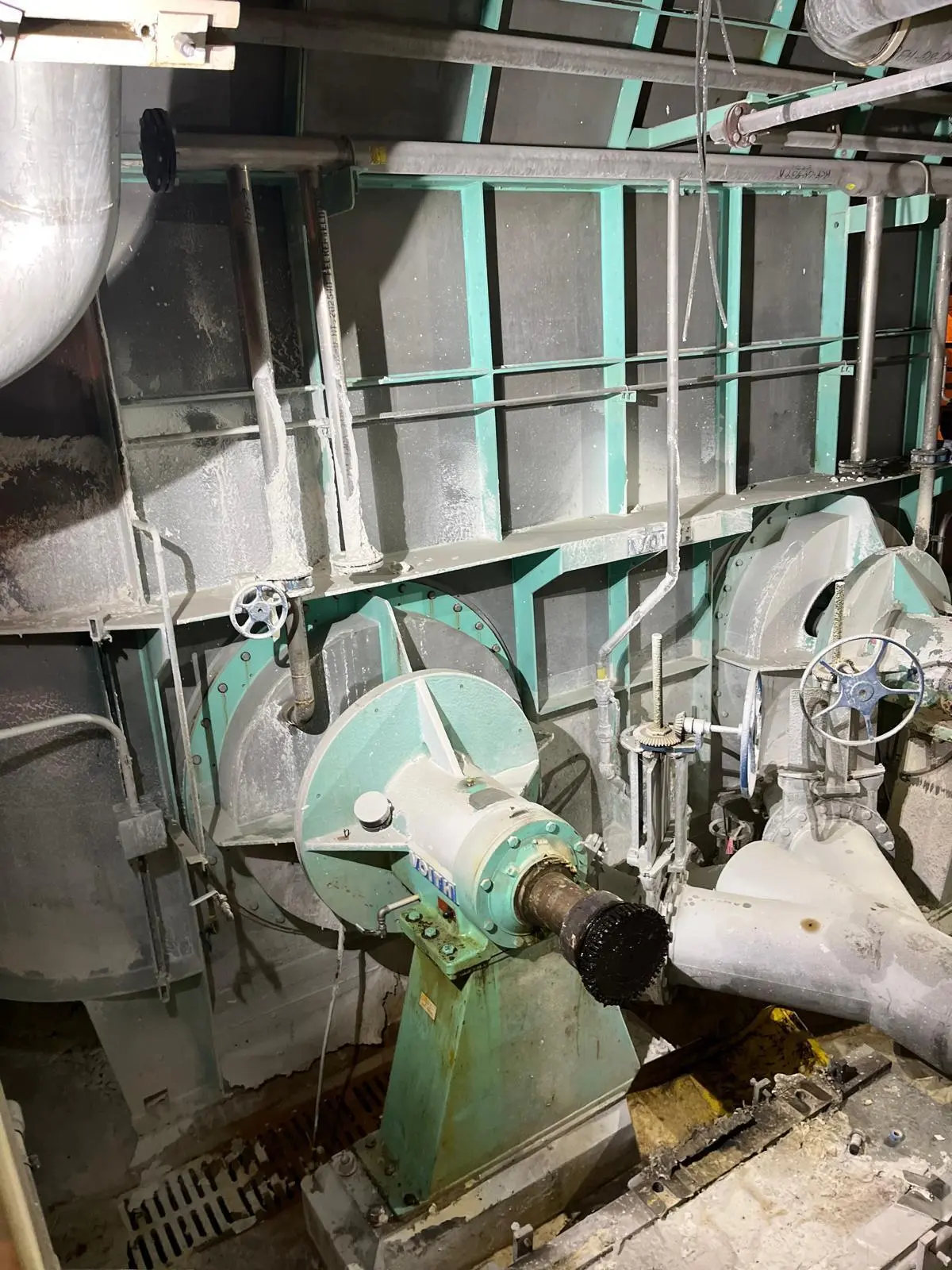

Used Voith Broke Pulper System, Approx. 3 Units

Consisting of (2) large Voith reel broke pulpers and (1) Voith unwind broke pulper
Each reel pulper appears to be driven by dual 300 HP drives, approx. 600 HP total per pulper
Reel pulpers approx. 10,600 gallon capacity each
Unwind pulper appears to be driven by approx. 150 HP motor
Unwind pulper approx. 4,600 gallon capacity
Includes associated broke chutes and installation components
Suitable for coated paper, paperboard, machine broke, reel broke, unwind broke, edge trim, and off-spec roll repulping
Originally installed under coating line / wide paper machine service

Estimated system capacity: approx. 340–580 TPD total broke handling capacity, depending operating consistency and feed conditions.
