| Pump Output | 60,000 PSI | 4,136.8 bar |
| X | 50" | 1,270 mm |
| Y | 50" | 1,270 mm |
| Z | 7" | 177.8 mm |
| Table Size-W | 48" | 1,219.2 mm |
| Table Size-L | 48" | 1,219.2 mm |
| Power | 30 hp | 22.4 kW |
CAPACITY:
Work Area: 48" x 48"
X-Axis Travel: 50"
Y-Axis Travel: 50"
Z-Axis Travel: 7"
Intensifier Output: 60,000 PSI
Motor Size (460 Volt): 30 HP
Speed Range (X & Y Axes): 0 - 400 IPM
Contouring: 300 IPM
Positional Accuracy (X & Y Axes): +/- 0.005"
Repeatability (X & Y Axes): +/- 0.0025"
Equipped With:

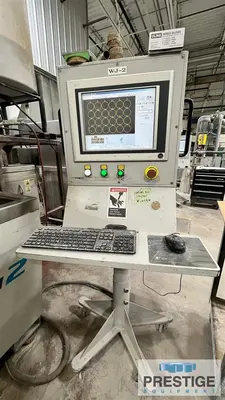

Flowmaster PC Based CNC Control

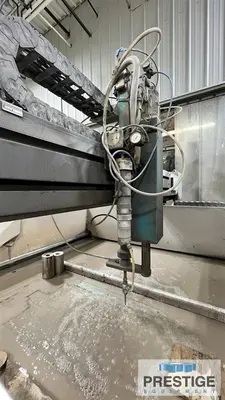

Conventional 2D Cutting Head

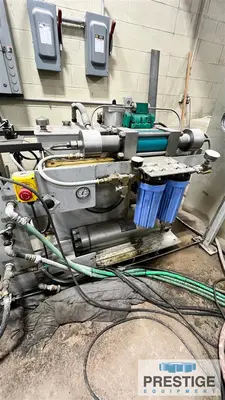

Flow 30-SA Intensifier Pump
500 Lb. Abrasive Hopper
HOURS:
11,491
Features:
Flowmaster PC Based CNC Control
Conventional 2D Cutting Head
Flow 30-SA Intensifier Pump
500 Lb. Abrasive Hopper
