USED PAUL O ABBE RB-35

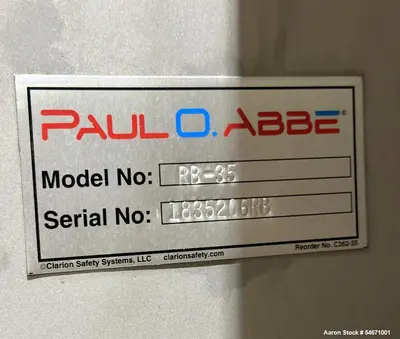

Manufacturer Information
Manufacturer: Paul O. Abbe Model: RB-35 Equipment Type: Horizontal Double Spiral Ribbon Blender Condition: Used Previous Application: Corn Meal Blending
Paul O. Abbe is an established manufacturer of industrial mixing, blending, milling, and processing equipment serving food, chemical, pharmaceutical, and specialty manufacturing industries.
Paul O. Abbe ribbon blenders are designed for batch mixing of compatible dry powders, granular ingredients, and other bulk solids. Their horizontal trough and ribbon agitator configuration promote material circulation for uniform blending.
This Paul O. Abbe Model RB-35 features a 35 cubic foot working capacity, 39 cubic foot total volume, polished Type 304 stainless steel product-contact surfaces, a double spiral ribbon agitator, and a 20 HP drive.
Description

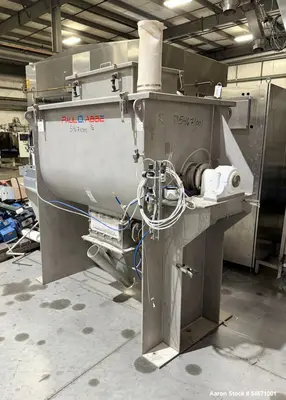

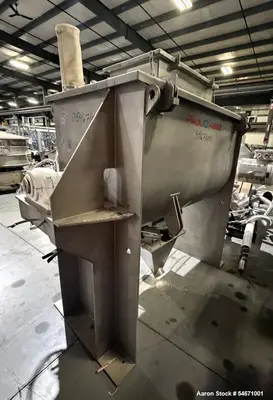

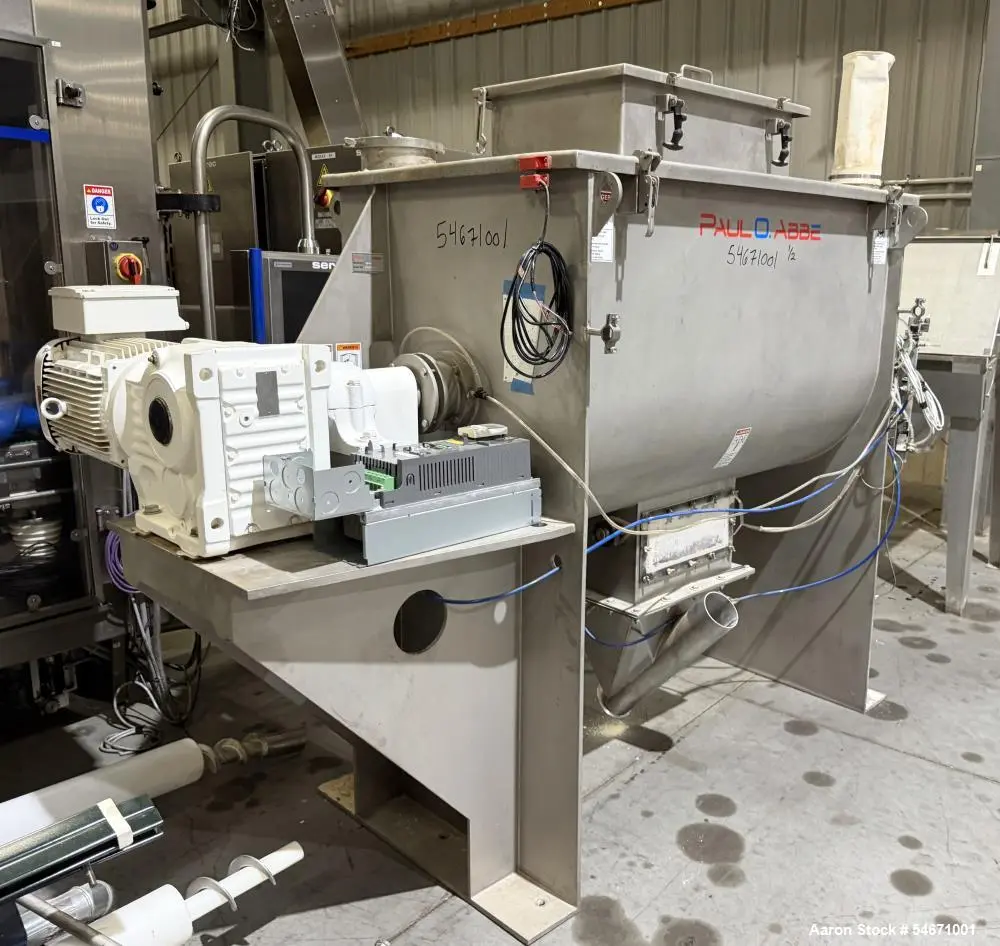

Available for sale is a used Paul O. Abbe Model RB-35 stainless steel horizontal ribbon blender, designed for batch blending of dry food powders, granular products, and other compatible free-flowing materials.
The blender has a 35 cubic foot working capacity and 39 cubic foot total volume, making it suitable for medium-size industrial batch mixing operations.
The unit features all stainless steel construction with polished Type 304 stainless steel product-contact surfaces and a food-grade design. It was last used for blending corn meal, making it a potential option for facilities processing similar dry food ingredients.

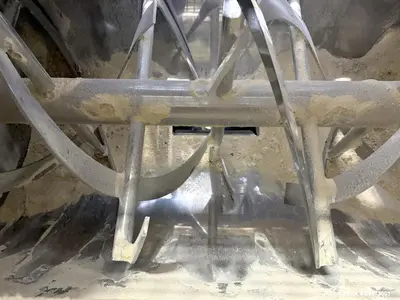

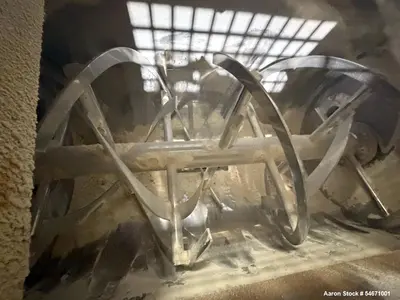

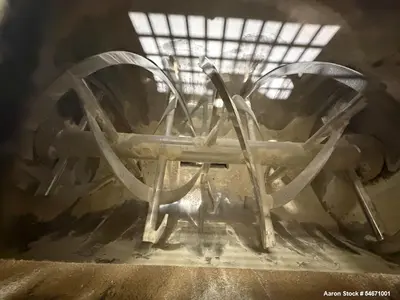

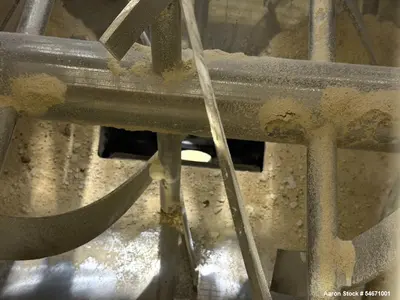

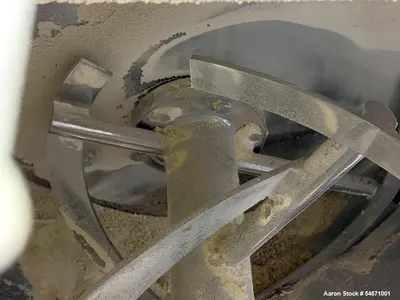

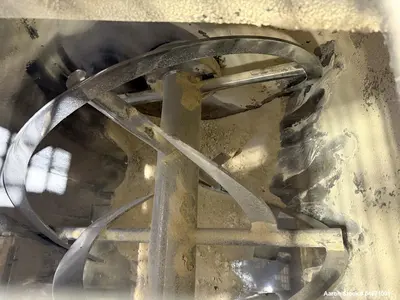

The mixing trough measures approximately 33.4" wide x 59.1" long x 37.4" deep and contains an internal double spiral ribbon agitator. This mixing configuration is designed to move material both inward and outward through the trough, promoting consistent distribution of ingredients throughout the batch.
The agitator is supported by packing glands and pillow block bearings.

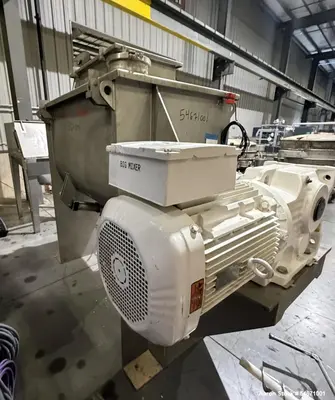

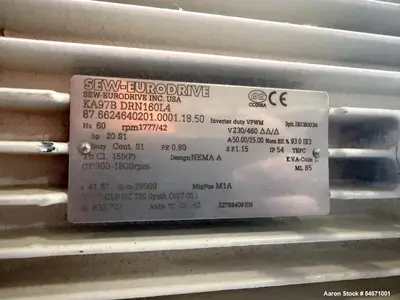

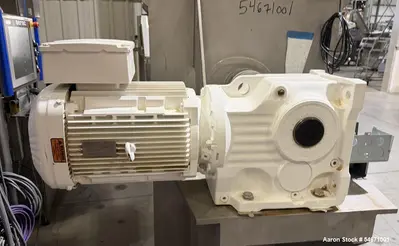

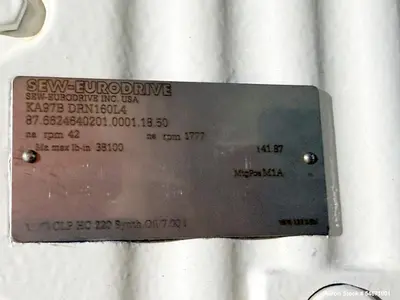

The blender is driven by a 20 HP motor, rated 230/460V, 3-phase, 60 Hz, with a listed motor speed of 1,777 RPM. The drive incorporates a 41.87:1 gear reducer, providing an approximately 42 RPM agitator speed.

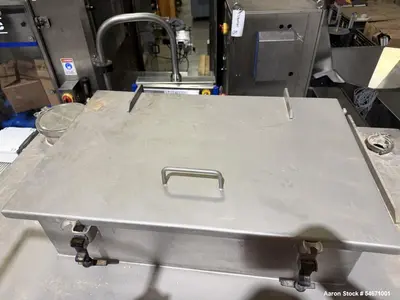

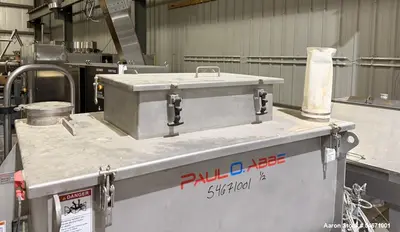

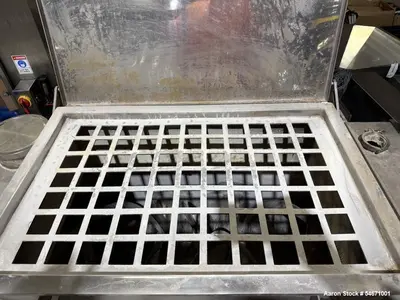

The top cover includes hold-down clamps and a limit switch. A center loading cover incorporates a welded safety grate measuring approximately 19.7" wide x 31.5" long.

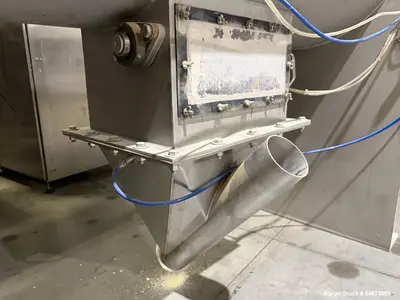

For material discharge, the blender is equipped with an approximately 4.7" wide x 14.2" flush-mounted, air-operated plug valve.
The discharge housing measures approximately 18.5" wide x 24" long, with an approximately 24" discharge height for connection to compatible containers, conveyors, or downstream processing equipment.
Overall dimensions are approximately 56" wide x 108" long x 90" tall, with an estimated weight of 2,860 lbs.
This Paul O. Abbe ribbon blender could be suitable for food ingredient manufacturing, powder blending, dry chemical mixing, and other applications requiring a stainless steel batch mixer.
Specifications

Specification

Details

Manufacturer

Paul O. Abbe

Model

RB-35

Equipment Type

Horizontal Ribbon Blender

Condition

Used

Working Capacity

35 Cubic Feet

Total Volume

39 Cubic Feet

Construction

All Stainless Steel

Product-Contact Material

Polished Type 304 Stainless Steel

Design

Food Grade

Trough Width

Approx. 33.4"

Trough Length

Approx. 59.1"

Trough Depth

Approx. 37.4"

Agitator

Internal Double Spiral Ribbon

Shaft Sealing

Packing Glands

Bearing Configuration

Pillow Block Bearings

Motor Power

20 HP

Motor Voltage

230/460V

Electrical Phase

3 Phase

Frequency

60 Hz

Motor Speed

Approx. 1,777 RPM

Agitator Speed

Approx. 42 RPM

Gear Reducer Ratio

41.87:1

Top Cover

Hold-Down Clamps and Limit Switch

Center Loading Cover

Included

Safety Grate

Welded

Loading Opening

Approx. 19.7"W x 31.5"L

Discharge Valve

Flush-Mounted, Air-Operated Plug Valve

Discharge Valve Size

Approx. 4.7"W x 14.2"

Discharge Housing

Approx. 18.5"W x 24"L

Discharge Height

Approx. 24"

Overall Width

Approx. 56"

Overall Length

Approx. 108"

Overall Height

Approx. 90"

Approximate Weight

2,860 Lbs.

Previous Product

Corn Meal

Actual batch weight depends on product bulk density and operating requirements. Pneumatic utility requirements, internal surface finish measurements, control panel details, and current mechanical condition should be verified before purchase.
Typical Applications

Dry food ingredient blending

Corn meal mixing

Flour and grain powder blending

Bakery ingredient preparation

Dry seasoning production

Powdered food formulation

Granular ingredient blending

Dry chemical mixing

Powder additive incorporation

Bulk solids homogenization

Industrial batch blending

Dry premix manufacturing

Products This Ribbon Blender Could Be Used For

Corn meal

Flour

Dry bakery mixes

Pancake and waffle mixes

Dry seasoning blends

Spice mixtures

Powdered sugar

Starch powders

Dry cereal ingredients

Powdered food additives

Compatible granular food ingredients

Other suitable dry powders and free-flowing bulk solids

Material suitability depends on particle size, bulk density, moisture content, flow characteristics, required blend uniformity, and sanitation requirements. Food processing use should include appropriate cleaning, inspection, and verification of the equipment's condition.
FAQs:

What is the working capacity of this Paul O. Abbe ribbon blender?
The blender has a stated working capacity of 35 cubic feet.
What is the total volume?
The total stated volume is 39 cubic feet.
What material are the product contact surfaces?
The product contact surfaces are polished Type 304 stainless steel.
Is this ribbon blender food grade?
Yes. The unit is described as food grade.
What type of ribbon agitator does it use?
The blender is equipped with an internal double spiral ribbon.
What size motor is installed?
The unit is driven by a 25 hp SEW Eurodrive hollow bore drive.
What is the approximate ribbon speed?
The stated output speed is approximately 42 rpm.
What are the electrical requirements?
The drive is rated 230/460V, 3-phase, 60 Hz.
What type of discharge valve is installed?
The blender is equipped with an approximately 4.7"W x 14.2" flush air-operated plug valve.
Does the blender include a safety grate?
Yes. The center loading cover includes a welded safety grate measuring approximately 19.7"W x 31.5"L.
What product was this blender last used on?
The unit was last used on corn meal.
What are the overall dimensions?
Overall dimensions are approximately 52.7"W x 107.5"L x 84.3"H.
What does the blender weigh?
Approximate weight is 2,860 lbs.
