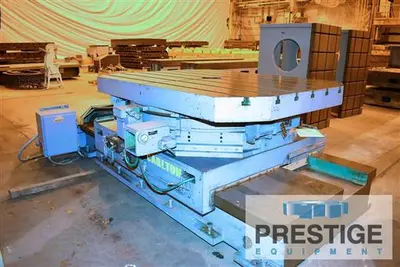

USED CINCINNATI-GILBERT INFEEDING

SPECIFICATIONS:
T-Slotted Table Size: 60" x 84"
Rotary Table Height: 19.5"
Slide Height: 22.5"
Table & Slide Height Combined: 42"
Table Weight Capacity On Center: 20,000 lbs
Table Weight Capacity Off Center: 15,000 lbs
Table Infeeding Travel: 48"
Shipping Weight: 21,100 lbs

Equipped With:
Pendant Controls
1 Degree Graduated Scale
Air Lift
Power Infeed
Ballscrew Infeed
4-Position Shot Pin
15 HP Infeed Motor

NOTE:
Table Will Separate From Slide

Features:
Ballscrew Infeed
Pendant Control
