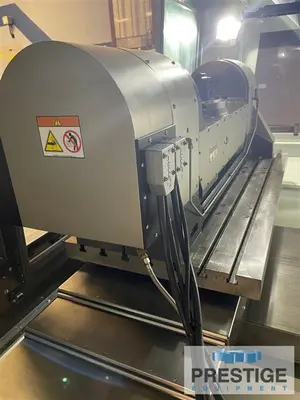

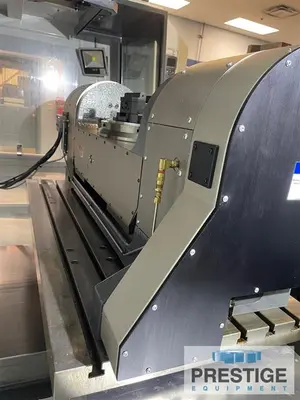

USED 2020 HAAS TR-310

CAPACITY:
Platter Diameter: 12.20"
Maximum Weight on Platter: 500 Lbs.
Maximum Swing of Part: 31"
Number of Standard T-Slots: 6 @ 60 Deg.

SPINDLE A (TILT):
Maximum Speed: 50 Deg./Sec.
Max. Torque: 300 FT/LBF
Backlash: 30 arc-sec
Gear Ratio: 72:1"
Timing: 3:1
Brake Torque (100 PSI/6.9 Bar): 1000 Ft/Lbf

SPINDLE B (ROTARY):
Maximum Speed: 50 Deg./sec
Maximum Torque: 300 Ft-lbf
Runout Max: 0.0010"
Backlash: 30 arc-sec
Gear Ratio: 72:1
Timing: 3:1
Brake Torque (100 PSI/6.9 Bar): 100 Ft/Lbf

INDEXING-A (TILT):
Maximum Rotation/Step: +/-120 Deg.
Resolution: 0.001 Deg.
Accuracy: +/- 15 arc-sec
Repeatability: 10 arc-sec

INDEXING-B (ROTARY):
Maximum Rotation/Step: 999.999 Deg
Resolution: 0.001 Deg
Repeatability: 10 arc-sec

NOTE:
Shipping Dimensions: 70" x 30" x 34"
Weight: 2,200 Lbs.

NOTE:
This rotary unit has a SIMGA1 motor. It will not work with every machine.:
Coming out of Government Facility. Only used a handful of times:
