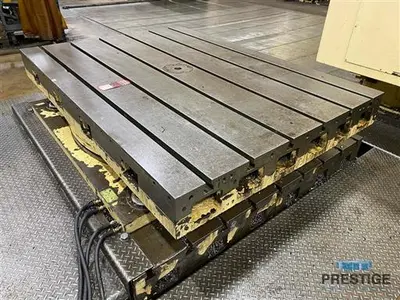

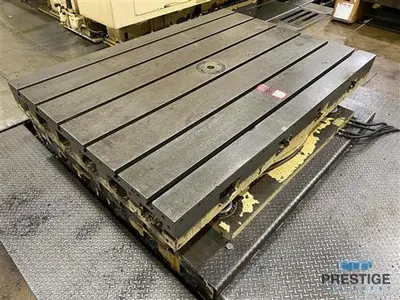

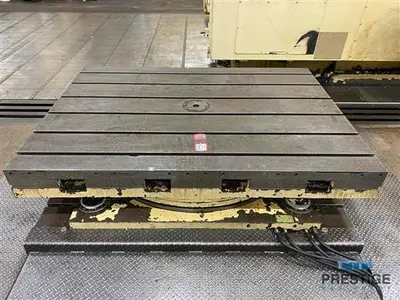

USED GIDDINGS & LEWIS AIR LIFT

SPECIFICATIONS:
Table Size: 60" X 84"
Table Height Overall: 16"
Number Of T-Slots: 6
Width Of T-Slots, Top: 1"
Width Of T-Slots, Bottom: 1.875"
Depth Of T-Slots, Overall: 2"
Distance Between T-Slot Centers: 10"
Weight Capacity: 30,000 LBS
Shot Pin Locations (degrees): 90,180,270,360
Table Base Dimensions: 60" x 66"
Table Weight: 10,300 LBS

Equipped With:
Remote Operating Pendant
Air Clamp
4-Positive Stop, Shot Pins
360 Degree Scale with 1/2 Degree Increments
Fixture Locating Keyway

NOTE:
Needs Work, Table works perfectly without weight on it. When you put over 5,000 lbs will not spin. Bearing surfaces will need to be re-ground and needs new ball bearings and reground shims.
