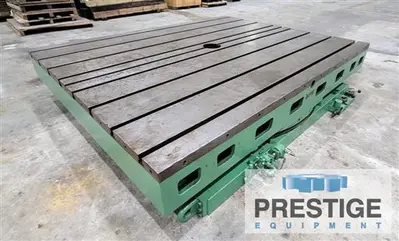

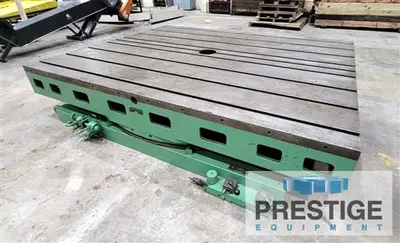

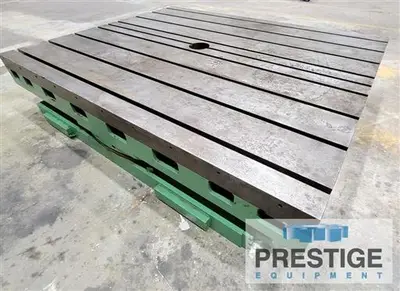

USED 1974 GIDDINGS & LEWIS HYDROSTATIC

SPECIFICATIONS:
Table Size: 96" x 120"
Base Size: 96" x 96"
Table Height Overall: 24"
Number Of T-Slots: 8
Width Of T-Slots Top: 1.25"
Width Of T-Slots Bottom: 2-1/8"
Depth Of T-Slots: 2.5"
Distance Between T-Slot Centers: 12"
Maximum Load Capacity: 75,000 LBS
360 Degree Scale Increments: 1-Degree
Approximate Shipping Weight: 32,700 LBS

Equipped With:
90 Degree Positioning
4-Shot Pin Positions
Fixture Locating Keyway
Power Clamping
Centerbore In Table Platen

NOTE:
Inspect In Our Philadelphia PA Warehouse

Features:
75,000 lb Load Capacity
4-Positive Shot Pin Locations
