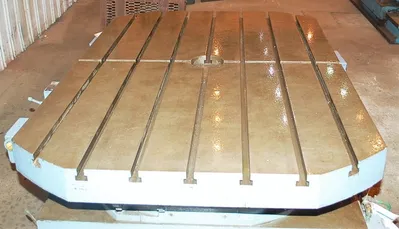

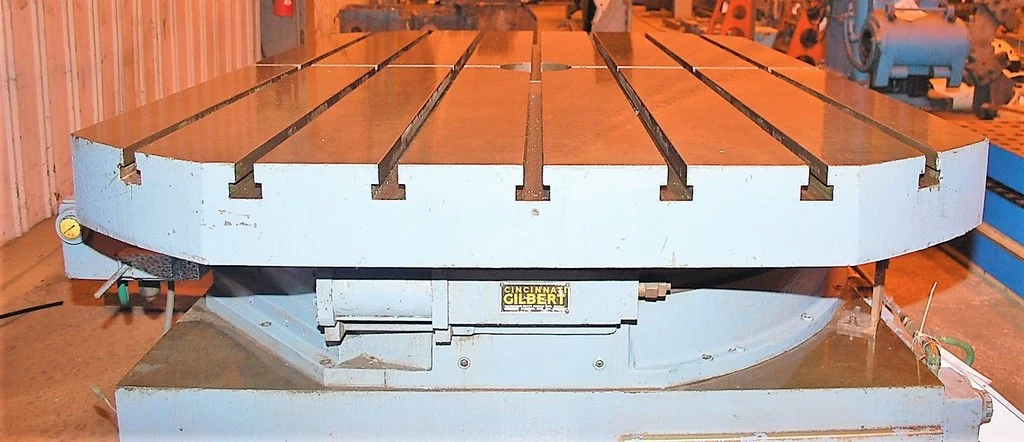

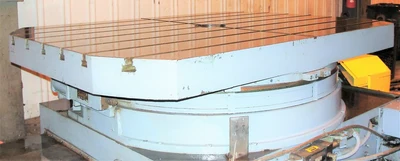

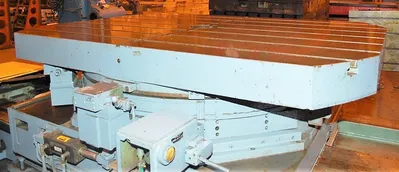

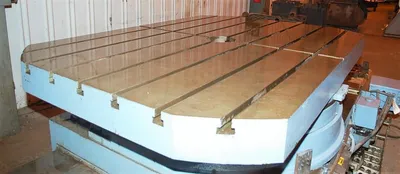

USED CINCINNATI-GILBERT AIR LIFT

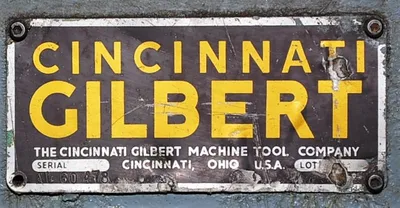

Serial Number: AL-60-478

CAPACITY:
T-Slotted Table Size: 60" x 84"
Rotary Table Height: 19.5"
Table Weight Capacity On Center: 20,000 Lbs
Table Weight Capacity Off Center: 15,000 Lbs
Table Weight Capacity On Center: 20,000 LBS
Number Of T-Slots: 7
Width Of T-Slots, Top: 1"
Width Of T-Slots, Bottom: 1.875"
Distance Between T-Slot Centers: 8"
Center Keyway Width: 1"
Shot Pin Locations (Degrees): 90, 180, 270, 360
Approximate Shipping Weight: 12,000 Lbs

Equipped With:
Air Lift, Hand Rotation
4-Position Shot Pin
1-Degree Graduated Scale
360 Degree Scale with 1/2 Degree Increments
Fixture Locating Keyway Degree Increments
Fixture Locating Keyway

NOTE:
Inspect In Our Philadelphia PA Warehouse
