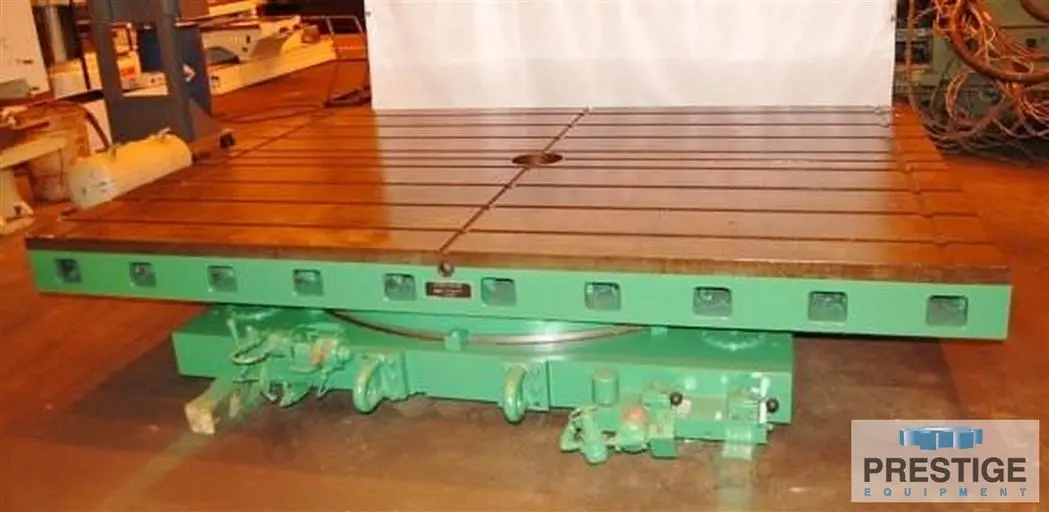

USED GIDDINGS & LEWIS HYDROSTATIC

SPECIFICATIONS:
Table Size: 84" x 120"
Base Size: 78" x 84"
Table Height Overall: 19"
Number Of T-Slots: 8
Width Of T-Slots Top: 1"
Width Of T-Slots Bottom: 1.875"
Depth Of T-Slots: 2"
Distance Between T-Slot Centers: 10"
Maximum Load Capacity: 50,000 LBS
360 Degree Scale Increments: 1/2 Degree
Approximate Shipping Weight: 23,700 LBS

Equipped With:
90 Degree Positioning
4-Shot Pin Positions
Fixture Locating Keyway
Power Clamping
Centerbore In Table Platen

NOTE:
Inspect Under Load

Features:
50,000 lb Load Capacity
4-Positive Shot Pin Locations
