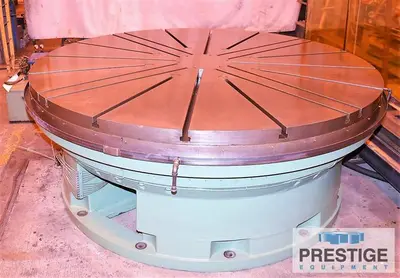

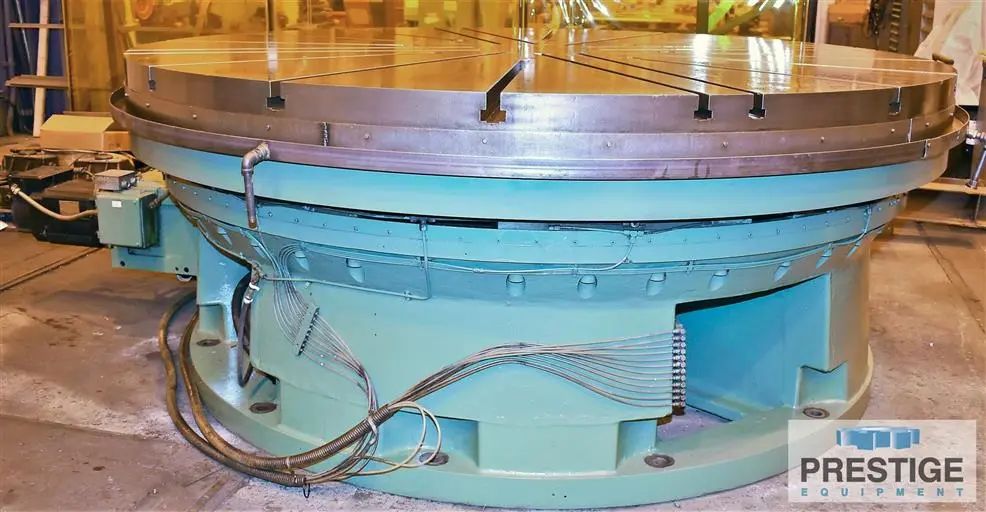

USED WALDRICH 50 TON B-AXIS

SPECIFICATIONS:
Table Diameter (Round): 120"
Table Rotary, B-Axis: 360,000
Table Speeds (Inf. Variable): .0024 - 1.26 RPM
Table Gear Range, Number: 3
Speed Range (1): .0024 RPM
Speed Range (2): .16 RPM
Speed Range (3): 1.26 RPM (Rapids)
Table Work Height: 30"
Table Loading Capacity: 50 Ton

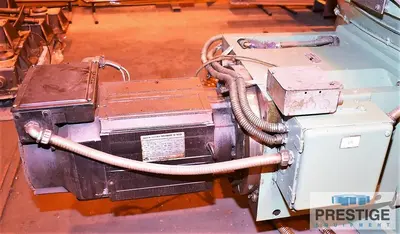

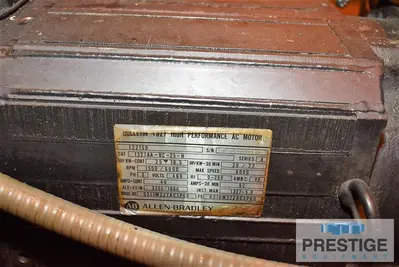

Table Motor (3-Phase): 20 HP / 10 HP

Equipped With:
3-Step Automatic Gearbox
Clockwise & Counter Clockwise Operation
Gear Pinion Drive

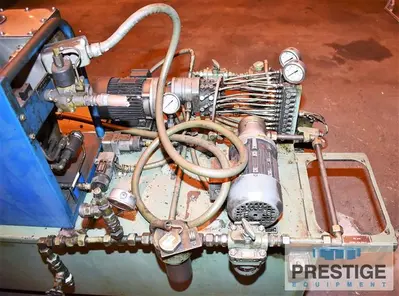

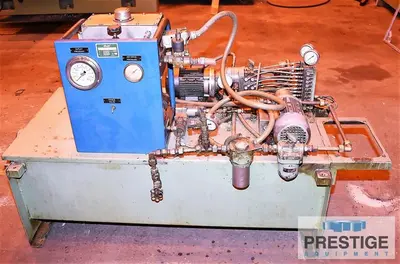

Hydraulic Clamping

NOTE:
Table Can Be Used For Turning & Positioning Operations

NOTE:
New Electric Clutches Installed 2023

Features:
50 Ton Load Capacity
B-Axis 360,000
