USED 2016 DORAL CORP. 6048

MAXIMUM WORK:
Maximum Plate Width: 62"
Maximum I-Beam: 30" x 48"
Misc Parts: Based On work fixture Design

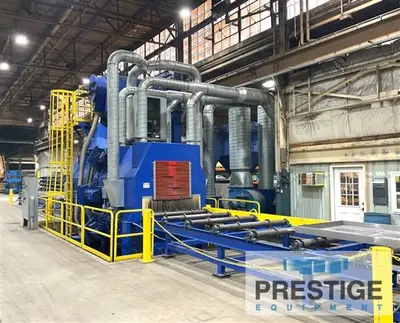

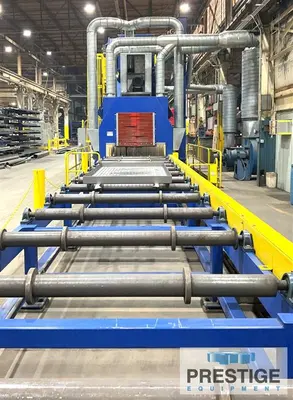

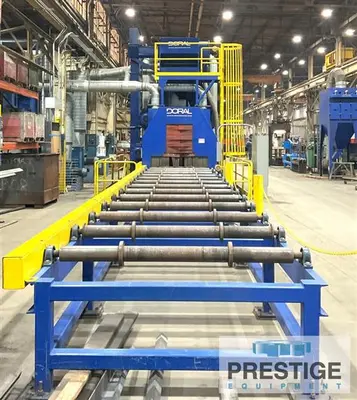

WORK CONVEYORS:
Speed, Variable: Powered
Roller Width: 68"
Total Length, Entry & Exit: 103'
Length, Entry: 40'
Length, Machine: 26'
Length, Exit: 40'
Roller Spacing Centerlines: 36"
Floor to Top Of Rollers: 36"
Roller Diameter: 4.5"

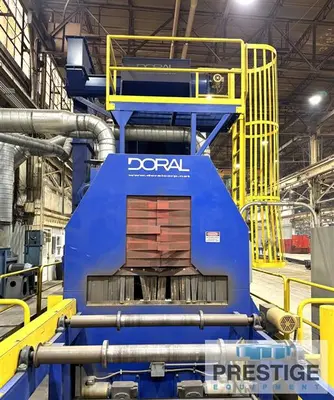

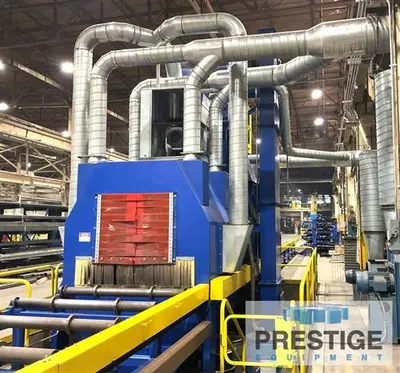

BLAST CABINET DIMENSIONS:
Length: 21'
Width: 15'
Height: 12'6"
Floorline To Top Of Elevator: 16'6"
Pit, Width: 15'
Pit, Length: 26'
Height, Bottom to top of Elevator: 20'

CABINET CONSTRUCTION:
12 to 14% Manganese Steel 1/2" Thick Blast Zone & Other Abrasive Contact areas:
3/16" & 1/4" Thick Mild Steel Entry & Exit Vestibules:
Length, Entry Vestibule: 5'2"
Length, Blast Cabinet: 8'
Length, Exit Vestibule: 7'3"
Rubber curtains & cast poly finger seals provide abrasive retention in Vestibules:

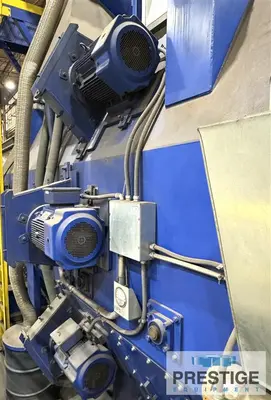

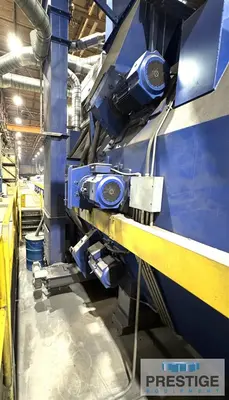

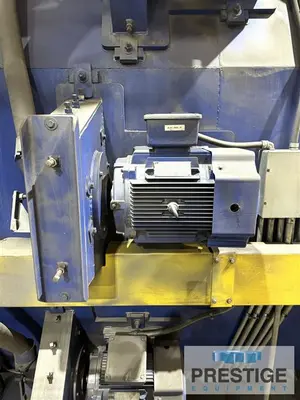

SHOT BLAST WHEELS:
North Star Blast Wheels direct drive premium wear plate package:
Horsepower: 25 HP / 3600 PRM
No Of Blast Wheels: 6
Position, top, bottom, center: 2,2,2
Diameter: 16"
(8) Blades Center Feed:
1/2" Thick 1-Piece front & rear Manganese steel liners:
1" Thick cat wear alloy liners top & end liners 5-piece:
Air Force One 30 HP Abrasive Blow Off:

ABRASIVE RECOVERY SYSTEM:
Lower & upper screw conveyors:

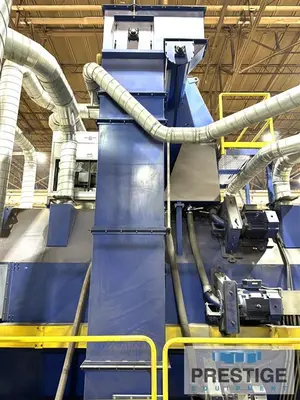

Bucket elevator with cast iron buckets:
Single lip airwash Seperator with screen trays:
Adjustable air volume:
2 HP Screw conveyor:
5 HP Bucket Elevator:

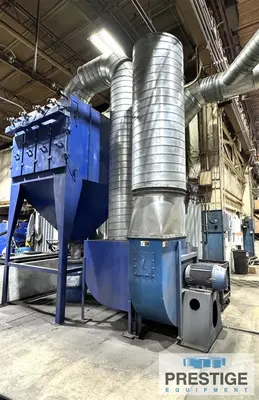

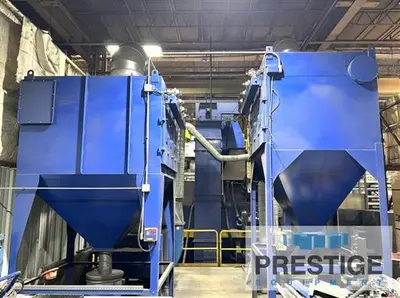

DUST COLLECTION:
SSC-12 SOC Cartridge Dust Collector Blower 20 HP, 7,200 CFM:
SSC-20 SOC Cartridge Dust Collector Blower 25 HP, 10,000 CFM:

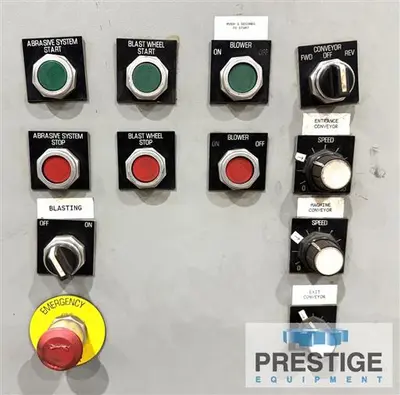

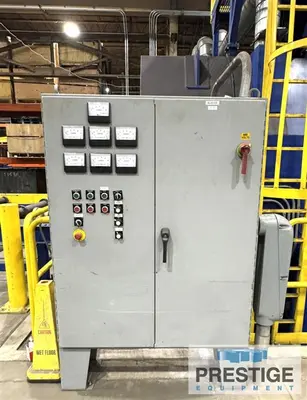

ELECTRICAL CONTROLS:

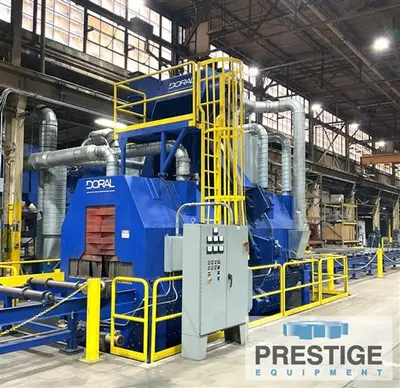

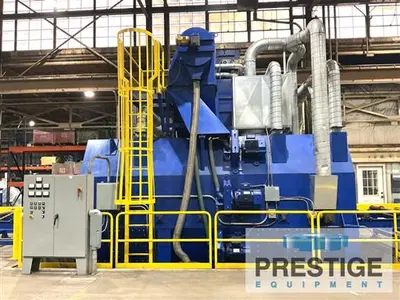

Nema 12 floor mounted cabinet, 72" H x 48" W:
Main Breaker, 480 V, 3 PH,60HZ, 400 AMP, All IE Control Components:
120 V Control Voltage:
E-STOPS Located On main Panel & Work Conveyors:

NOTE:
Excellent Condition, Under 100 Blasting Hours:
