| Max Thickness | 0.75" | 19.05 mm |
| Length of Blade | 168" | 4,267.2 mm |
| Back Gauge | 48" | 1,219.2 mm |
| Power | 40 hp | 29.8 kW |

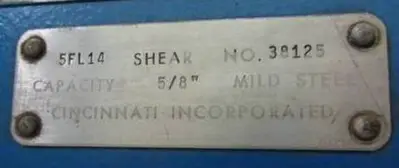

Nominal Capacity: 5/8"
Capacity @ Increased Rake: 3/4" x 14'
Distance Between Housings: 14'3"
Back Gauge Range: 48"
Throat Depth: 18"

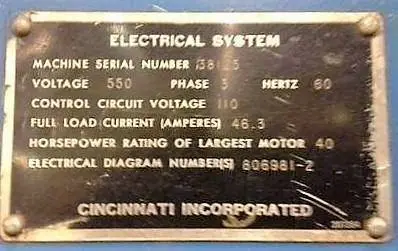

Motor: 40 HP
Approximate Shipping Weight: 53,000 Lbs
Equipped With:
48" Front Operated Power Back Guage
Adjustable Rake Angle
10' Squaring Arm
Front Support Arms
Electric Foot Switch
Dimensions: 198" L x 109 " W x 131" H - 53,000 LBS
