USED 2020 MARVEL 800A-PC3S-60

CAPACITY:
Nominal Capacity: 31.25" x 37.5"
Capacity, Blade at 45 Deg. (Right): 31.25" x 25.5"
Capacity, Blade at 45 Deg. (Left): 31.25" x 24"
Capacity, Blade at 60 Deg. (Right): 31.25" x 17.5"
Capacity, Blade at 60 Deg. (Left): 31.25" x 15.75"
Nominal Capacity, Rounds: 31.25"
Blade Length........................... 25': 25'
Blade Width: 2"
Blade Thickness........................ .063": .063"
Blade Speeds (Infinitely Variable)..... 60-400 FPM: 60-400 FPM
Table Height: 52"
Main Motor: 15 H.P.
Approximate Machine Weight: 15,000 Lbs.

Equipped With:

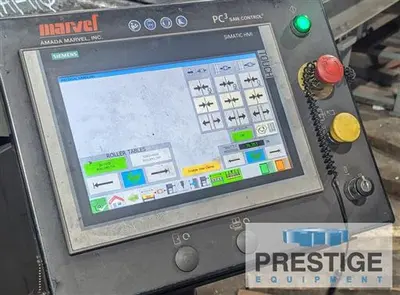

Marvel PC3 Programmable Control with 12" Display and Color Touch Screen
Automatic Bar Feed with 72" Stroke (Servo Driven w/ Encoder Feedback)
Electric Blade Drive with Sensor-Less Vector Control
Electric Tilting Column for Miter Cutting 60 Deg. Left and Right of Vertical
Standard 3-Degree Forward Approach Angle (Increased Efficiency for Structural)
Rotating Easy Load Combination Carbide & Ball Bearing Roller Guides
Hydraulically Controlled Blade Tension
Automatic Blade Break/Blade Stall Shut Off Switch
Hydraulically Upper Blade Guide Arm
Built-in Flood Coolant System

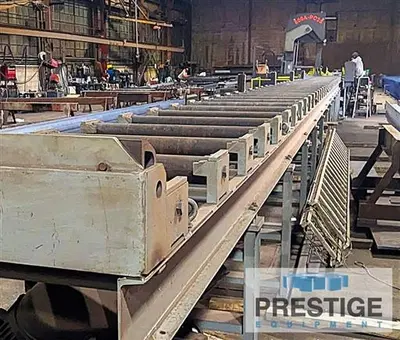

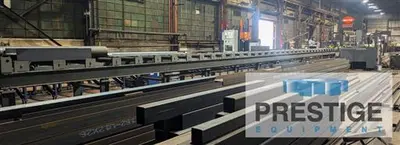

60' of Infeed and 60' of Outfeed Conveyors
Powered Chip Conveyor

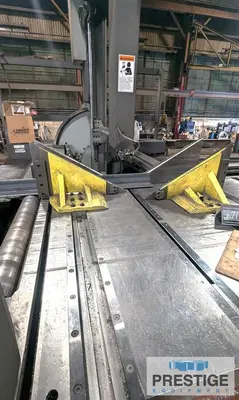

Variable Vise Pressure
Work Lift Rollers on Left & Right Side of Machine Bed
Second Machine Vise
Mist Lube (Automatic)
Pre-Plumbing for Hydraulic Hold downs in Future
Smart Guide Arm
Laser Alignment Light
Automatic Power Roller Extension

NOTE:
Inspect Under Power in Plant

Features:
Marvel PC3 Programmable Control with 12" Display and Color Touch Screen
Automatic Bar Feed with 72" Stroke (Servo Driven w/ Encoder Feedback)
Electric Blade Drive with Sensor-Less Vector Control
Electric Tilting Column for Miter Cutting 60 Deg. Left and Right of Vertical
60' of Infeed and 60' of Outfeed Conveyors
