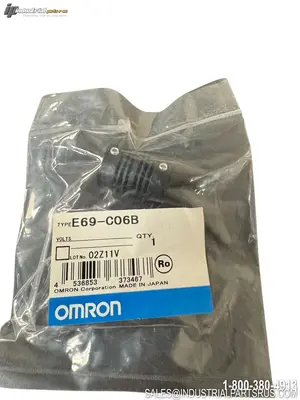

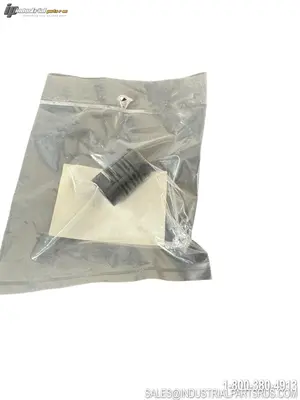

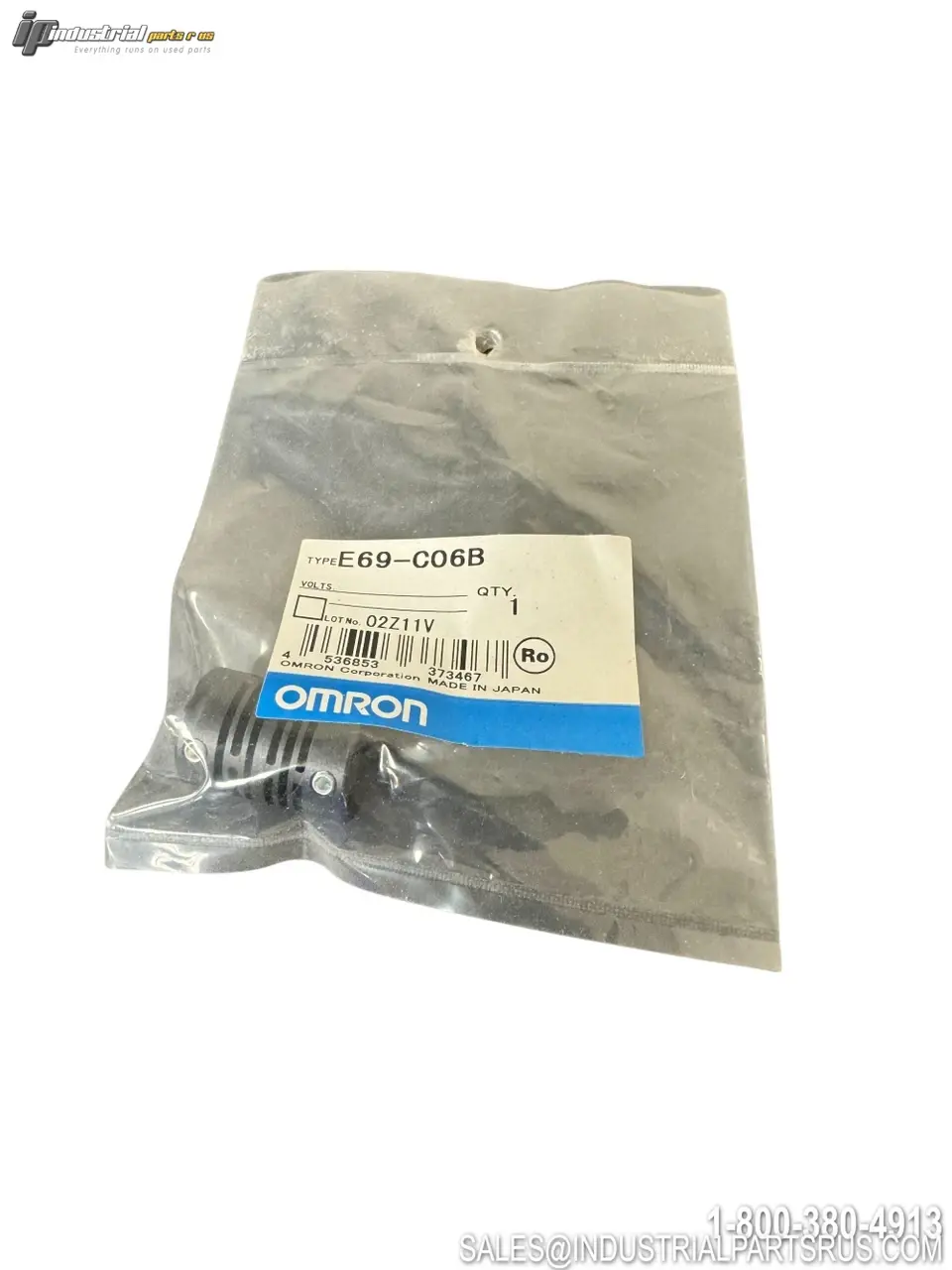

NEW OMRON E69-C06B

The Omron E69-C06B is a bellows-type shaft coupling designed as an accessory for Omron rotary encoders, including the E6B2-C, E6C2-C, E6D-C, and E6CP-A series. Constructed from glass-reinforced Polybutylene Terephthalate (PBT) resin, it is a standard (low-resolution) coupling featuring a lightweight design and low moment of inertia. It allows mounting even when shafts are significantly misaligned, reducing fatigue-related damage over extended use. The coupling operates at a 1:1 nominal ratio and is designed for horizontal shaft orientation.
Specification
Value
Brand
Omron
Model / Part Number
E69-C06B
Product Type
Bellows-Type Shaft Coupling (Encoder Coupling)
Series
E69
Design
Standard (Low Resolution)
Bore Diameter (ID)
6 mm
Outside Diameter (OD)
15 mm
Length
22 mm
Rated Torque
0.8 N·m
Maximum Rotational Speed
Not Rated (low-resolution coupling)
Body Material
Glass-Reinforced Polybutylene Terephthalate (PBT)
Fastener Type
M3 Hex Screw
Compatible Encoder Series
E6B2-C, E6C2-C, E6D-C, E6CP-A
RoHS Compliant
Yes
Manufacturer Status
Commercialized (Active)
We warranty all items for 30 days from date of purchase.
