| Angle (L1) | 2" | 50.8 mm |
| Angle (L2) | 2" | 50.8 mm |
| Angle (T) | 0.375" | 9.525 mm |
| Operation (Horz, Vert, Horz/Vert) | 'HORZ/VERT' | 'HORZ/VERT' |
| Power | 3 hp | 2.2 kW |
SPECIFICATION:
Roll Diameter: 7"
Turning Speed: 17 FPM
Angle Leg - Out: 2" x 2" x 3/8"
Tubing - Square........................ 2" x 2" x 1/8": 2" x 2" x 1/8"
Tubing - Rectangular: 3" x 1.5" x 1/4"
Solid - Square: 1.5" x 1.5"
Flat - Along Edge: 2.75" x .75"
Motor: 3 + 2 HP
Dimensions: 46" x 39" x 46"
Approx. Weight: 2,627 Lbs
Equipped With:
Universal Hardened & Ground Rolls
Side Support

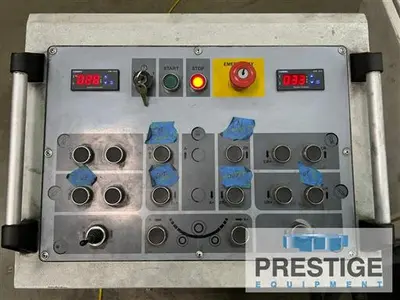

Portable Control Panel
Vertical/Horizontal Orientation
NOTE:
Inspect in Plant Under Power
Features:
Universal Hardened & Ground Rolls
Side Support
Portable Control Panel
Vertical/Horizontal Orientation
