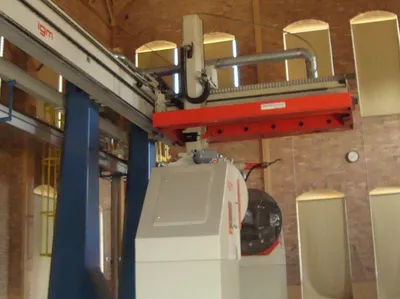

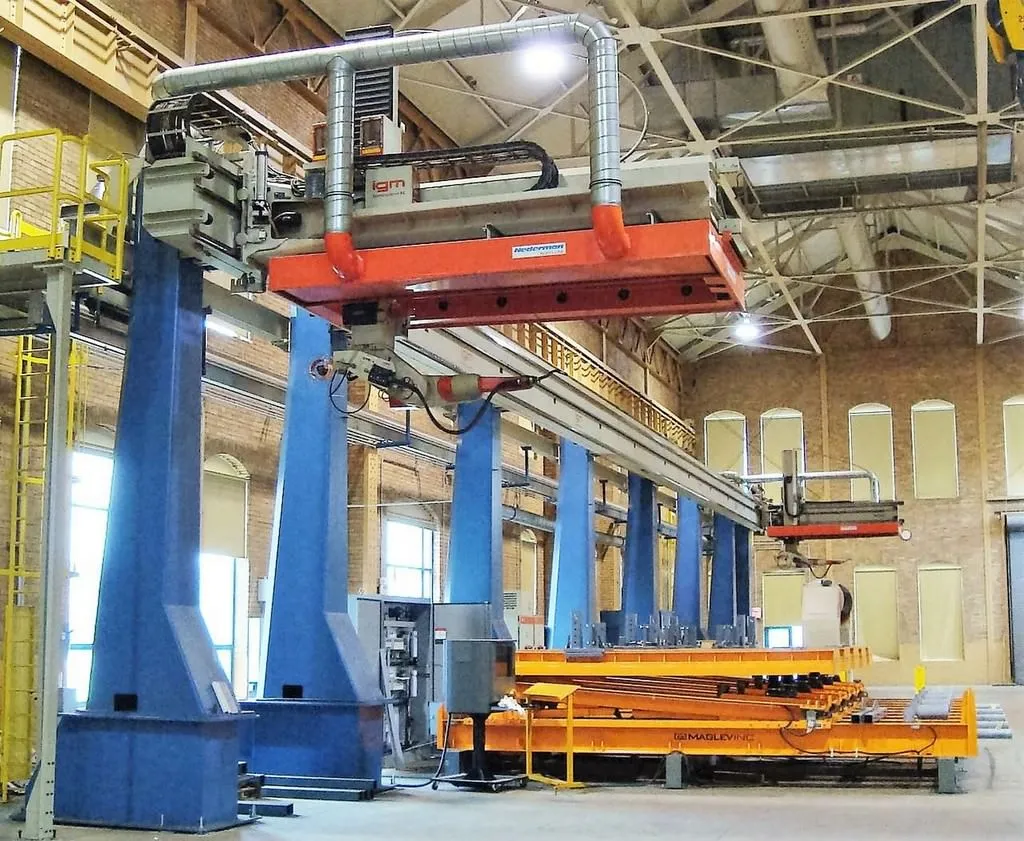

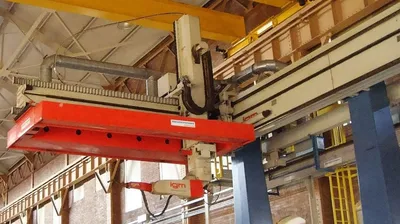

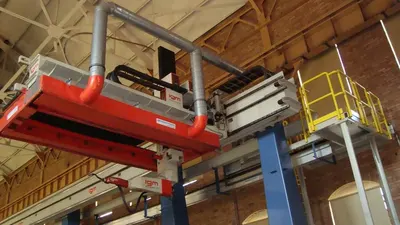

Gantry Travels:
Longitudinal Travel, X-Axis: 1377"
Cross Travel, Y-Axis: 118.11"
Ram Stroke, Z-Axis: 59"
Dia. Of Positioner Tables: 47.24"
Positioner Swing: 151"
Distance Between Pos. Tables, Min.: 39.37"
Distance Between Pos. Tables, Max.: 137.79"

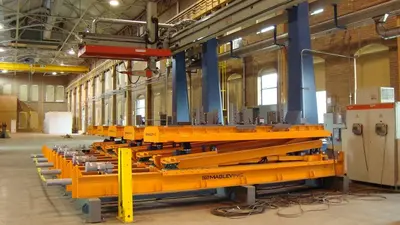

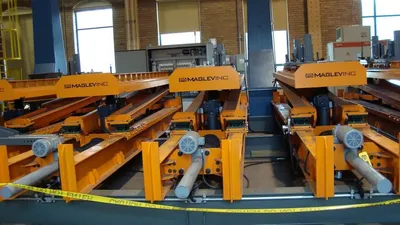

Scissore Table Size: 168" x 15.75"
Distance Between Scissor Tables: 27.55"
Equipped With:

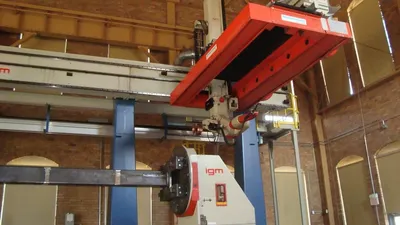

(2) IGM RT 330 6-Axis Robots
(2) Fronius TransPulse Synergistic 5000 Welding Power Sources
(2) Fronius Water Chillers
Nederman Dust Collection System

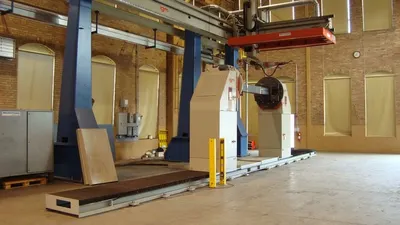

(2) 47.24" Dia. IGM RP 3000 A1-AC-1200DN Welding Positioners
