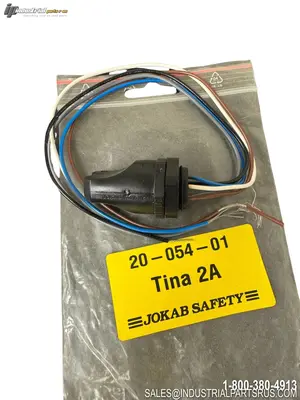

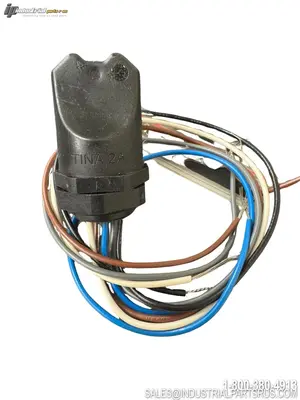

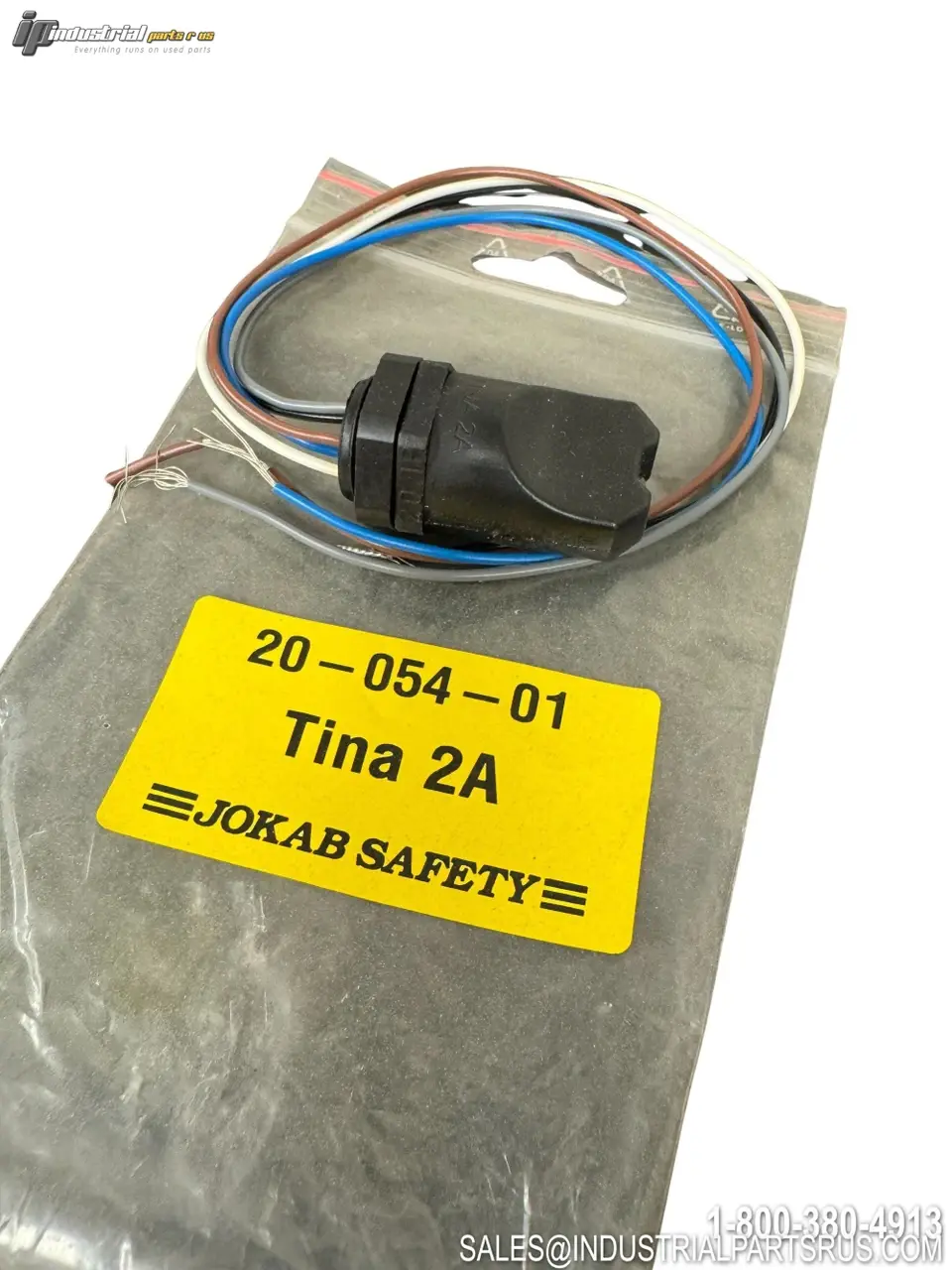

NEW JOKAB TINA 2A

The ABB Jokab Safety Tina 2A (Part No. 2TLA020054R0100) is a DYNlink adaptation unit designed to integrate traditional two-channel safety devices — such as emergency stop buttons and key switches with positively driven force-guided contacts — into the ABB DYNlink dynamic safety circuit. It mounts directly onto the device enclosure via an M20 cable entry and is compatible with ABB Vital and Pluto safety controllers as well as B&R X20 systems. The Tina 2A achieves the highest safety integrity ratings of SIL 3 (IEC/EN 61508, EN 62061) and Performance Level e / Category 4 (EN ISO 13849-1), enabling a cost-effective single-channel dynamic safety loop in place of conventional dual-channel wiring.
Specification
Value
Brand
ABB Jokab Safety
Model / Part Number
Tina 2A
Manufacturer Part Number (MPN)
2TLA020054R0100
Product Type
DYNlink Safety Adapter / Adaptation Unit
Operating Voltage
24 VDC (+15% / -25%)
Number of Safety Contacts
2 (positively driven force-guided)
Safety Integrity Level
SIL 3 (IEC/EN 61508, EN 62061)
Performance Level
PL e / Category 4 (EN ISO 13849-1)
PFHD
4.50 × 10⁻⁹
Total Current Consumption
17 mA (27 mA with max information output)
Information Output
~23 VDC, max 10 mA
Time Delay (in/out)
t < 60 µs
Dynamic Input Voltage (normal operation)
9–13 V RMS
Dynamic Output Voltage (normal operation)
9–13 V RMS
Protection Class (IP Rating)
IP67
Operating Temperature
-10°C to +55°C
Storage Temperature
-30°C to +70°C
Humidity Range
35–85% (no icing or condensation)
Housing Material
Polyamide (Macromelt OM646, V0 flammability)
Color
Black
Connector
5 × 0.34 mm² wires, 0.15 m pigtail (no M12)
Mounting Type
Direct mount via M20 cable entry on device enclosure
Dimensions (L × W × H)
46 × 27 × 24 mm
Weight
~30 g
LED Indication
Green (OK) / Red (fault/open circuit)
Compatible Safety Systems
ABB Vital 1/2/3, Pluto A20/B20/B22/B42/B46/D20/D45/O2/S20/S46, B&R X20
Applicable Standards
EN 60204-1, IEC/EN 61508-1…7, EN 62061, EN ISO 13849-1
EAN / Product ID
7350024451832
We warranty all items for 30 days from date of purchase.
