| Tonnage | 120 T | 108.862 t |
| Angle (L1) | 6" | 152.4 mm |
| Angle (L2) | 2.75" | 69.85 mm |
| Angle (T) | 0.5" | 12.7 mm |
| Power | 12.1 hp | 9 kW |
| Throat | 24" | 609.6 mm |
| Stroke | 3.15" | 80.01 mm |
SPECIFICATIONS:
Punch Tonnage Capacity: 120 Tons
Punch Capacity (.78" Mild Steel): 1.57" Diameter
Punch Capacity (1.1" Mild Steel): 1.10" Diameter
Throat Depth: 24"
Blade Length: 23.8"
Punch Work Height (From Floor): 45.9"
Punch Travel: 3.15"
Shear Capacity @ 90 Degree: 6" x 6" x .5"
Shear Capacity @ 45 Degree: 2.75" x 2.75" x .27"
Flat Shear Capacity: 24" L x .625" Thick
Flat Shear Capacity: 16" L x .750" Thick
Flat Shearing Work Height: 37.8"
Solid Round Bar Capacity: 1.97"
Square Bar Capacity: 1.97"
Strokes Per Minute: 28 SPM
Motor: 12.1 HP
Copper Plate Size: .560 Lbs.
Copper Capacity: 3.93" L x 3.54" D x 2" W
Equipped With:

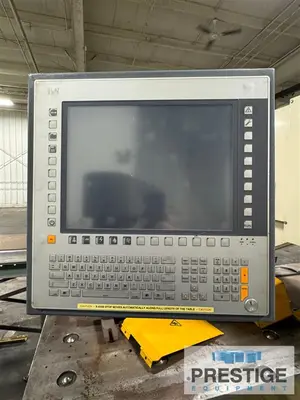

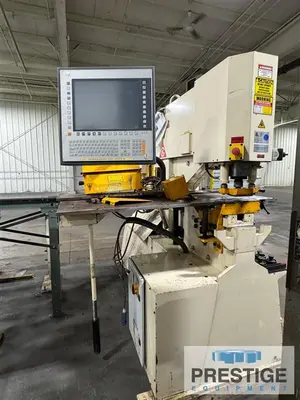

Semi-Paxy CNC Control System
Dual Cylinder Operation
Dual Remote Electric Foot Pedals
Optional 24" Deep Throat
Optional 2-Speed Hydraulic System W/Electric Control
Rectangular Coper On Shear End

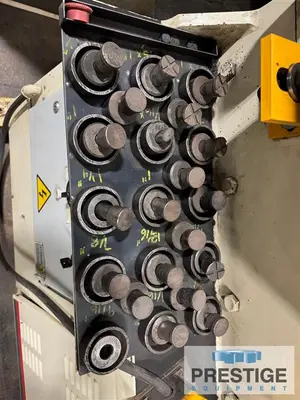

Quick Change Punch & Die Holder w/Adjustable Swing Away Stripper
(2) Foot Pedal Operating Controls
Work Light
12 HP 3/60/230-460 Volt w/Full Stroke Or Jog Selector Switch
Misc. Tooling
