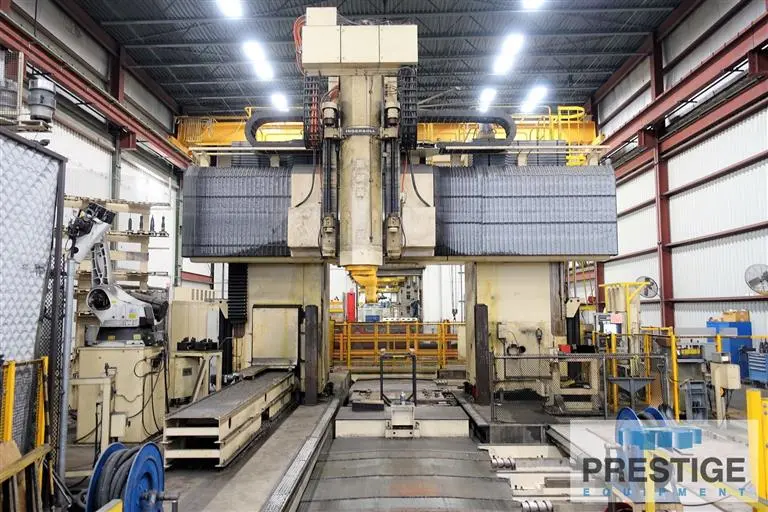

| X-Axis | 393.7" | 10,000 mm |
| Y-Axis | 217.1" | 5,514.3 mm |
| Z-Axis | 59.05" | 1,499.9 mm |
| Power | 140 hp | 104.4 kW |
| RPM | 2,700 RPM | 2,700 RPM |
| # ATC | 291 | 291 |
| Taper | HSK160 | HSK160 |
| Table-W | 98.43" | 2,500.1 mm |
| Table-L | 196.85" | 5,000 mm |
TRAVELS:
X-Axis, Table Travel: 393.7"
Y-Axis, Horizontal Head Travel: 217.1"
Z-Axis, Ram Stroke: 59.05"
W-Axis, Rail Travel: 59.05"
A-Axis, Twist Head Rotation: 360,000 Positions
C-Axis, Twist Head Rotation: 360,000 Positions
SPECIFICATIONS:
Distance Between Columns: 132"
Distance Ram Face to Table: 140"
Pallet Size: 98.43" x 196.85"
Pallet Capacity: 44,000 lbs
Spindle Motor: 140 HP
Spindle Speeds: See Heads
Number of Spindle Units: 4
Feed Rate, X-Axis: 1181 IPM
Feed Rates, Y & X Axis: 1575 IPM
Feed Rate, W-Axis: 393 IPM
Power Requirements: 460/3/60 650 KVA
Full Load: 780 AMPS
Main Breaker: 1000 AMPS
SPINDLE UNITS:

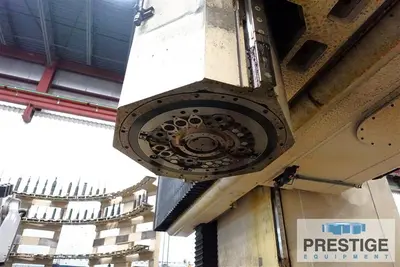

2-Axis Orthogonal Twist Head, HSK160, 134 HP, 0 to 2700 RPM:

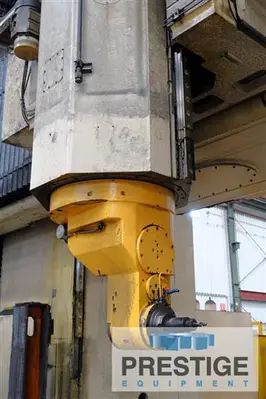

Right Angle Milling Head, HSK100, 31 HP, 0 to - 1000 RPM:
Right Angle Milling Head, HSK100, 53 HP, 0 to 2000 RPM:
Swivel Head, HSK63A, 16 HP, 0 to 800 RPM:
Equipped With:

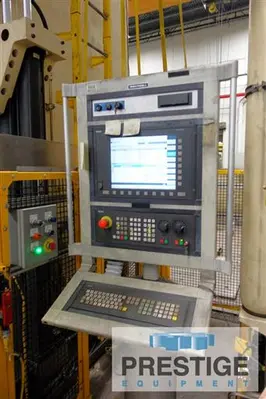

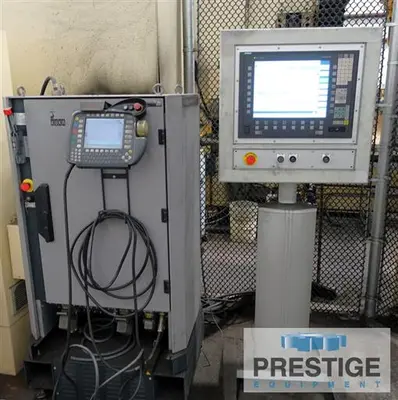

Siemens 840D CNC Control

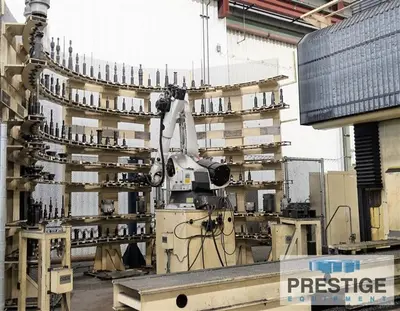

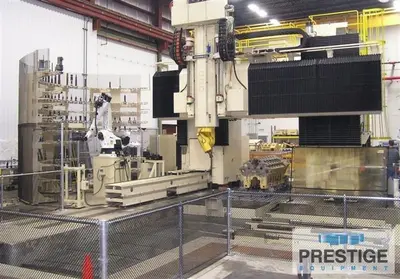

291 Station Automatic Tool Changer

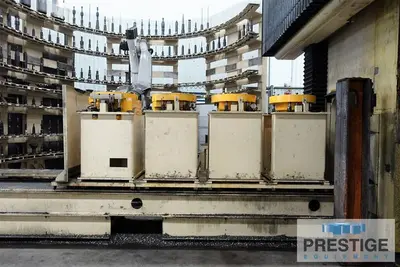

4-Station Automatic Attachment Changer

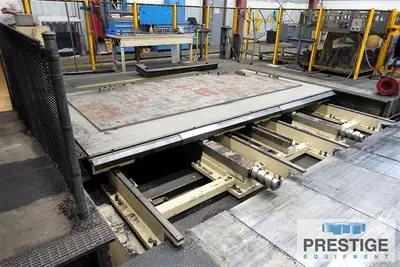

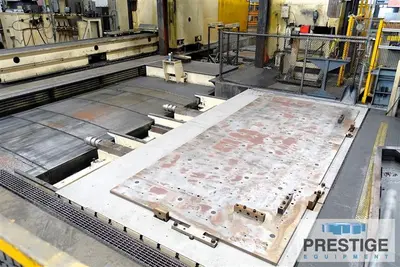

Pallet Shuttle with (2) 98" x 196" Pallets
Through Spindle Coolant
Renishaw Probe System
Gun Drilling Attachment
Chip Conveyor
Features:
Siemens 840D CNC Controls
Pallet Shuttle System
(4)Interchangeable Spindle Units
Gun Drilling Attachment
Renishaw Probe
