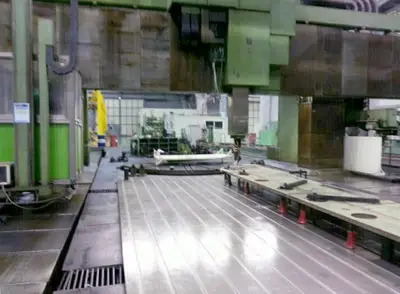

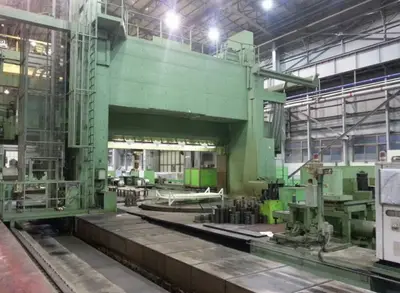

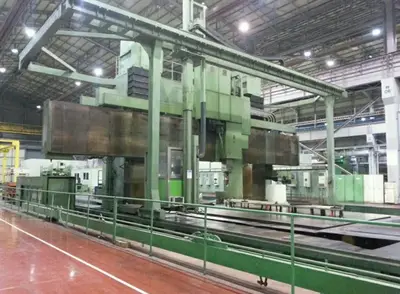

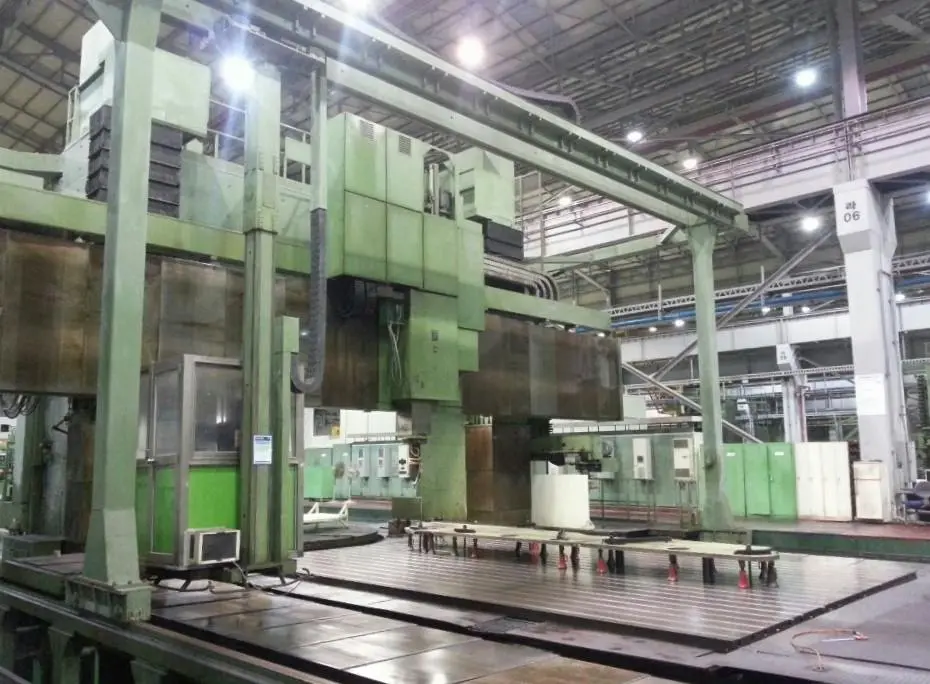

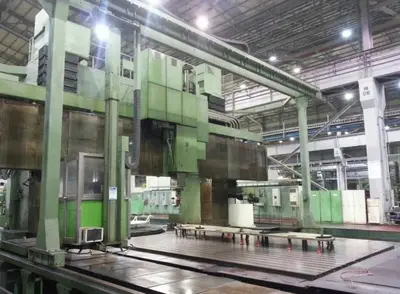

USED 1992 SCHIESS 63 FZG MILLTURN
Overview
Specifications
| X-Axis | 748.03" | 19,000 mm |
|---|---|---|
| Y-Axis | 295.27" | 7,499.9 mm |
| Z-Axis | 98.42" | 2,499.9 mm |
| RPM | 2,500 RPM | 2,500 RPM |
| # ATC | 110 | 110 |
| Taper | ISO 50 | ISO 50 |
| Table-W | 196.85" | 5,000 mm |
| Table-L | 314.96" | 8,000 mm |
TRAVELS:
X-Axis Gantry Travel: 748.03"
Y-Axis Milling & Turning Head Travel: 295.27"
W-Axis Cross Rail Vertical Travel: 98.42"
Z-Axis Ram Travel: 62.99"
MILLING & TURNING HEAD:
Y-Axis Cross Travel: 295.27"
Z-Axis Vertical Ram Travel: 62.99"
Spindle Taper: ISO 50
Live Spindle Speeds: 2-2500 RPM
Cross Section of Ram: 18.11" x 14.98"
Automatic Tool Changer: 110 Positions
SPECIFICATIONS:
Table Size Overall: 314.96" x 196.85"
Rotary Table Diameter B-Axis: 177.16"
Distance Between Housings: 255.90"
Maximum Distance Table To Spindle: 137.79"
Table Weight Capacity: 16,800 Lbs/Sq. Ft.
Rotary Table Weight Capacity: 138,891 Lbs.
Gantry Travel, X-Axis Feeds: .003-118.11 IPM
Gantry Travel, X-Axis Rapid Traverse: 393.70 IPM
INTEGRATED B-AXIS ROTARY TABLE:
Table Diameter: 177.16"
Table Indexing, B-Axis: 360,000 Positions
Table Gear Ranges: 2
Table Speeds (Gear I): .63-16 RPM
Table Speeds (Gear II): 2.5-63 RPM
Base Speed: 5 RPM
Table Load Capacity: 139,000 Lbs.
Table Feed Rate: .00001-1 RPM
Equipped With:
Siemens Sinumerik 850 CNC Control
Elevating Operator Stations with Controls
110 Station Automatic Tool Changer
Boring, Milling and Grinding Heads, Including: Right Angle Milling Heads,
Additional Special Milling Heads, Manual and NC Boring Heads
Telescoping Steel Way Covers
Chip Conveyor
Features:
Travelling Gantry Planer Mill/Vertical Turning Center W/Integrated Rot
177" Diameter Integrated Mill/Turn Rotary Table
Ram With Live Spindle and Right Angle Heads
Siemens Sinumerik 850 CNC Control
