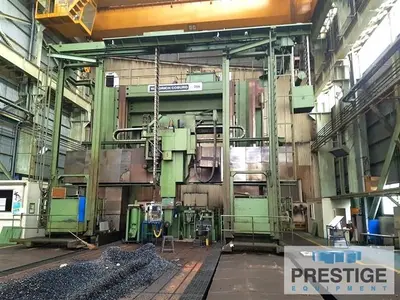

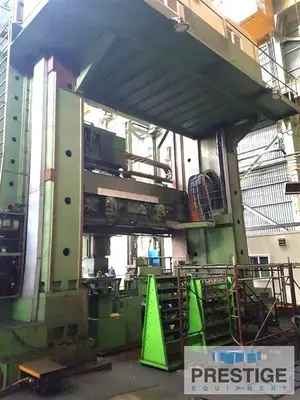

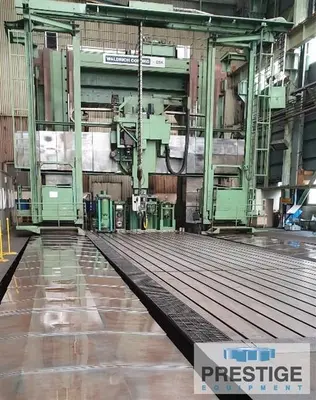

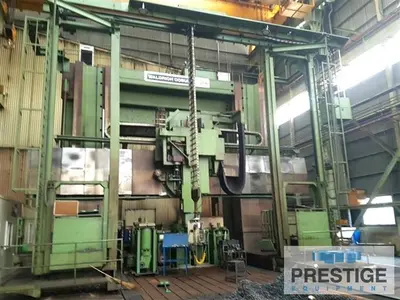

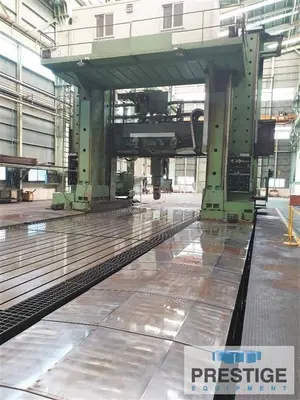

USED 2009 WALDRICH COBURG 5-FACE GANTRY MILL
Overview
Specifications
| X-Axis | 826.77" | 21,000 mm |
|---|---|---|
| Y-Axis | 255.9" | 6,499.9 mm |
| Z-Axis | 39.37" | 1,000 mm |
| Power | 134 hp | 99.9 kW |
| RPM | 2,000 RPM | 2,000 RPM |
| Taper | 1PH7224-2NF15-OBAO | 1PH7224-2NF15-OBAO |
| Table-W | 177.16" | 4,499.9 mm |
| Table-L | 787.74" | 20,009 mm |
CAPACITY:
Distance Between Columns Covers: 204.72"
Height Under Spindle Nose: 208.66
TRAVELS:
X-Axis Gantry Travel: 826.77"
Y-Axis Head Travel: 255.90"
Z-Axis Ram Stroke: 39.37"
W-Axis Cross Rail Vertical Travel: 138.19"
SPECIFICATIONS:

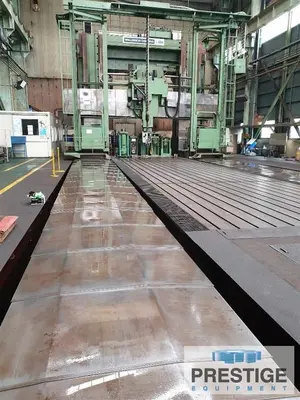

T-Slotted Work Surface: 787.74" x 177.16"
Work Surface Weight Capacity: 350 Ton
Spindle Motor: 134 HP
Spindle Speeds: To 2,000 RPM
Spindle Taper: 1PH7224-2NF15-OBAO
Ram Cross Section: 24.01" x 27.56"
C-Axis, Auto Indexing:
Machine Footprint: 1,299" x 590"
Machine Height: 413"
Machine Weight: 530 Ton
Equipped With:

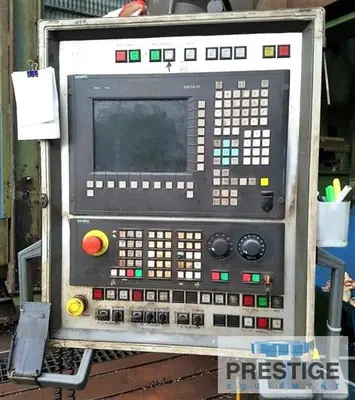

Siemens Sinumerik 840D CNC Control
Pendant Mounted CRT
Telescoping Steel Way Covers

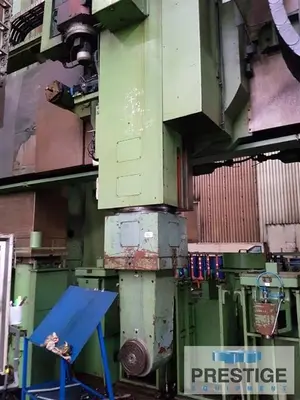

Spindle Unit Attachments Including;
Angular, Horizontal, Eccentric, Slim, Long & Short Extensions
NOTE:
Fully Rebuilt and CNC Retrofit in 2009
Features:
Fully Rebuilt & Retrofit In 2009
Siemens Sinumerik 840 D
Travelling Gantry Design
Adjustable Rail
