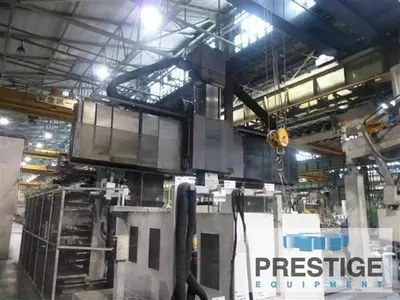

USED 2005 TOSHIBA MPC2665B
Overview
Specifications
| X-Axis | 295.27" | 7,499.9 mm |
|---|---|---|
| Y-Axis | 133.85" | 3,399.8 mm |
| Z-Axis | 35.43" | 899.92 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 3,000 RPM | 3,000 RPM |
| # ATC | 180 | 180 |
| Table-W | 86.6" | 2,199.6 mm |
| Table-L | 255.9" | 6,499.9 mm |
CAPACITY:
X-Axis, Table Travel: 295.27"
Y-Axis, Spindle Head Cross Travel: 133.85"
Z-Axis, Ram Stroke: 35.43"
W-Axis, Crossrail Vertical Travel: 62.99"
Distance Between Columns: 102.36"
Distance, Right Ang. Head to Table: 68.50"
Ram Cross Section: 14.96" x 14.96"
Table Size: 86.6" x 255.9"
Table Weight Capacity: 88,000 Lbs.
Spindle Speeds: 5-3000 RPM
Rapid Feed (X, Y Axes): 787.4 IPM
Rapid Feed (Z Axis): 354.3 IPM
Rapid Feed (W Axis): 393.7 IPM
Feedrates (X,Y,Z Axes): .03-236.2 IPM
Feedrates (W Axis): .03-118.1 IPM
Equipped With:

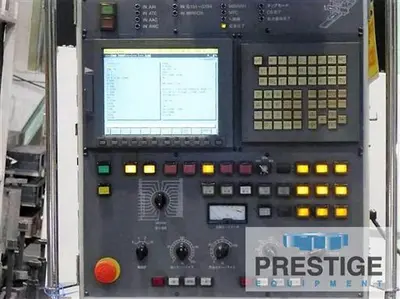

Fanuc 15i-MB NC Control

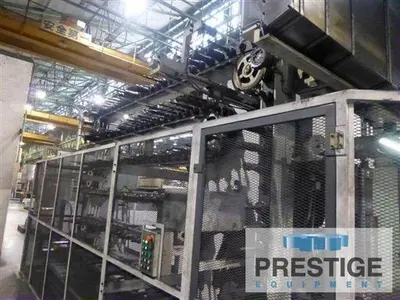

180-Position Automatic Tool Changer
Pallet Shuttle with Twin Pallets
Automatic Attachment Changer
Right Angle Head with Auto Indexing
30 Degree Milling Attachment
Snout Extension Attachment

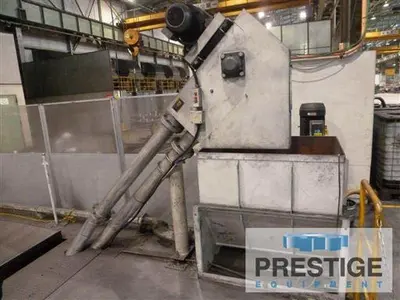

Chip Conveyor
Coolant System
40 HP / 30 HP Spindle Motor
Features:
Fanuc 15i-MB CNC Control
180-Station Automatic Tool Changer
88,000 Lb Pallet Weight Capacity
5-Face Machining
