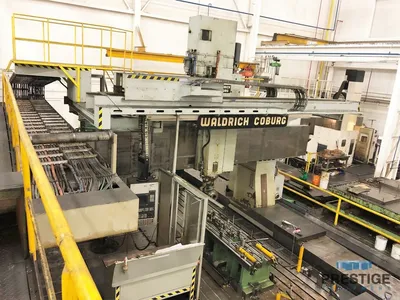

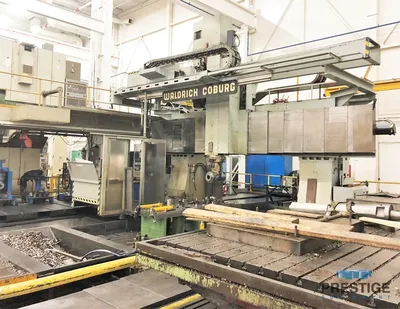

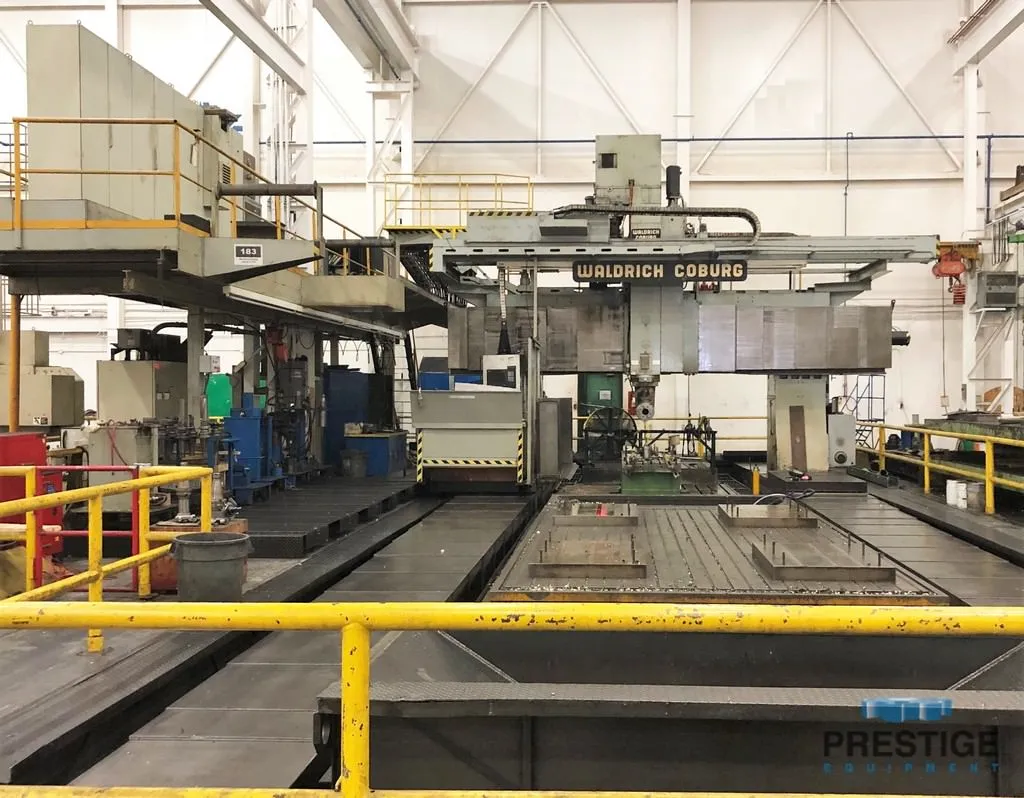

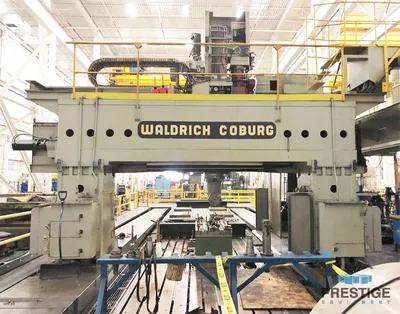

USED 2013 WALDRICH 15-10 GM 300 NC
Overview
Specifications
| X-Axis | 669" | 16,993 mm |
|---|---|---|
| Y-Axis | 189" | 4,800.6 mm |
| Z-Axis | 59.05" | 1,499.9 mm |
| Power | 80 hp | 59.7 kW |
| RPM | 3,000 RPM | 3,000 RPM |
| Taper | #50 & #60 ISO | #50 & #60 ISO |
| Table-W | 118" | 2,997.2 mm |
| Table-L | 630" | 16,002 mm |
CAPACITY:
Gantry Travel, X-Axis: 669"
Head Travel, Y-Axis,: 189"
Ram Stroke, Z-Axis: 59.05"
Distance Between Columns: 149.6"
Distance Table To Ram Face: 90.55"
Table Size: 118" x 630"
Spindle Taper: #50 & #60 ISO
Spindle Speeds, 2-Ranges: .04 - 3000 RPM
Spindle Motor, Siemens: 80 HP
EQUIPPED WITH;:

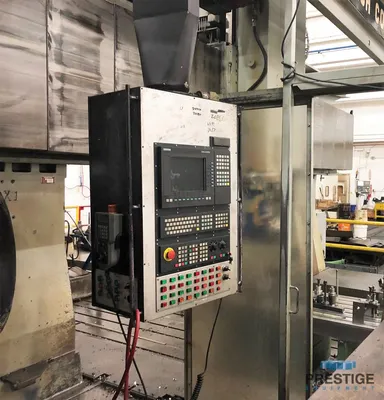

Siemens 840D CNC Control (Retrofit 2013):
(1) Right Angle Head, Model WFU 250 w/ ISO 50 taper & Auto Indexing:
(1) Right Angle Head, Model WFU 500 w/ ISO 60 Taper & Auto Indexing:
Heidenhain Glass Scales on All Axis:
Rigid Tapping:
Trolley with Tool Holders:
Steel Sliding Way Covers on X & Y Axis:
(2) Chip Conveyors:
NOTE:
New Control, All New Wiring, New Electrical Cabinets:
All New Siemens AC Motors and Drives:
Features:
Siemens 840D CNC Control (Retrofit 2013)
(1) Right Angle Head, Model WFU 250 w/ ISO 50 taper & Auto Indexing
(1) Right Angle Head, Model WFU 500 w/ ISO 60 Taper & Auto Indexing
Heidenhain Glass Scales on All Axis
Rigid Tapping
New Control, All New Wiring, New Electrical Cabinets
New Motors, New Main Drive & Motor
