| X-Axis | 181.1" | 4,599.9 mm |
| Y-Axis | 36.61" | 929.89 mm |
| Z-Axis | 24.6" | 624.84 mm |
| RPM | 24,000 RPM | 24,000 RPM |
| # ATC | 20 | 20 |
| Taper | HSK-F63 | HSK-F63 |
CAPACITY:
X-Axis Traverse Path: 181.10"-368.11"
Y-Axis Traverse Path: 36.61"
Z-Axis Traverse Path: 24.60"
A-Axis: +/- 120 Degrees
Maximum Machinable Length: 161.41"-334.64"
Maximum Milling Blade Diameter: 5.90"
Adjustable Electro Spindle Speeds: 0-24,000 RPM
Spindle Taper: HSK-F63
Approximate Dimensions: 437" x 71" x 91"
Equipped With:

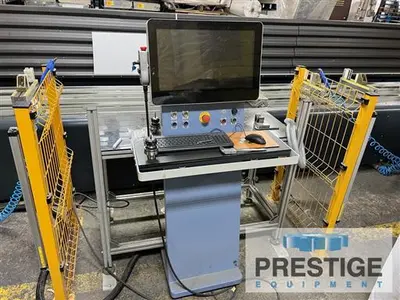

Haffner CNC Control
9 Tool Stations

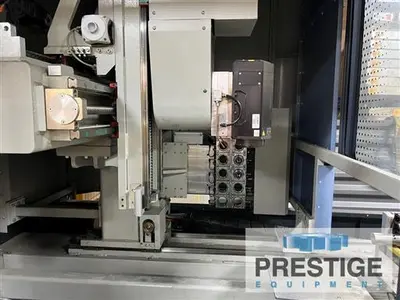

2-Axis Milling Head
20-Automatic Tool Changer
Thru Spindle Coolant

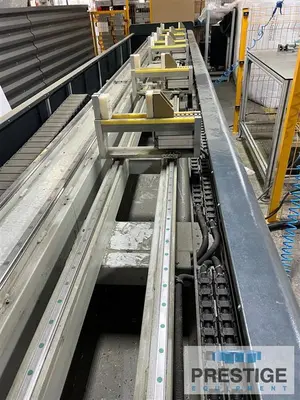

Automatic Clamp Recognition & Clamp Positioning
Mist Collector

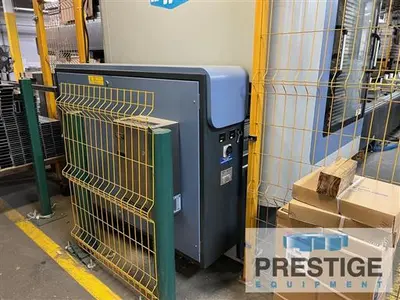

Chiller Unit
Chip Conveyor
NOTE:
Inspect in Plant Under Power
