| X-Axis | 40" | 1,016 mm |
| Y-Axis | 20" | 508 mm |
| Z-Axis | 17.72" | 450.09 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 32 | 32 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 20" | 508 mm |
| Table-L | 48.37" | 1,228.6 mm |
SPECIFICATIONS:
X-Axis Travel: 40"
Y-Axis Travel: 20"
Z-Axis Travel: 17.72"

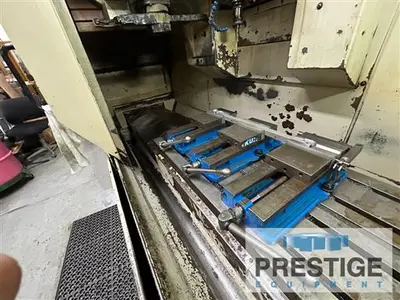

Table Size: 48.37" x 20"
Maximum Table Load: 1540 Lbs.
Spindle Nose To Table Top: 14.17"-31.89"
Spindle Taper: CAT 40
Spindle Speeds: 15,000 RPM
Spindle Motor: 20 HP
Tool Changer: 32 ATC
Rapid Traverse, X & Y Axes: 1417 IPM
Rapid Traverse, Z-Axis: 1187 IPM
Cutting Feed Rate: 0.04-1191 IPM
A`prox. Weight: 16,300 LBS
Machine Floor Space: 135" x 108"
Machine Height: 110"
Equipped With:

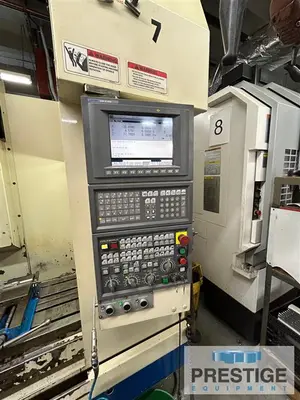

OSP-E100M CNC Control
4th-Axis Interface
32-Position Automatic Tool Changer
Chip Conveyor
NOTE:
Inspect in Plant Under Power
