| X-Axis | 51.2" | 1,300.5 mm |
| Y-Axis | 26.4" | 670.56 mm |
| Z-Axis | 24.6" | 624.84 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 30 | 30 |
| Taper | Big Plus CAT40 | Big Plus CAT40 |
| Table-W | 26.4" | 670.56 mm |
| Table-L | 59.1" | 1,501.1 mm |
SPECIFICATIONS:
Travels:
X-Axis: 51.2
Y-Axis: 26.4"
Z-Axis: 24.6"
Rapid Traverse Rates X & Y Axis: 1417 IPM
Rapid Traverse Rates Z Axis: 1181 IPM
Table Size: 59.1" x 26.4"
Max Weight on Table: 2866 lbs
Speed Range: 8000 RPM
Taper Size: Big Plus CAT40
Spindle Power: 15 HP

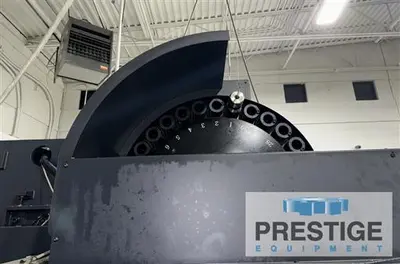

Automatic Tool Changer: 30 Side Mounted
Max Tool Weight: 17.6 lbs
Max Tool Diameter: 3.2" - 4.9"
Max Tool Length: 11.8"
Power: 220V/35 KVA/3-Phase
Overall Dimensions: 102" x 131.9" x 122.8"
Weight: 17,650 lbs.
Equipped With:

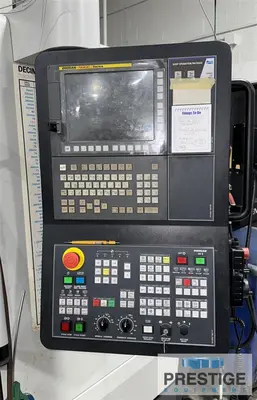

Doosan-Fanuc iSeries Control
30-Position Automatic Tool Changer

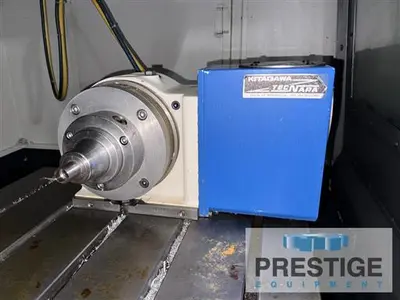

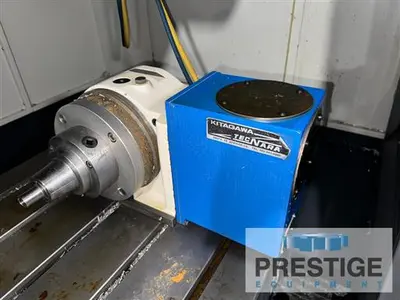

Integrated 10" Kitagawa 4th Axis Rotary Table
Easy Operation Package
Renishaw Probe System
Remote Hand Wheel
Rigid Tapping
USB Drive
Telescopic Way Covers

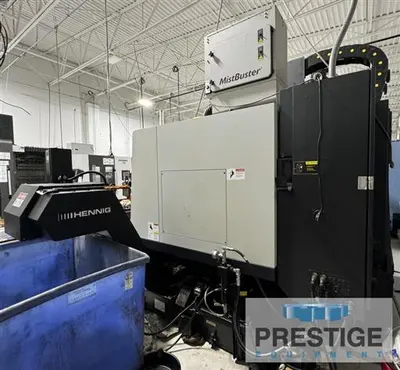

Mist Collector

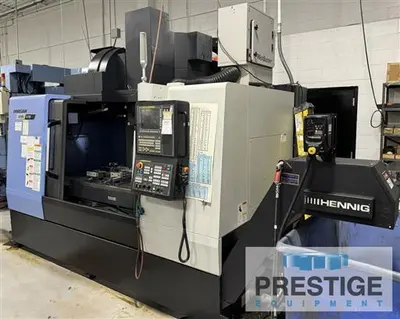

Hennig Chip Conveyor
Features:
Doosan-Fanuc iSeries Control
30-Position Automatic Tool Changer
Integrated 10" Kitagawa 4th Axis Rotary Table
Easy Operation Package
Remote Hand Wheel
Renishaw Probe System
Rigid Tapping
USB Drive
Telescopic Way Covers
Mist Collector
Hennig Chip Conveyor
