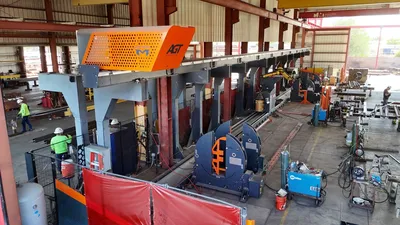

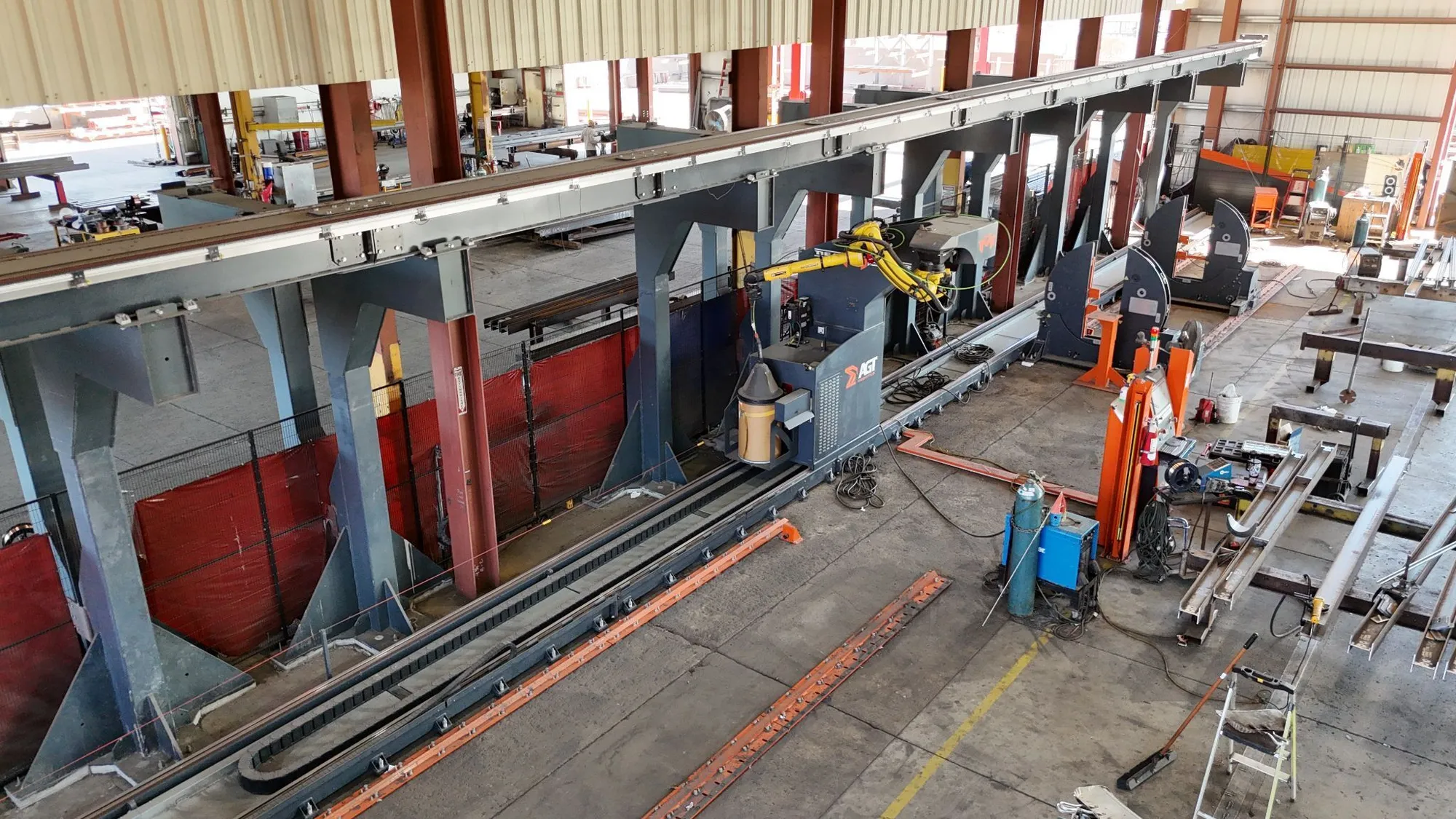

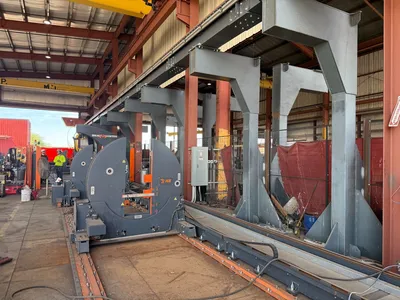

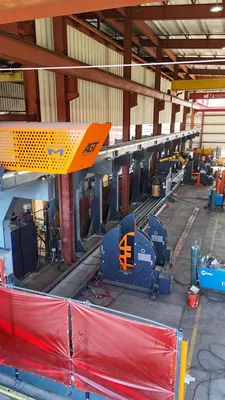

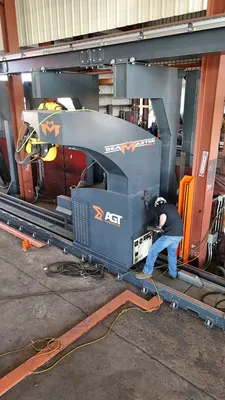

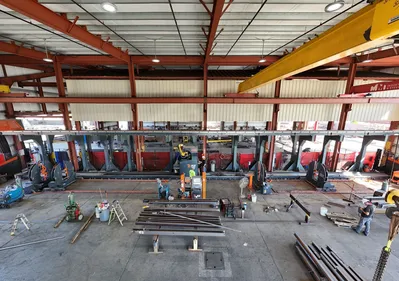

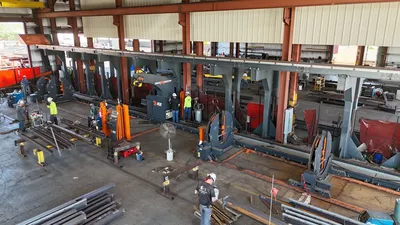

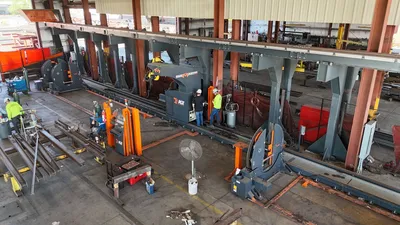

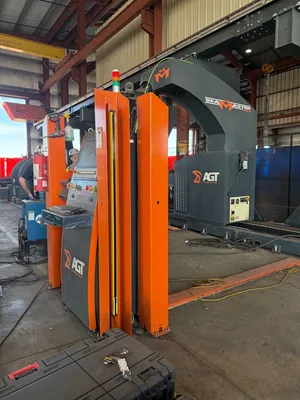

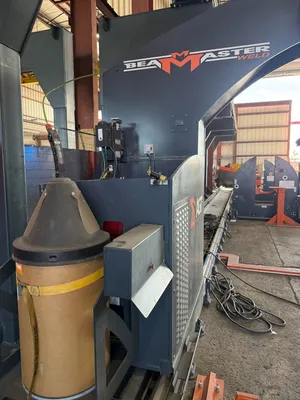

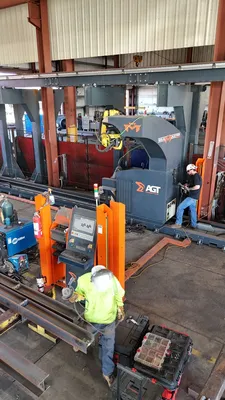

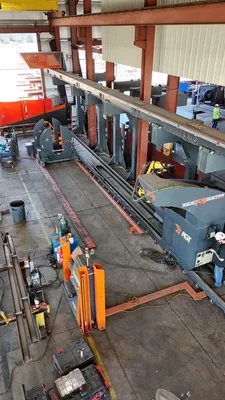

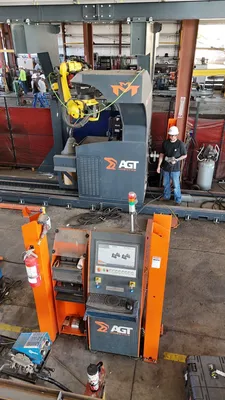

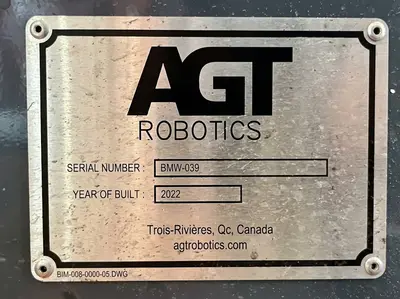

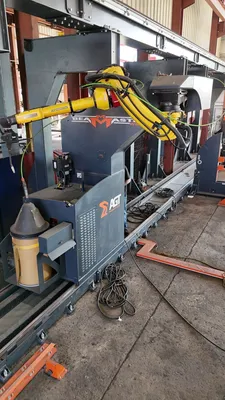

USED 2022 AGT BM48R2.R

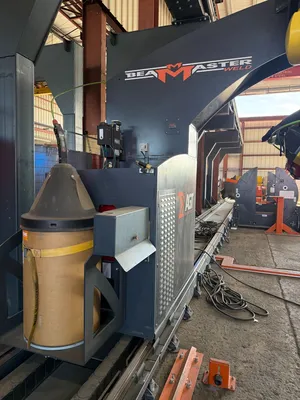

BeamMaster Model: [50.BM4BR2.R]

* 1 Robot
* 2 Working Zones

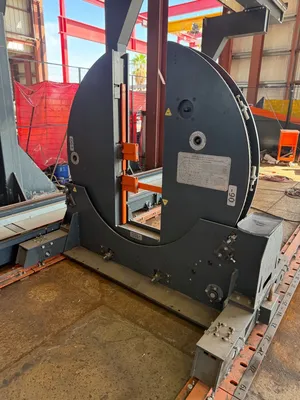

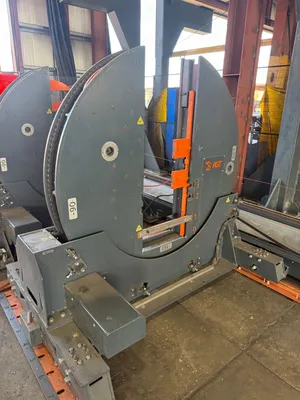

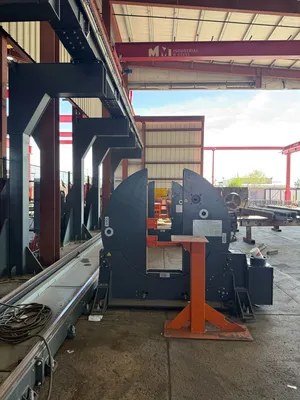

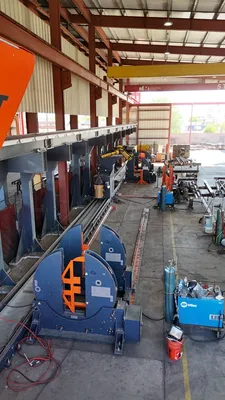

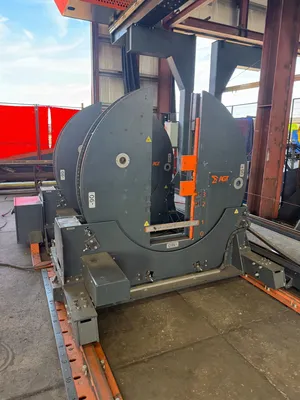

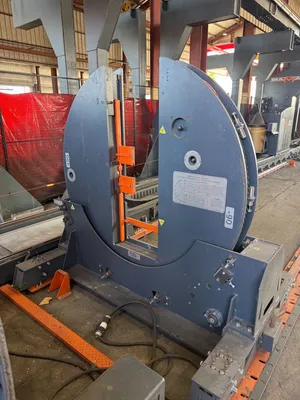

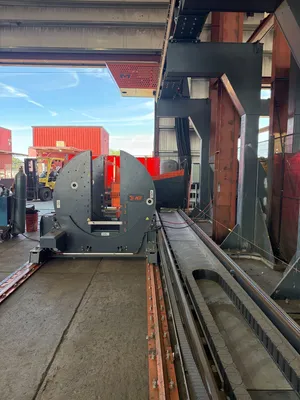

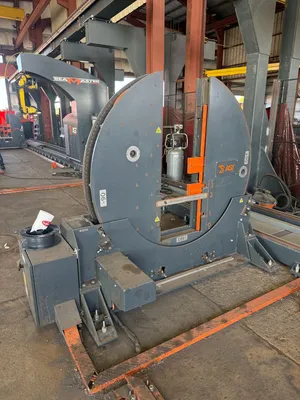

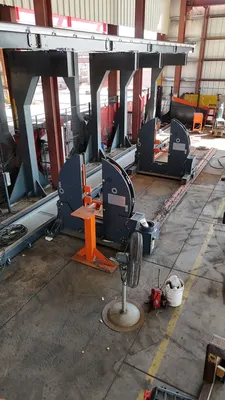

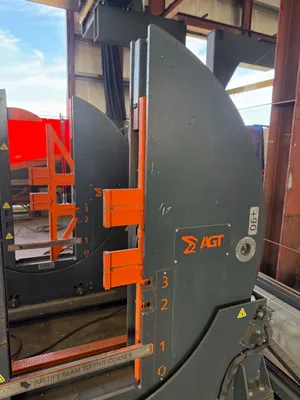

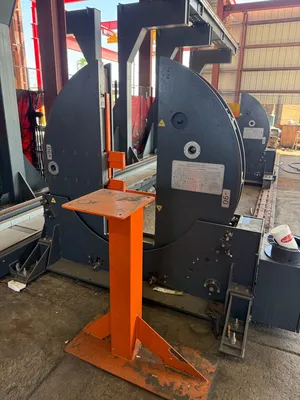

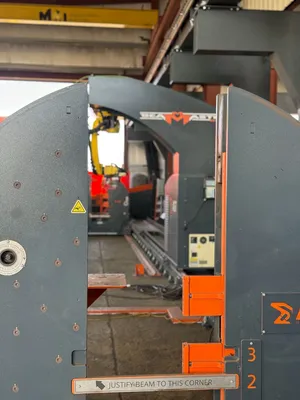

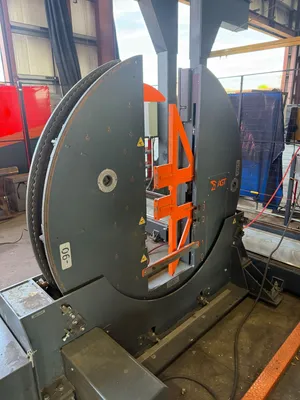

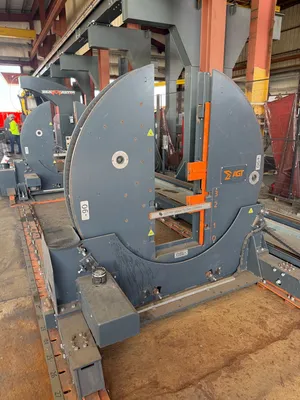

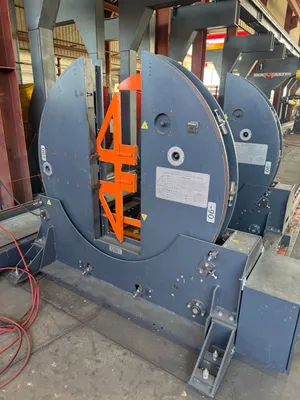

* 2 Sets of Rotators (with rails)

Robot & Power Source:

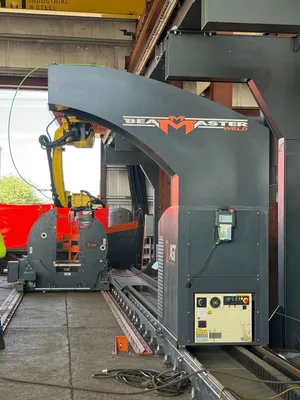

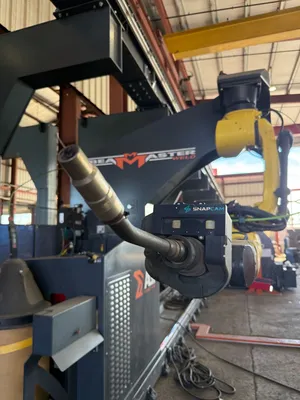

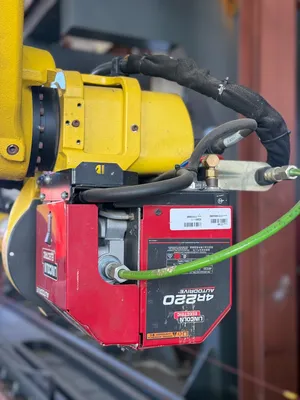

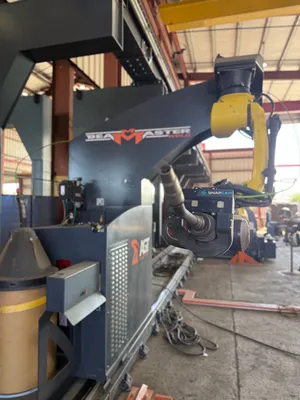

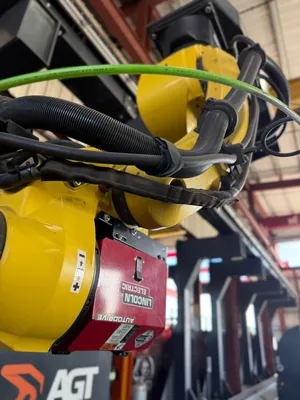

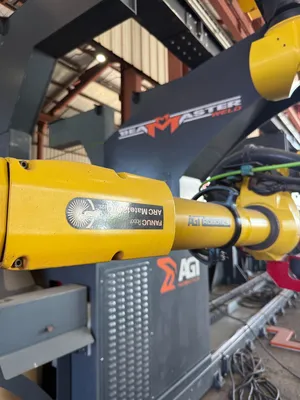

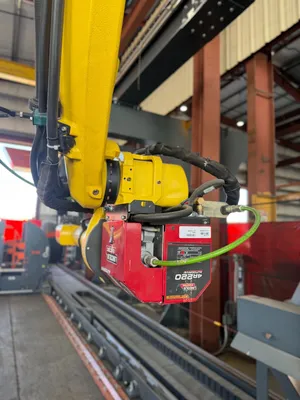

Robot: Fanuc Arcmate 120iD/12L

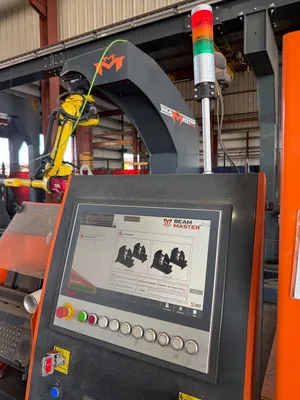

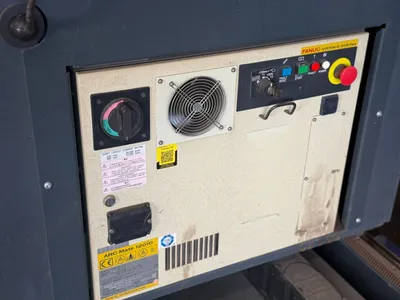

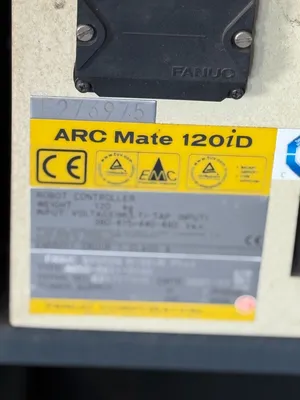

Controller: Fanuc R‑30iB

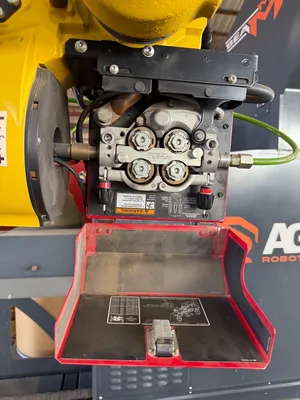

Welding Power Source: Lincoln PowerWave R450

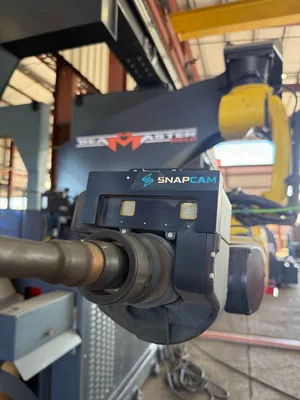

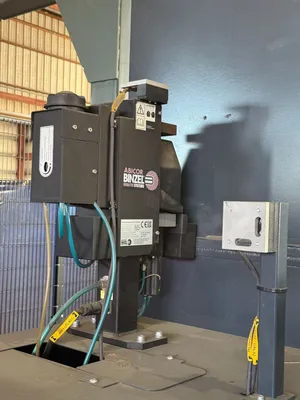

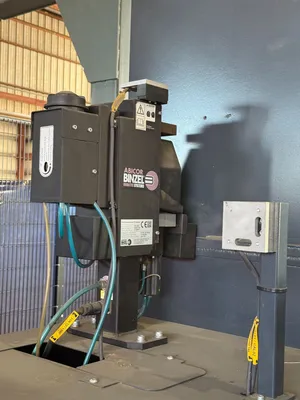

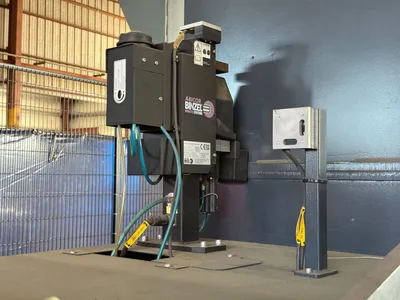

Torch: Binzel W500 water‑cooled

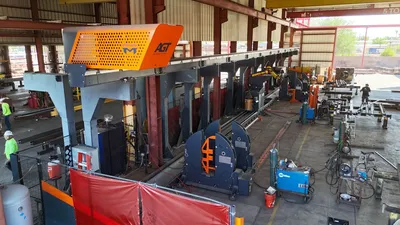

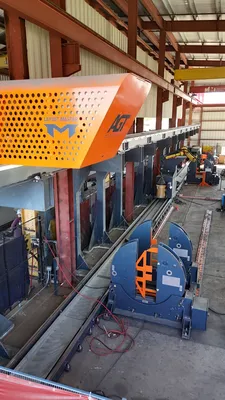

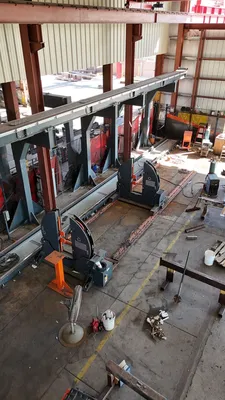

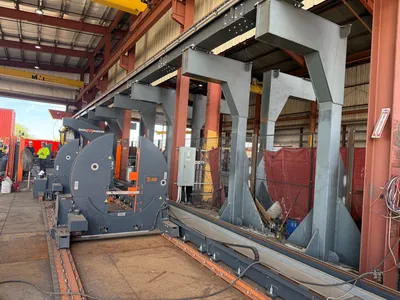

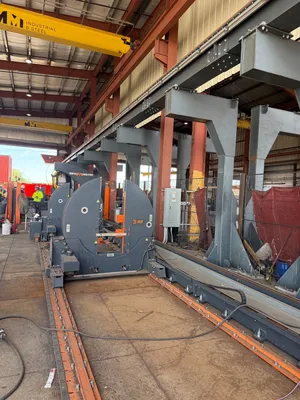

Material Handling / Zones:
Zone 1:
- 58 ft beam capacity
- 37 ft rotator positioning

Zone 2:
- 58 ft beam capacity
- 37 ft rotator positioning

Beam & HSS Size Capacity:

Max Beam Size: 93 ft × W48
Min Beam Size: 6.75 ft × W6×14
Max HSS Size: 93 ft × 20" × 20"
Min HSS Size: 12 ft × 6" × 6"

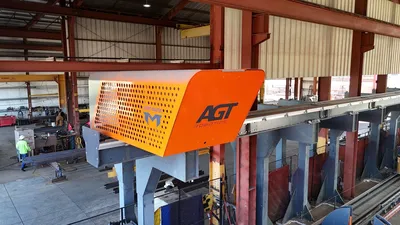

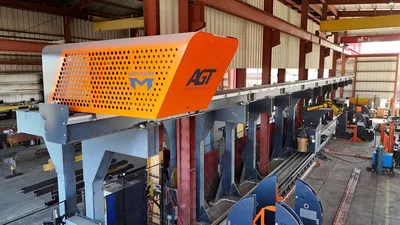

LayoutMaster Projection System:
Model: 50‑LM‑100
Function: Augmented‑reality fitting assistant

Width Range: 40 ft – 138 ft
Height: 12 ft

* Laser Color 4K Projector
* Servo-driven, rail-mounted (Length: 100 ft (30.5 m))
* Columns to support all rails (one column every 3 m)
* Projects in 3D or 2D
* Includes Cortex Software license and Tekla/SDS2/IFC plugins (Software licensing transfer may have additional cost)

[50-BM-RAIL12FT] Rail – Additional Robot Rail for BeamMaster Weld Challenger

* Robot Rail – additional 12-ft section
* Depending on the number of rails added, restrictions apply to cable lengths of components located on the cart welding source, etc.
