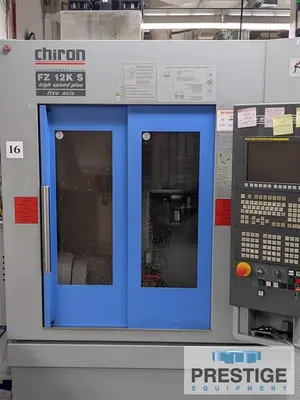

USED CHIRON FZ 12K S
Overview
Specifications
| X-Axis | 19.68" | 499.87 mm |
|---|---|---|
| Y-Axis | 15.74" | 399.8 mm |
| Z-Axis | 15.74" | 399.8 mm |
| Power | 24 hp | 17.9 kW |
| RPM | 40,000 RPM | 40,000 RPM |
CAPACITIES:
X-Axis: 19.68"
Y-Axis: 15.74"
Z-Axis: 15.74"
Milling Spindle Speed: 40,000 RPM
Milling Spindle Motor: 24 HP
Spindle Distance: 9.84"
Swivel Range: +/-120 Deg.
Milling/Turning Tool Taper: HSK A-40
Axis Acceleration (X-Axis): 10 m/s2
Axis Acceleration (Y-Axis): 15 m/s2
Axis Acceleratoin (Z-Axis): 20 m/s2
Rapid Feed: 75m/min
Equipped With:
Fanuc 31iA5 CNC Control

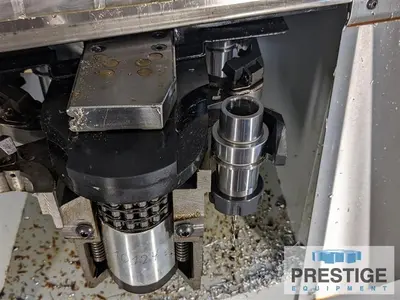

Automatic Tool Changer
Renishaw Tool & Work Probe
Coolant Thru Spindle
40,000 RPM Milling Spindle

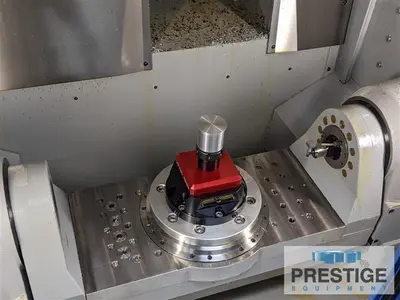

Integrated 2-Axis Rotary Table
Tool Life Monitoring
Chiron Thermo Control
Chiron Laser Control
Tool Breakage Monitoring
Stationary 3D Probing System
Tooling

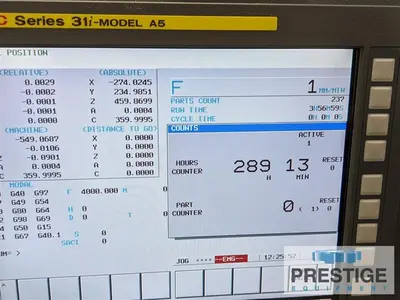

HOURS:
Like New, Only 289 Hours
NOTE:
Inspect in Plant Under Power
Features:
Fanuc 31iA5 CNC Control
Automatic Tool Changer
Renishaw Tool & Work Probe
Coolant Thru Spindle
40,000 RPM Milling Spindle
Integrated 2-Axis Rotary Table
Tooling
