| X-Axis | 220" | 5,588 mm |
| Y-Axis | 120" | 3,048 mm |
| Z-Axis | 40" | 1,016 mm |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 60 | 60 |
| Taper | CAT #50 | CAT #50 |
| Table-W | 118.11" | 3,000 mm |
| Table-L | 236.22" | 6,000 mm |
Specifications:
Table Travel, X-Axis: 220"
Ram Cross Travel, Y-Axis: 120"
Ram Stroke, Z-Axis: 40"

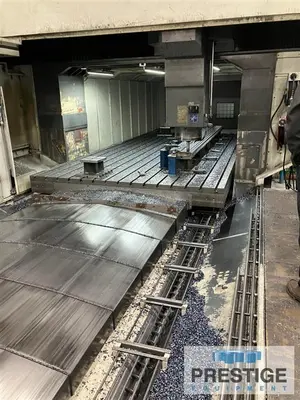

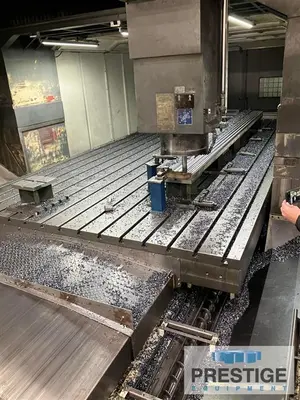

Table Size: 236.22" X 118.11"
Distance Between Columns: 122"
Spidnle Nose to Table, Max: 50.63"
Spindel Nose to Table, Min: 20.63"
Spindle Speeds, Max: 6000 RPM
Spindle Ranges, Geared: 2
Spindle Taper: CAT #50
Feed Rates: X,Y,Z AXES .04-394 IPM
Table Load Capacity: 55,110 LBS
Machine Weight: 153,000 LBS
Equipped With:

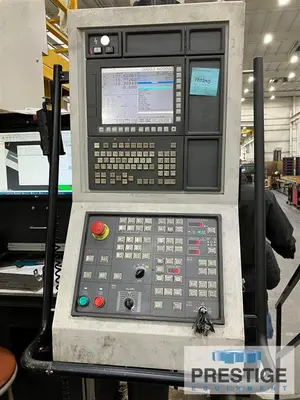

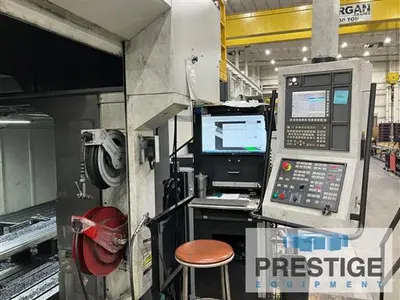

Fanuc 200FB CNC Controls
60-Station Automatic Toolchanger
Automatic Attachment Changer

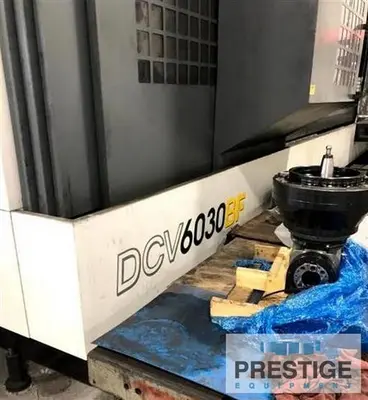

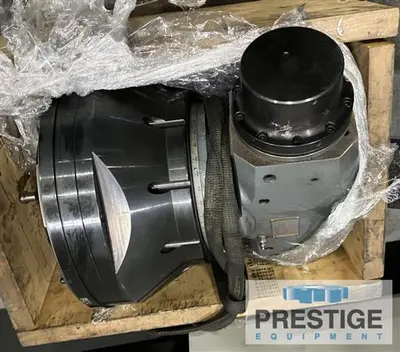

90 Degree Auto Indexing Right Angle Head (Rebuilt)

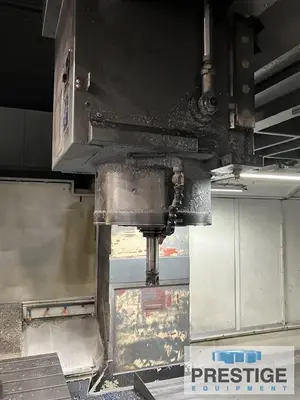

High Torque Spindle
Full Chip Enclosure with Roof
2GB Data Server
High Speed Skip Function
250 MM Additional Column Height
Heidenhain Scales on X, Y & Z
Through Spindle Coolant with Filtration
Spindle Load Compensation
Marposs Gauge Tool Laser Measurement
Renishaw Touch Probe
Chip Conveyor
Spindle Chiller
Steel Sliding Way Covers
Note:
Under Power In Midwest Plant!
Features:
Fanuc 200FB CNC Controls
60-Station Automatic Toolchanger
Automatic Attachment Changer
90 Degree Auto Indexing Right Angle Head (Rebuilt)
High Torque Spindle
Full Chip Enclosure with Roof
2GB Data Server
High Speed Skip Function
250 MM Additional Column Height
Heidenhain Scales on X, Y & Z
Through Spindle Coolant with Filtration
Spindle Load Compensation
Marposs Gauge Tool Laser Measurement
Renishaw Touch Probe
Chip Conveyor
Spindle Chiller
Steel Sliding Way Covers
