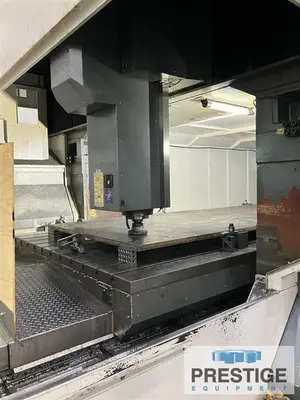

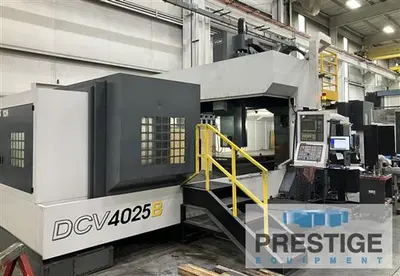

USED 2012 YCM 4025B
Specifications
| X-Axis | 160" | 4,064 mm |
|---|---|---|
| Y-Axis | 98" | 2,489.2 mm |
| Z-Axis | 40" | 1,016 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 4,500 RPM | 4,500 RPM |
| # ATC | 120 | 120 |
| Taper | CAT 50 | CAT 50 |
| Table-W | 94.5" | 2,400.3 mm |
| Table-L | 158" | 4,013.2 mm |
SPECIFICATION:
Tabel Travel, X-Axis: 160"
Head Cross Travel: 98"
Ram Stoke, Z-Axis: 40"

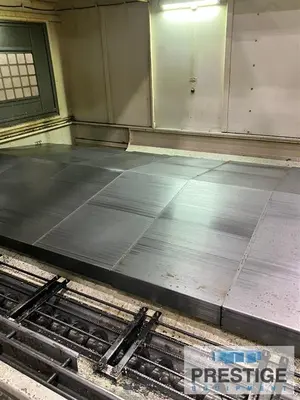

Table Size: 158" x 94.5"
Table Weight Capacity: 44,092 LBS.
Feed Rate, X,Y Z: 472/591/591 IPM
Feed Rates,: 0.04~394 IPM
Spindle Speeds, Max: 4500 RPM
Spindle Drive: 25/30 HP
Spindle Taper: CAT 50
Automatic Tool Chnager: 120 ATC
Distance Between Columns: 107.9"
Max Tool Weight: 44.1 Lbs.
Max Tool DImensions: 4.92" x 13.78"
Spindle Nose to Table Top: 7.87~47.87"
Machine Weight: 101,412 Lbs.
Machine Electrics, Volts: 440/220
Equipped With:

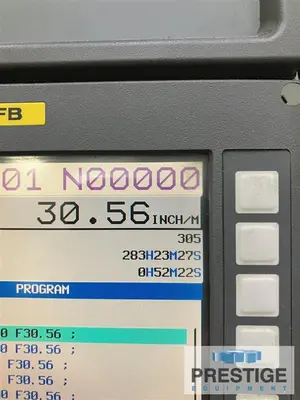

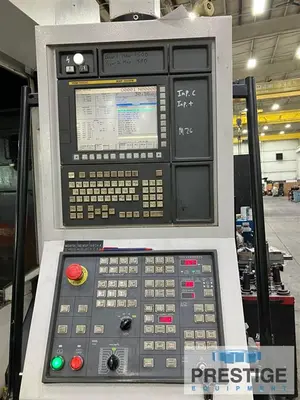

MBX 200FB (FANUC 31i)CNC Control

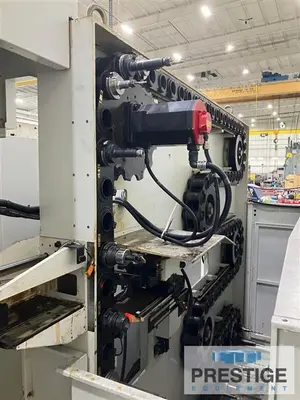

120-Station Automatic Tool Changer
Through Spindle Coolant
Ethernet
High Speed Machining
Data Server
Spindle Chiller
Spindle Thermal Compensation
Random Method Tool Selection on ATC

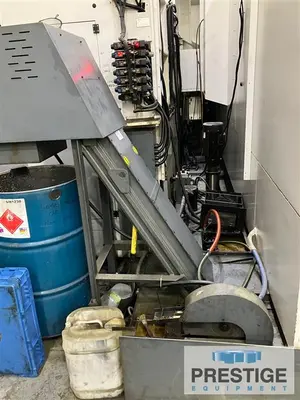

Chip Conveyor
Features:
MBX 200FB (FANUC 31i)CNC Control
120-Station Automatic Tool Changer
Through Spindle Coolant
Ethernet
High Speed Machining
Data Server
Spindle Chiller
Spindle Thermal Compensation
Random Method Tool Selection on ATC
Chip Conveyor
