| X-Axis | 165.35" | 4,199.9 mm |
| Y-Axis | 90.55" | 2,300 mm |
| Z-Axis | 36.22" | 919.99 mm |
| Power | 35 hp | 26.1 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 40 | 40 |
| Taper | #50 | #50 |
| Table-W | 80.7" | 2,049.8 mm |
| Table-L | 165.35" | 4,199.9 mm |
SPECIFICATIONS:
X-Axis, Table Travel: 165.35"
Y-Axis, Spindle Head Travel: 90.55"
Z-Axis, Vertical Travel: 36.22"
Distance Between Columns: 94.48"
Minimum Distance Spindle to Table: 5.9"
Maximum Distance Spindle to Table: 42.12"

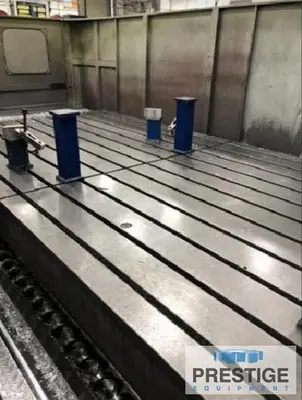

Table Size: 80.70" x 165.35"
Table Load Capacity: 28,600 lbs
Spindle Taper: #50
Spindle Speeds (2-Gear Ranges): 6000 RPM
Spindle Motor: 35 HP
Rapid Feed Rates X,Y,Z Axis: 590 IPM
Cutting Feed Rate: 275 IPM
Machine Weight: 86,680 Lbs
Equipped With:

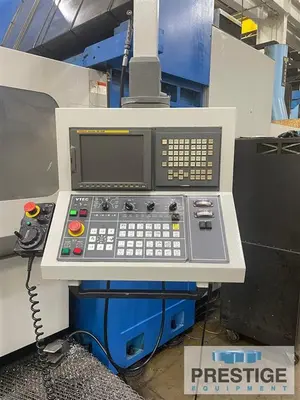

FANUC 18iMB CNC Control
40 Station Automatic Tool Changer
Box Way Construction

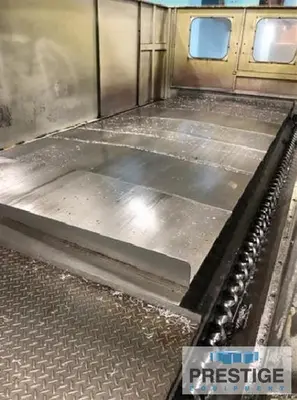

Telescopic Steel Way Covers on All Axes
Spindle Chiller

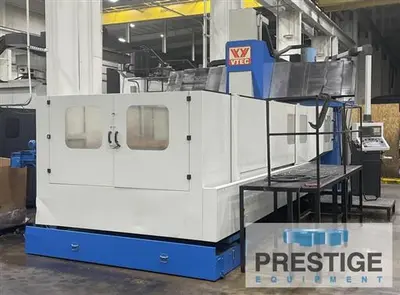

Full Splash Guards

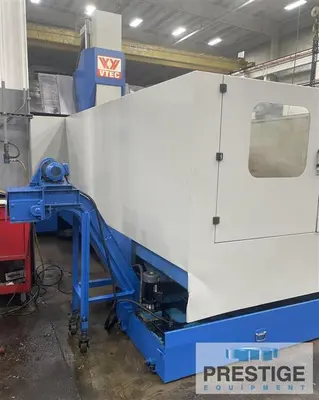

Chip Conveyor
NOTE:
New OEM Spindle in 2024!
New Ball Screws on X & Z Axis November 2025
All New Thrust Bearing X & Z in November 2025
Inspect Under Power in Midwest Plant!
Features:
FANUC 18iMB CNC Control
40 Station Automatic Tool Changer
New OEM Spindle in 2024!
New Ball Screws on X & Z Axis November 2025
All New Thrust Bearing X & Z in November 2025
