USED ASQUITH MDB-300

SPECIFICATION:
Table Dimensions: 400" x 160"
X-Axis Travel: 393"
Y-Axis Travel: 157"
Z-Axis Travel: 50"
Distance Between Columns: 160"
Spindle Speed: 4000 RPM
Spindle Taper: #50
Spindle Quill Diameter: 11"
Height Under Rail: 60"
Electrics: 440V/3Ph/60Hz

Equipped With:

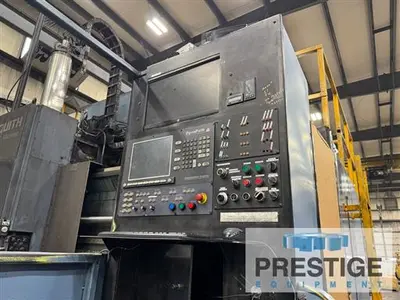

Delta Dynapath CNC Control

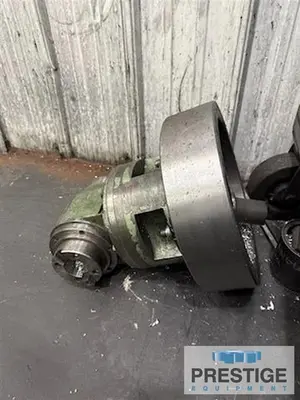

Right Angle Head Attachment
Baldor Servo Drives
Siemens Spindle Drive
Dual Chip Conveyors

NOTE:
Inspect in Plant Under Power

Features:
Delta Dynapath CNC Control

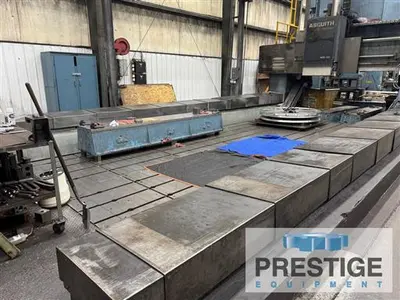

400" x 160" T-Slotted Floor Plates
Right Angle Head Attachment
