| X-Axis | 120.5" | 3,060.7 mm |
| Y-Axis | 61.4" | 1,559.6 mm |
| Z-Axis | 30.7" | 779.78 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 40 | 40 |
| Taper | CAT 50 | CAT 50 |
| Table-W | 57.1" | 1,450.3 mm |
| Table-L | 122" | 3,098.8 mm |
SPECIFICATIONS:
X-Axis Travel: 120.5"
Y-Axis Travel: 61.4"
Z-Axis Travel: 30.7"
Distance Between Columns: 87"
Table Size: 122" x 57.1"
Table Weight Capacity: 17,636 Lbs
Spindle Speeds: 6000 RPM
Spindle Motor: 25 HP
Spindle Taper: CAT 50
Rapid Traverse XYZ: 472 IPM
Approximate Machine Weight: 58,550 Lbs.
Equipped With:

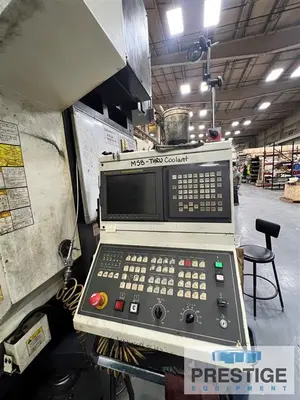

Fanuc 18iMB CNC Control
40-Station Automatic Tool Changer
Through Spindle Coolant
Chip Conveyor
Coolant Tank

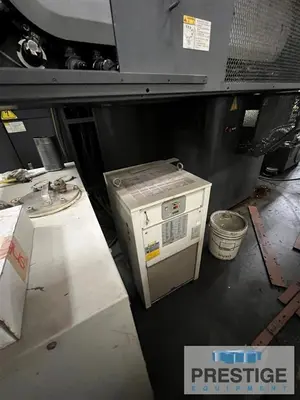

Chiller
NOTE:
Inspect In Plant Under Power
Features:
Fanuc 18iMB CNC Control
40-Station Automatic Tool Changer
Through Spindle Coolant
Chip Conveyor
Coolant Tank
Chiller
